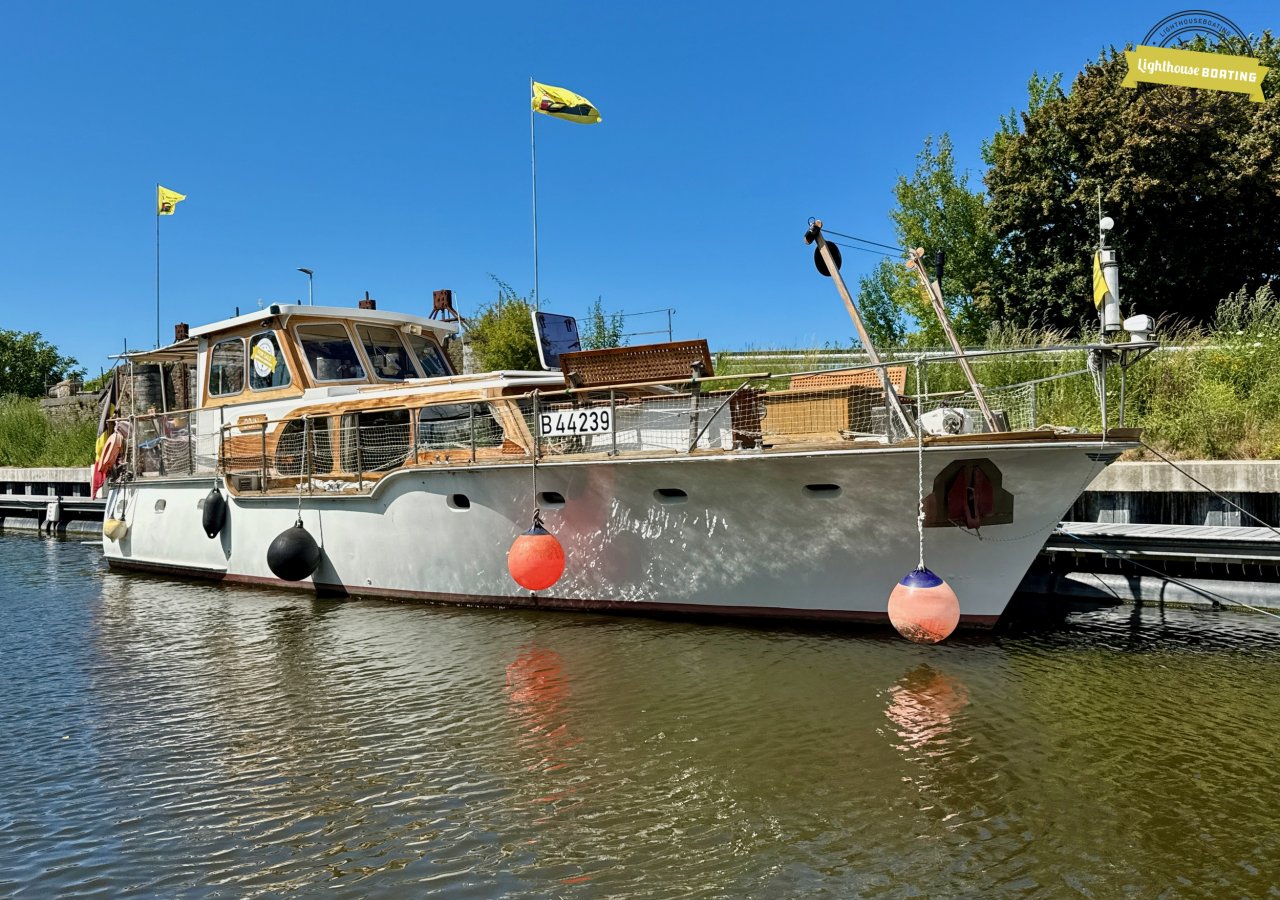

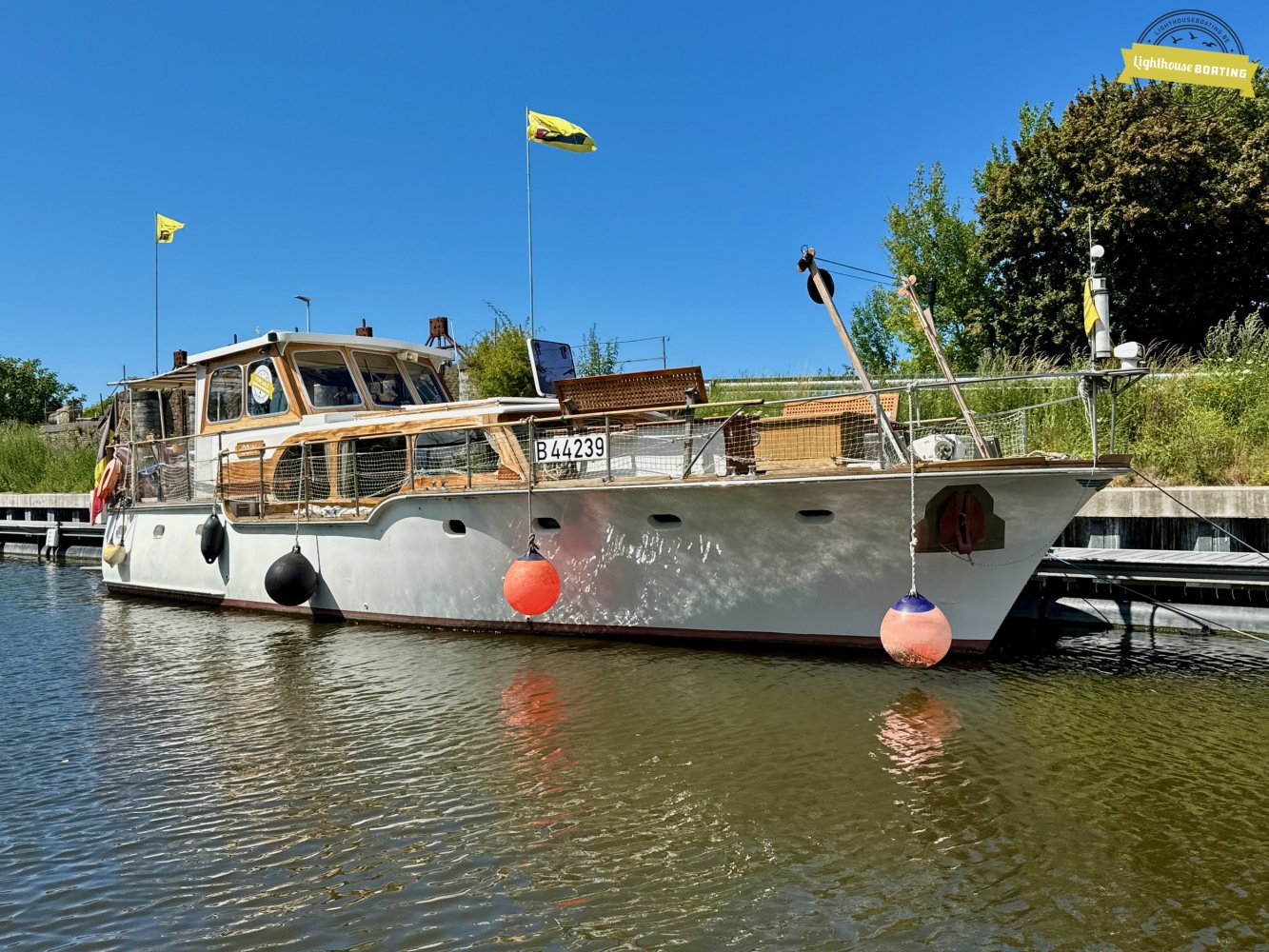

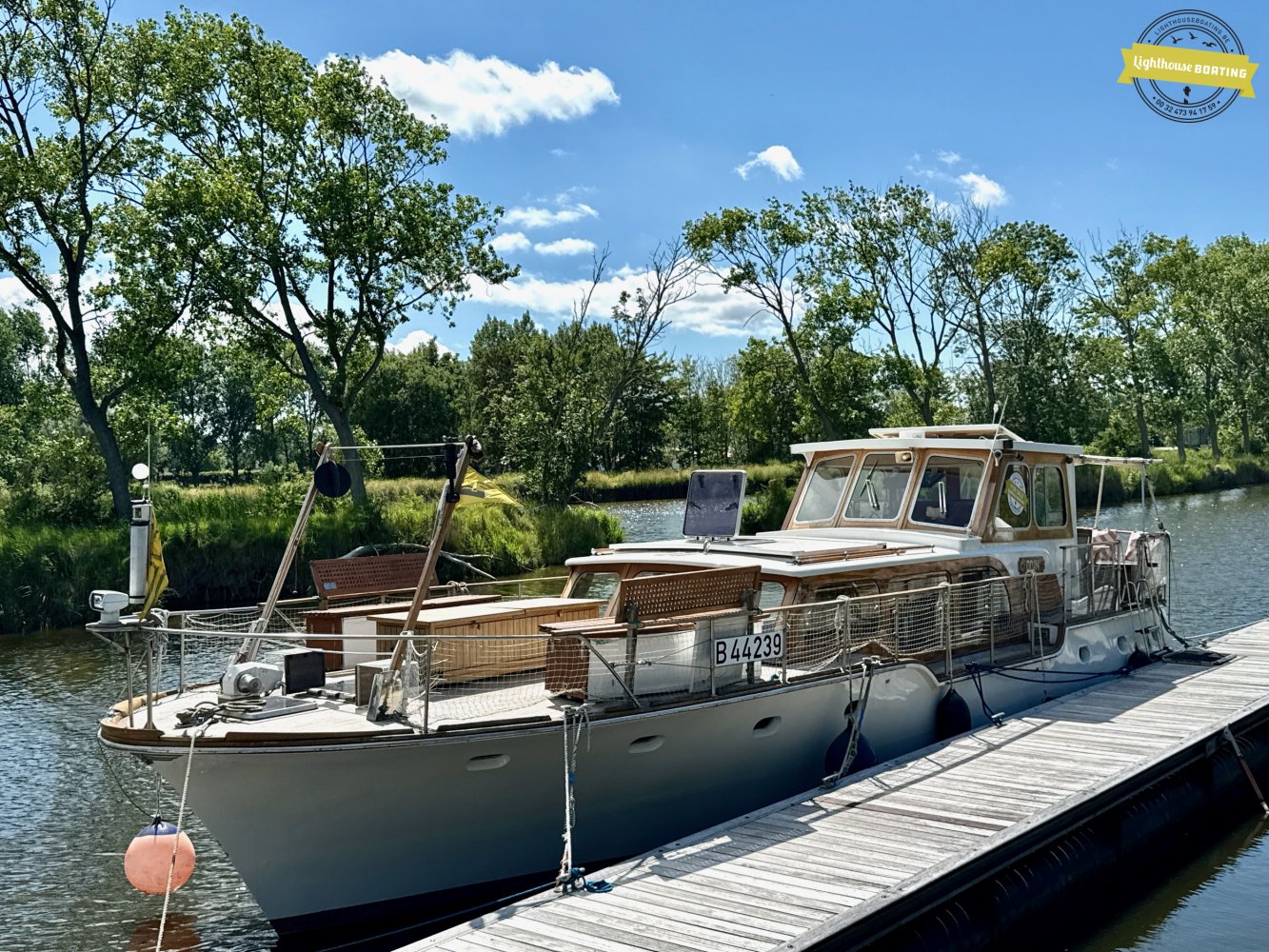

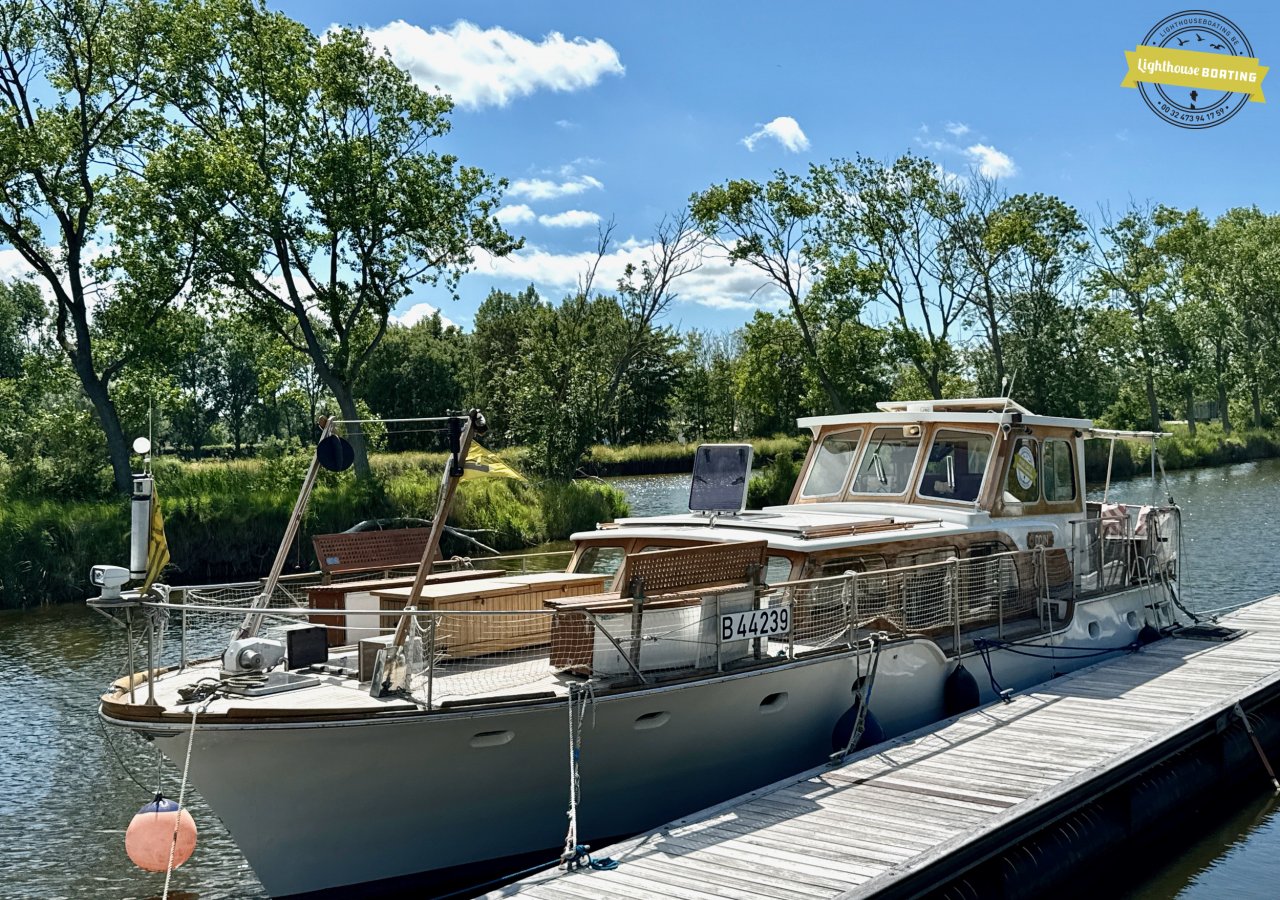

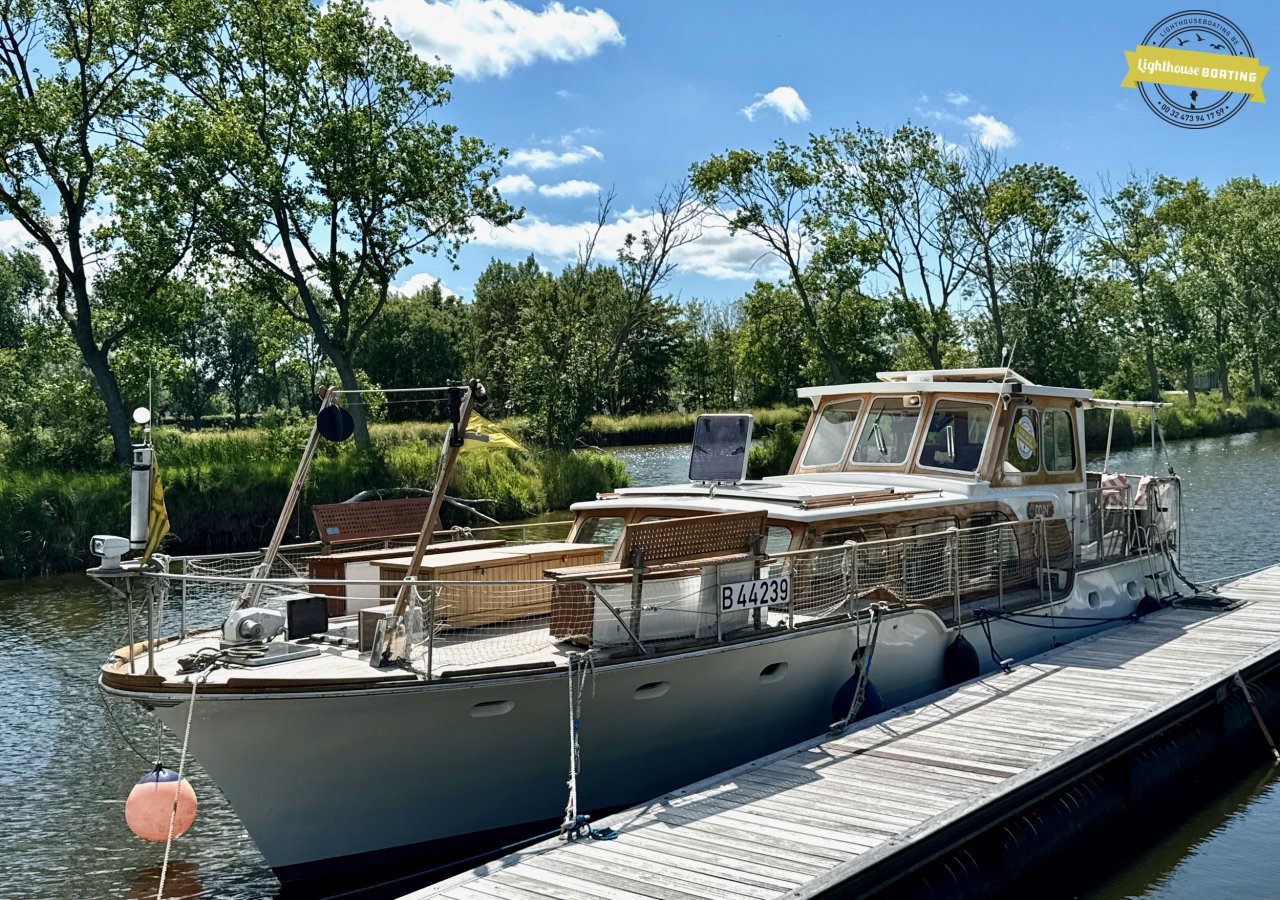

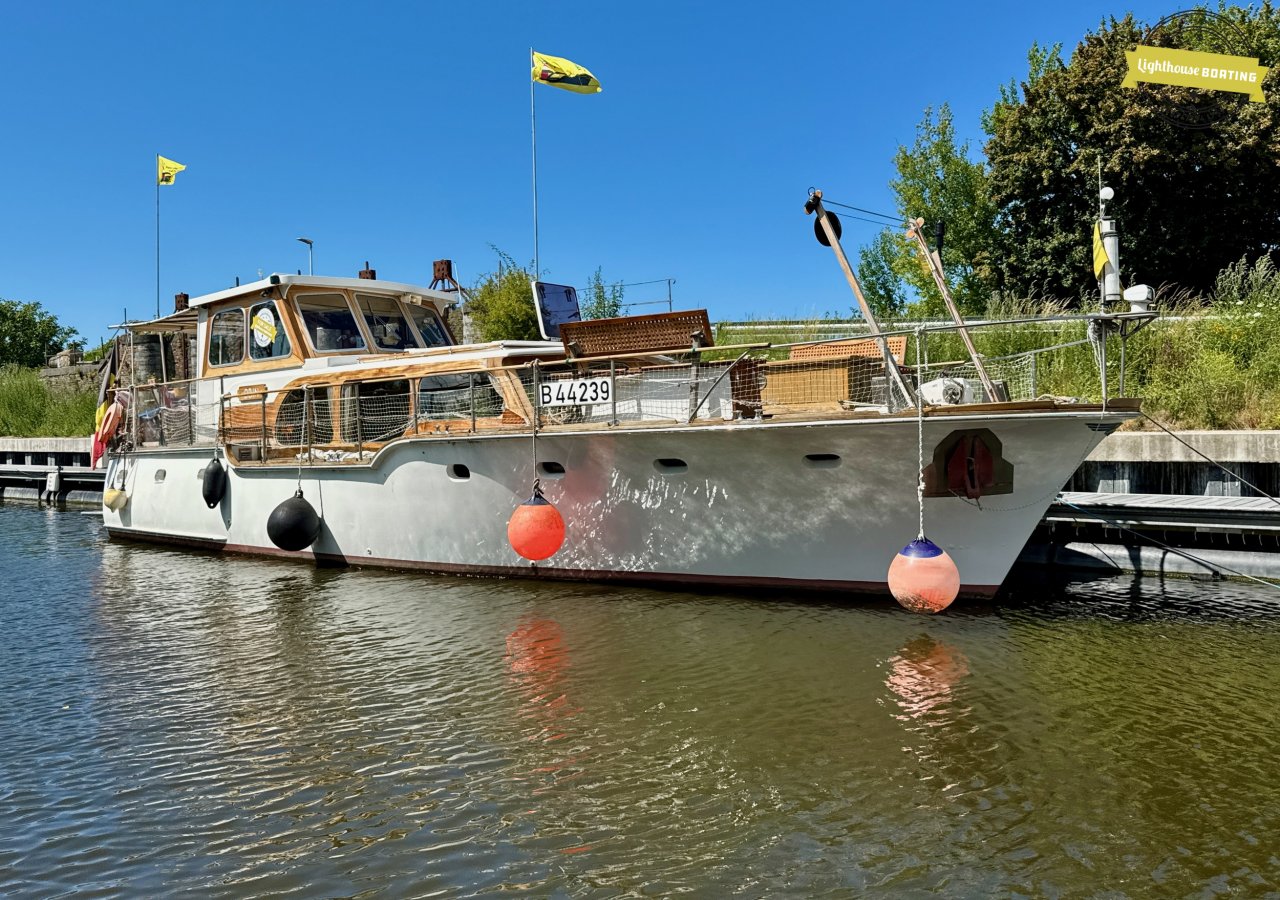

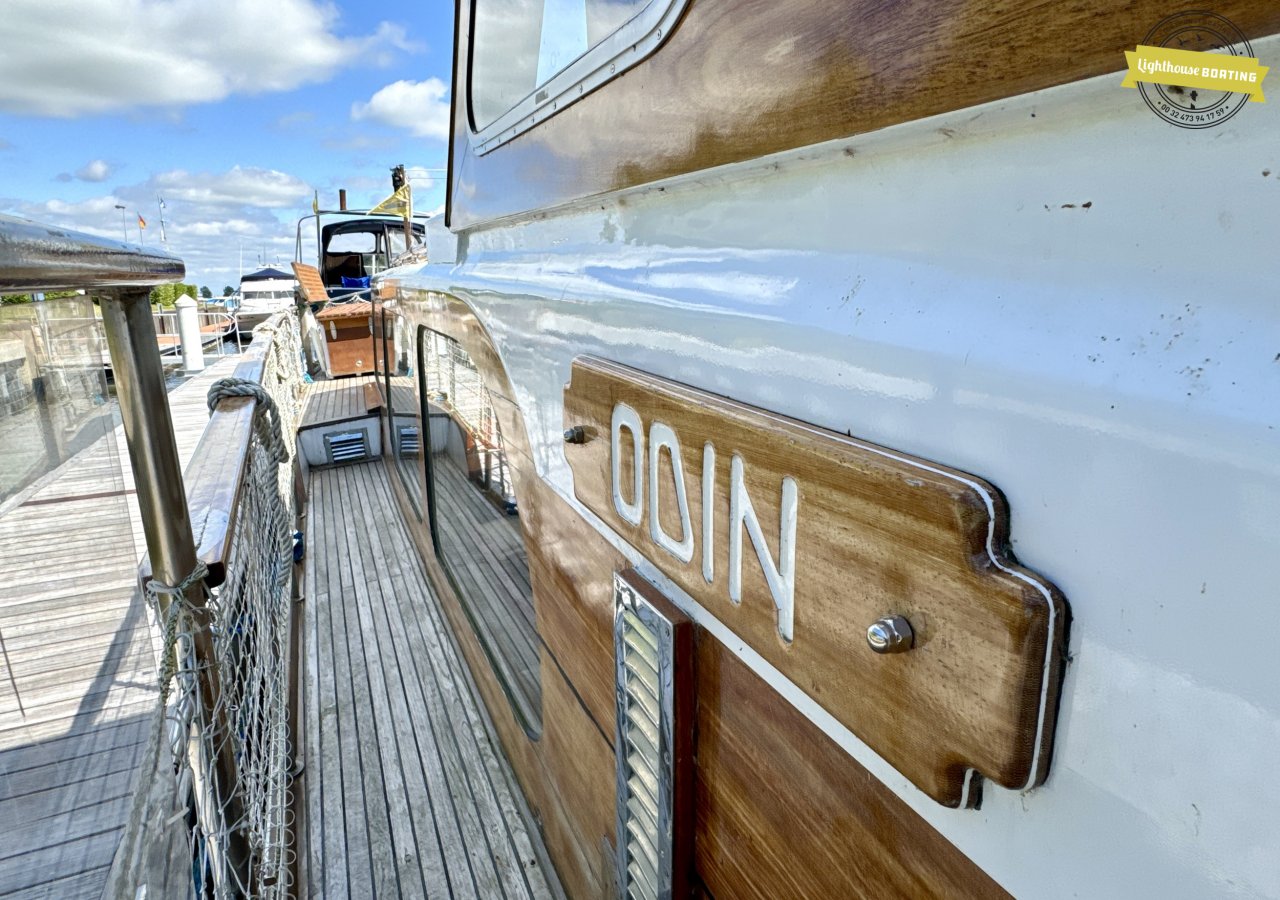

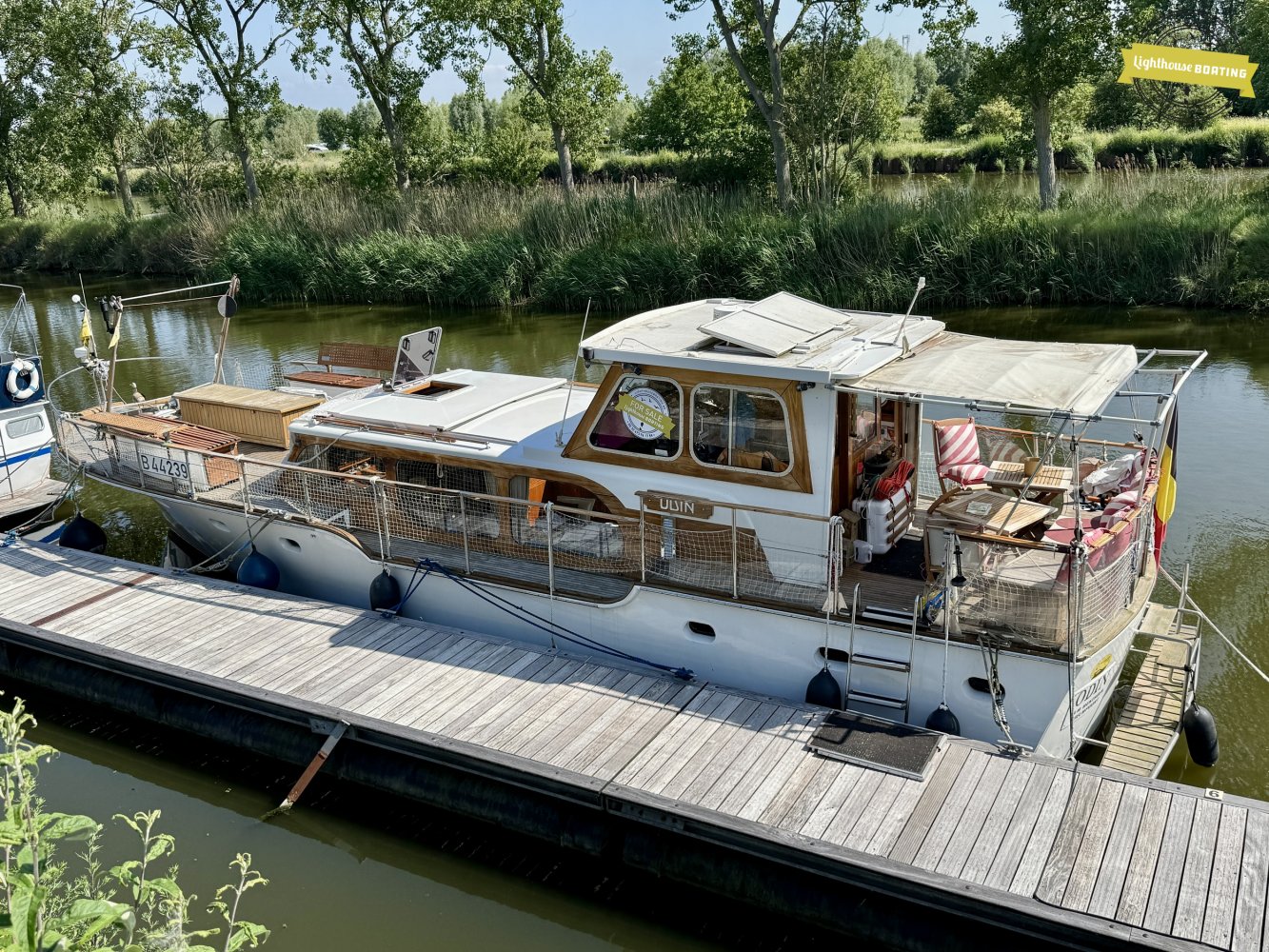

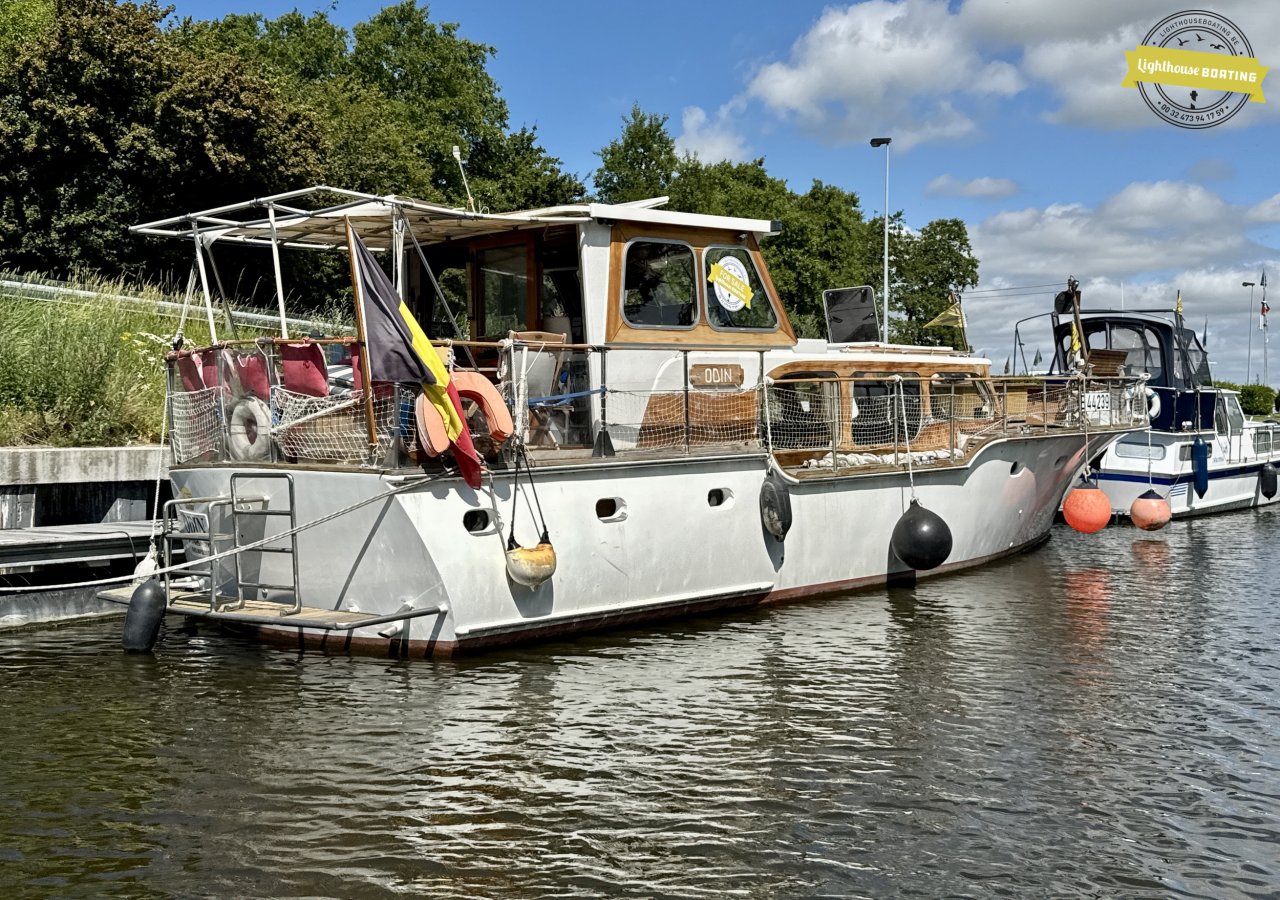

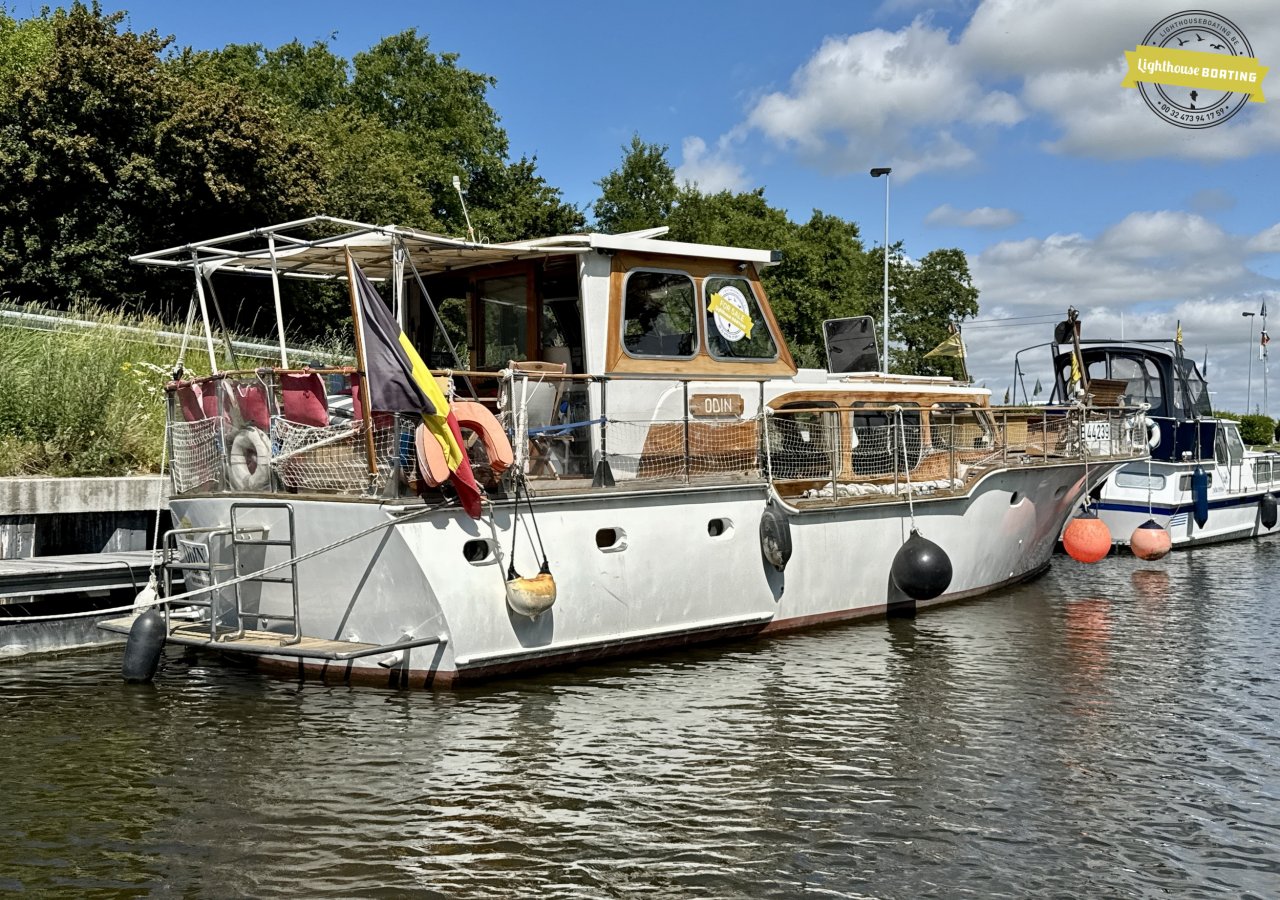

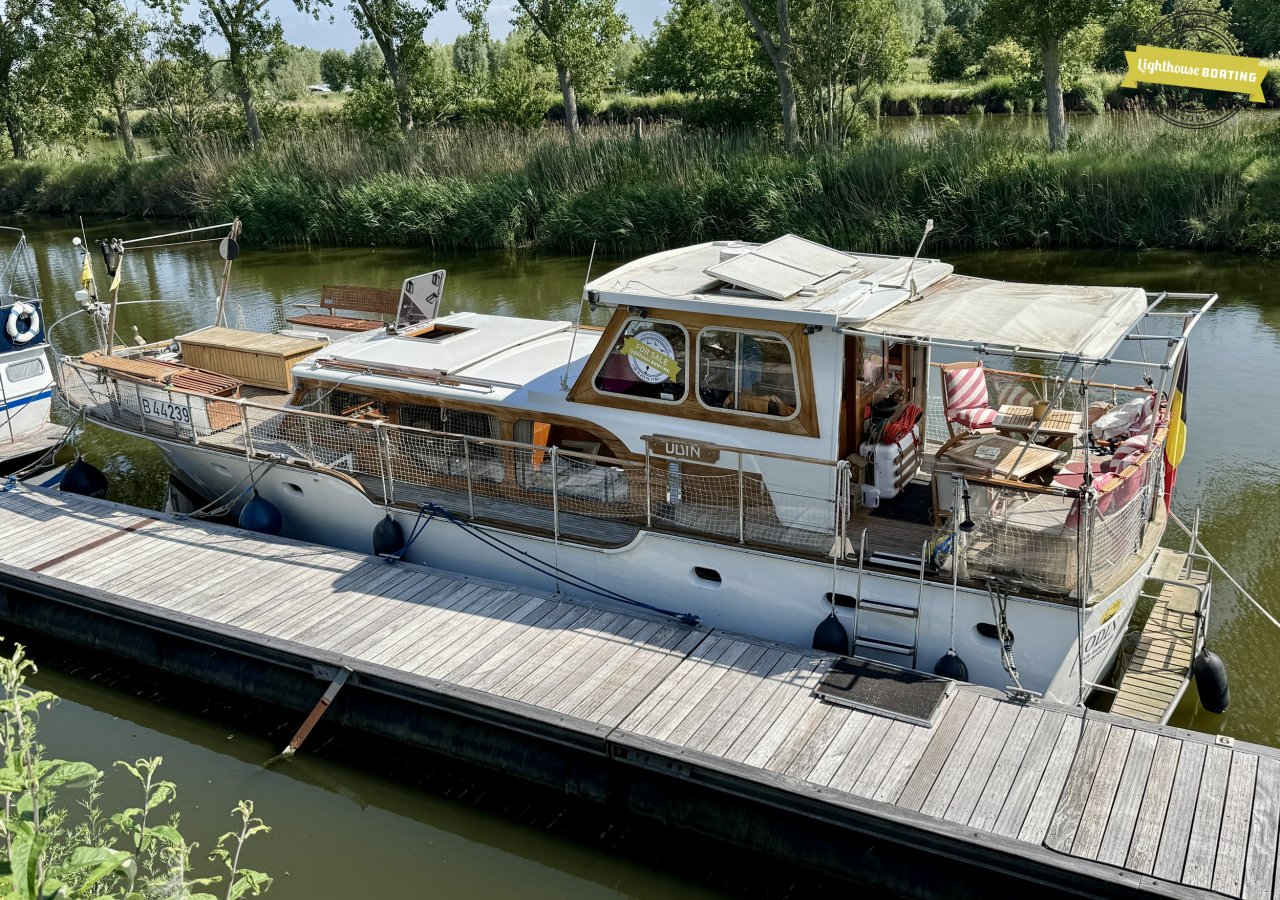

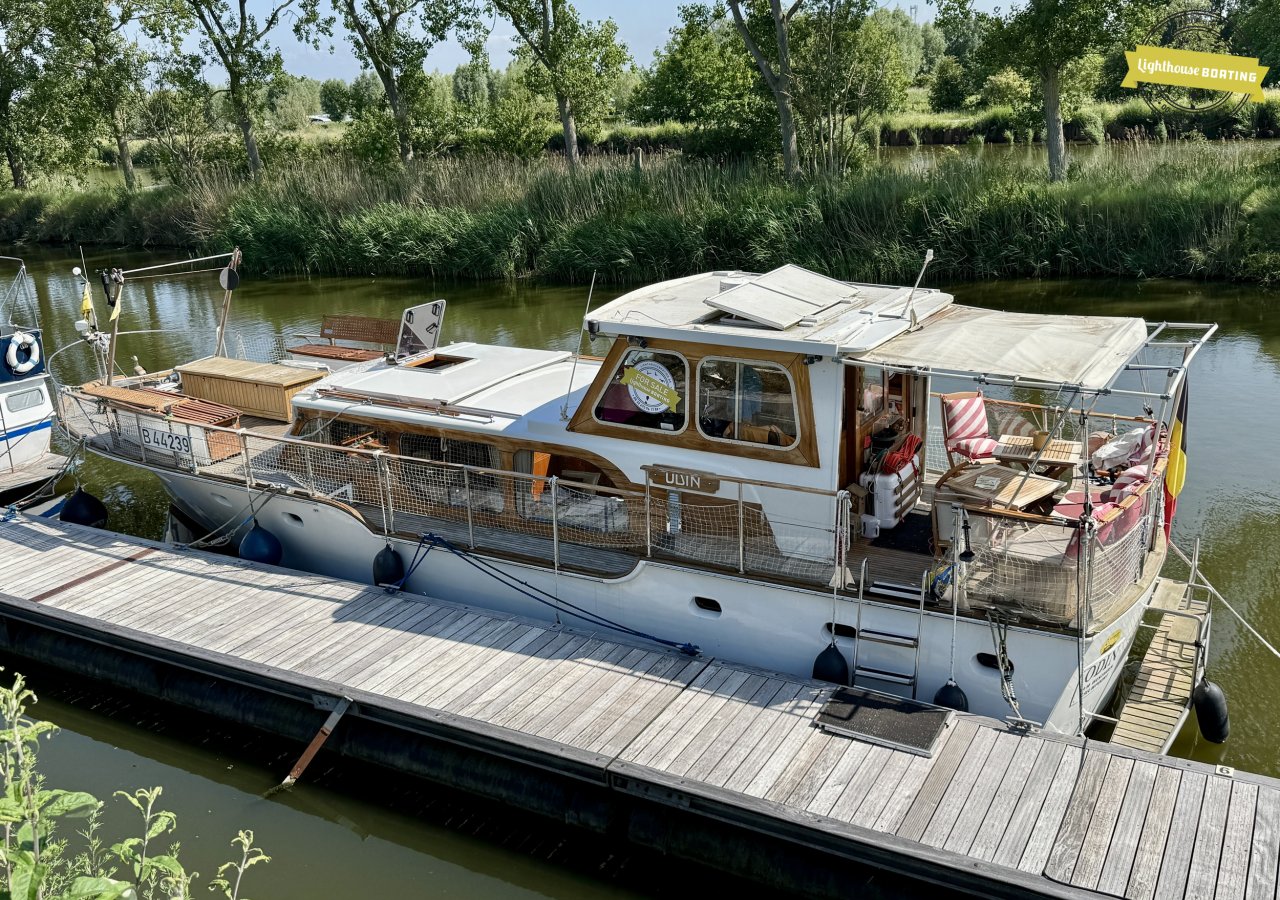

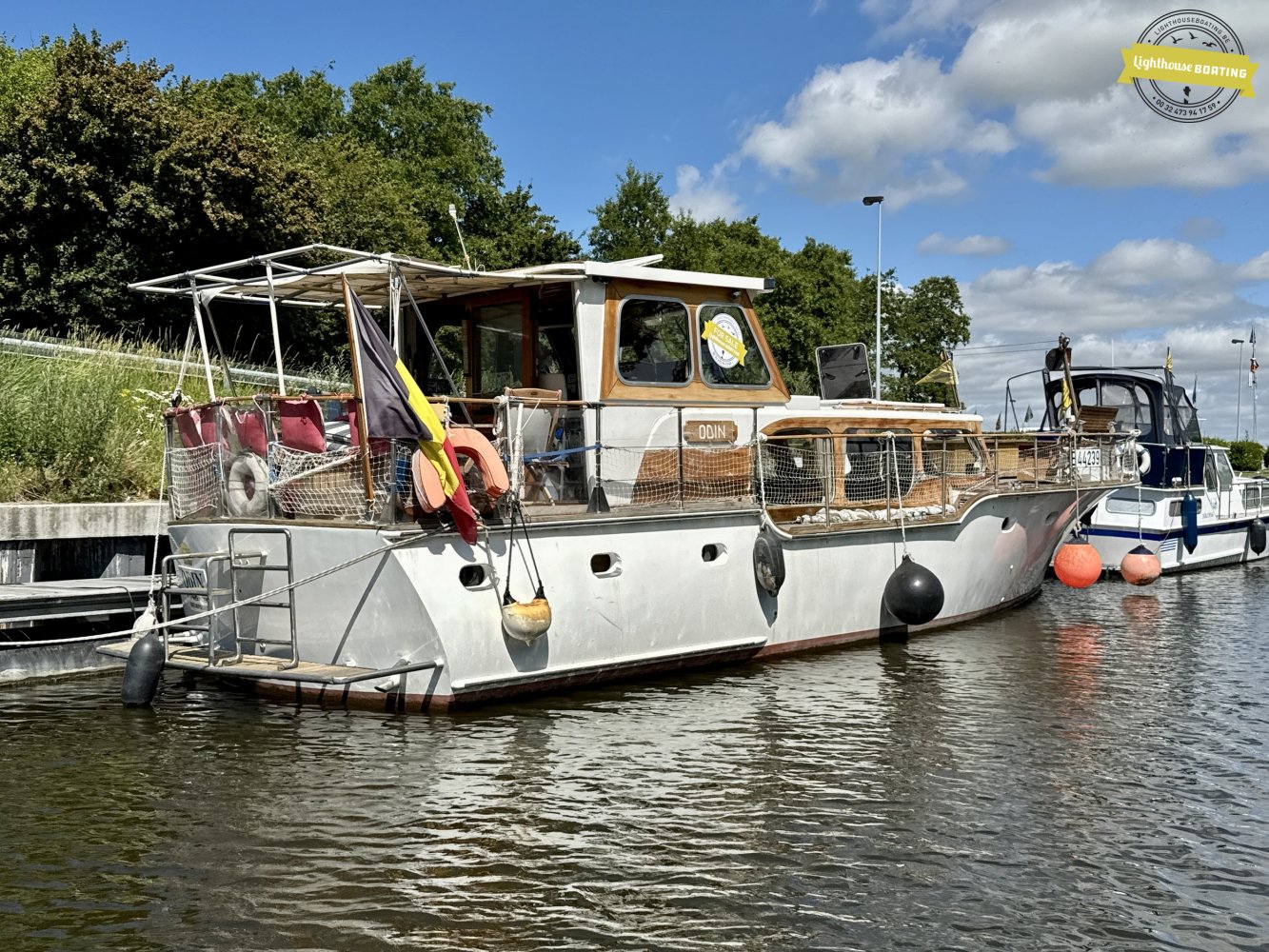

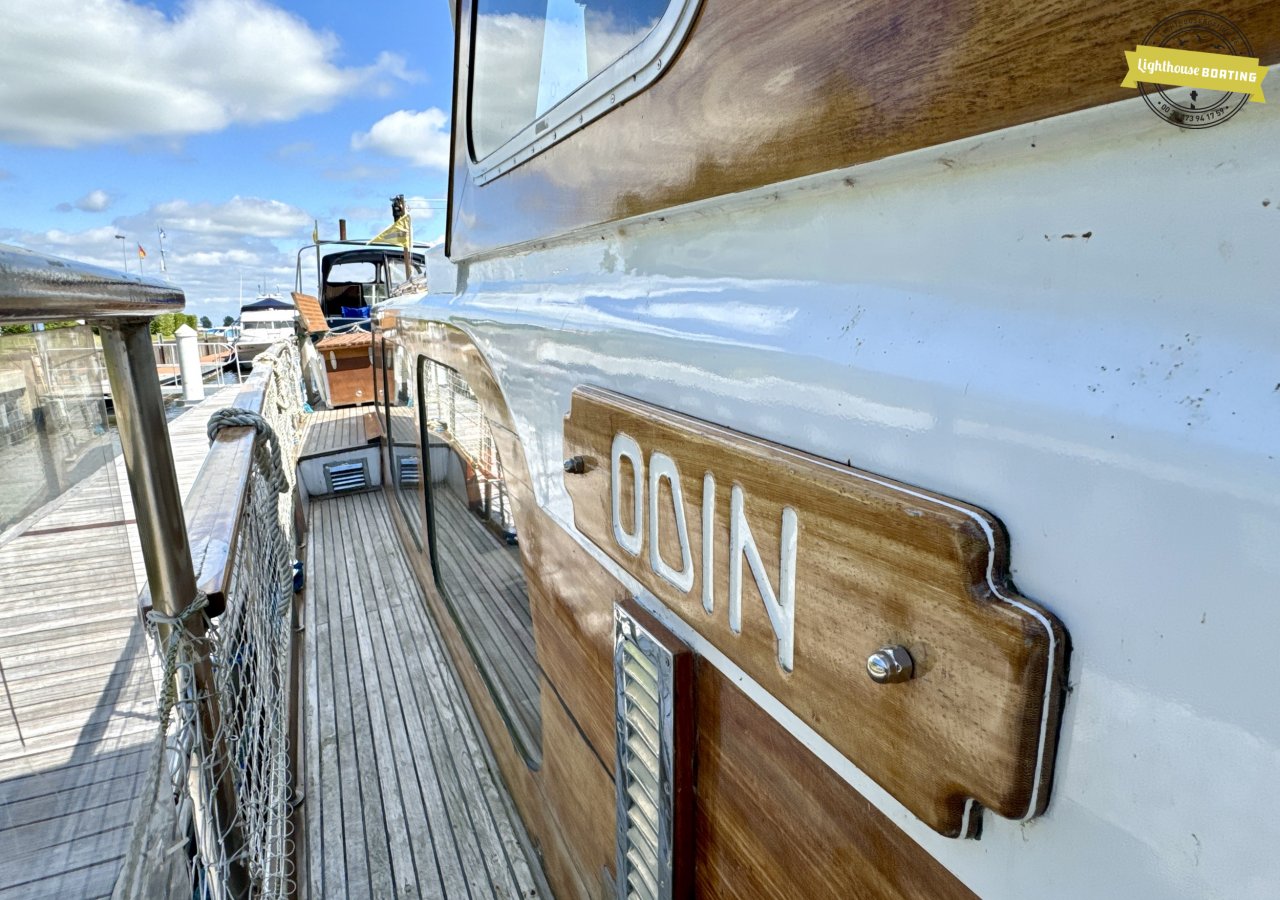

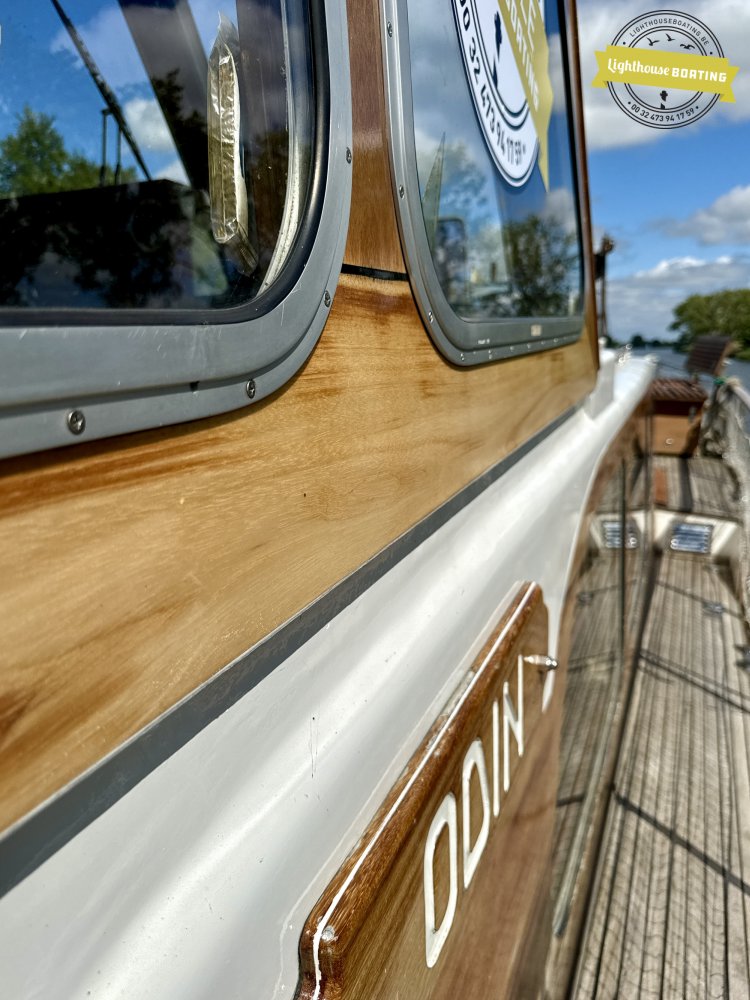

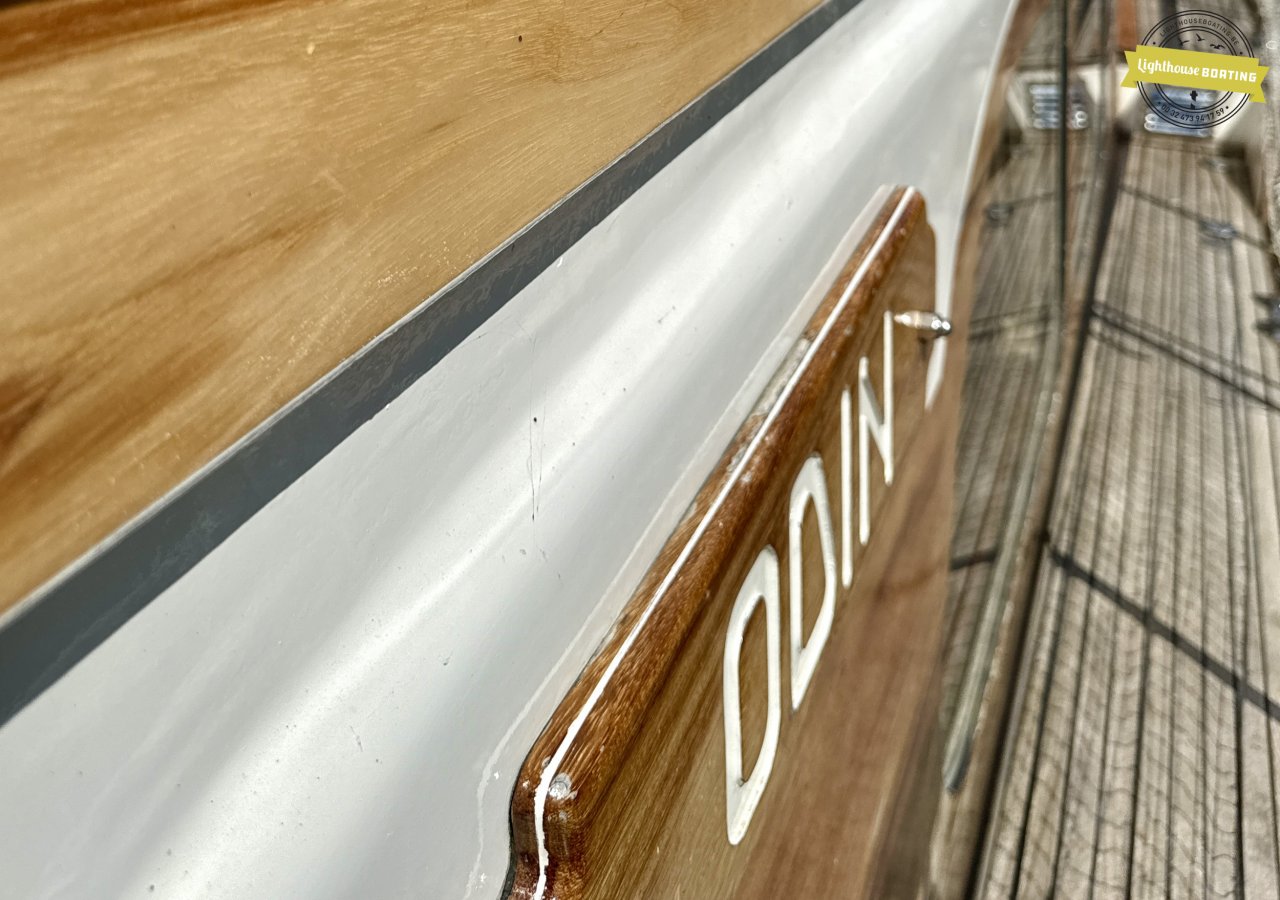

Super Van Craft 1400 AK , "Odin"
More information coming soon!
General:
Designer:
Klaassen
Shipyard:
Klaassen & Zoon

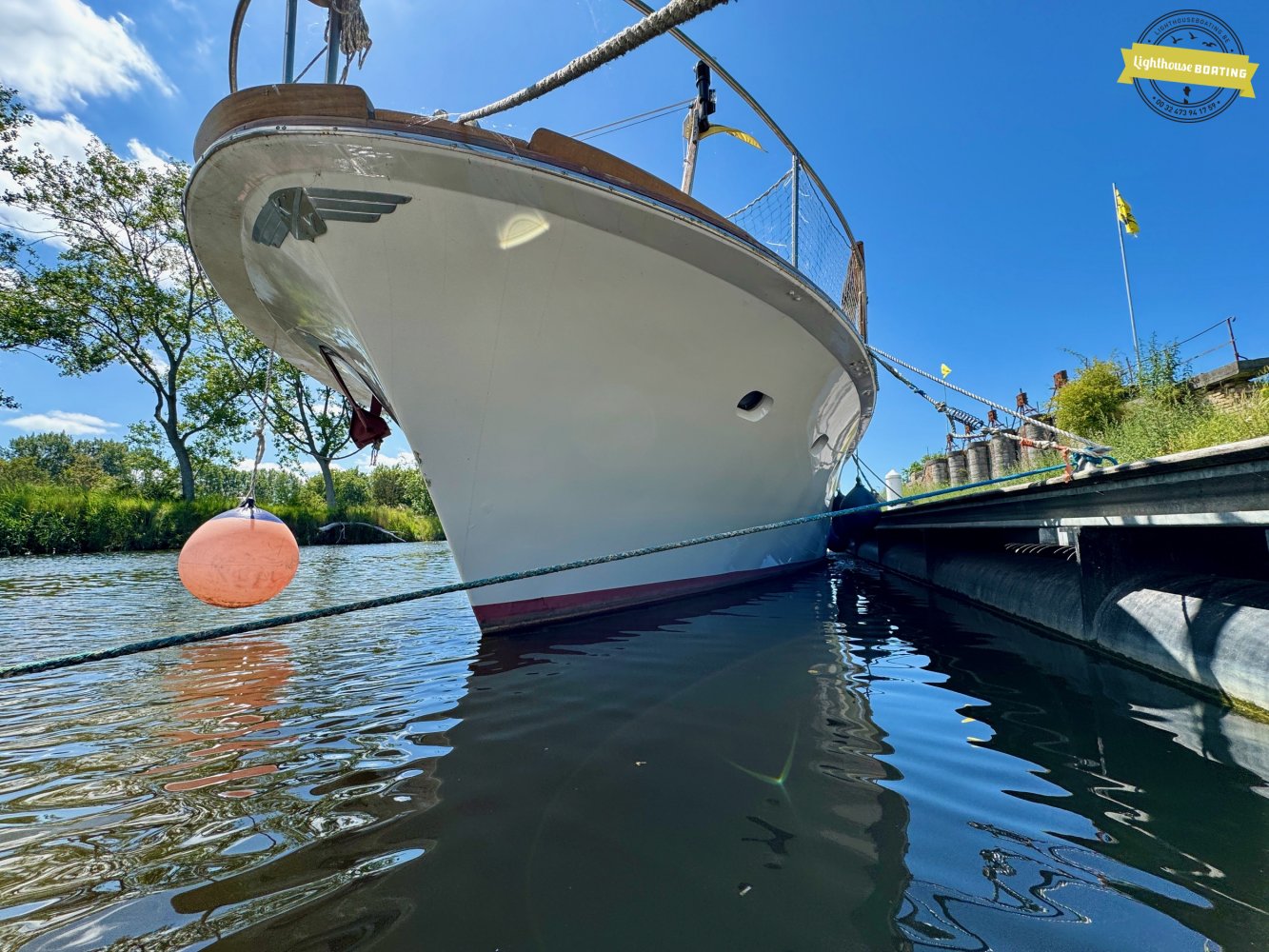

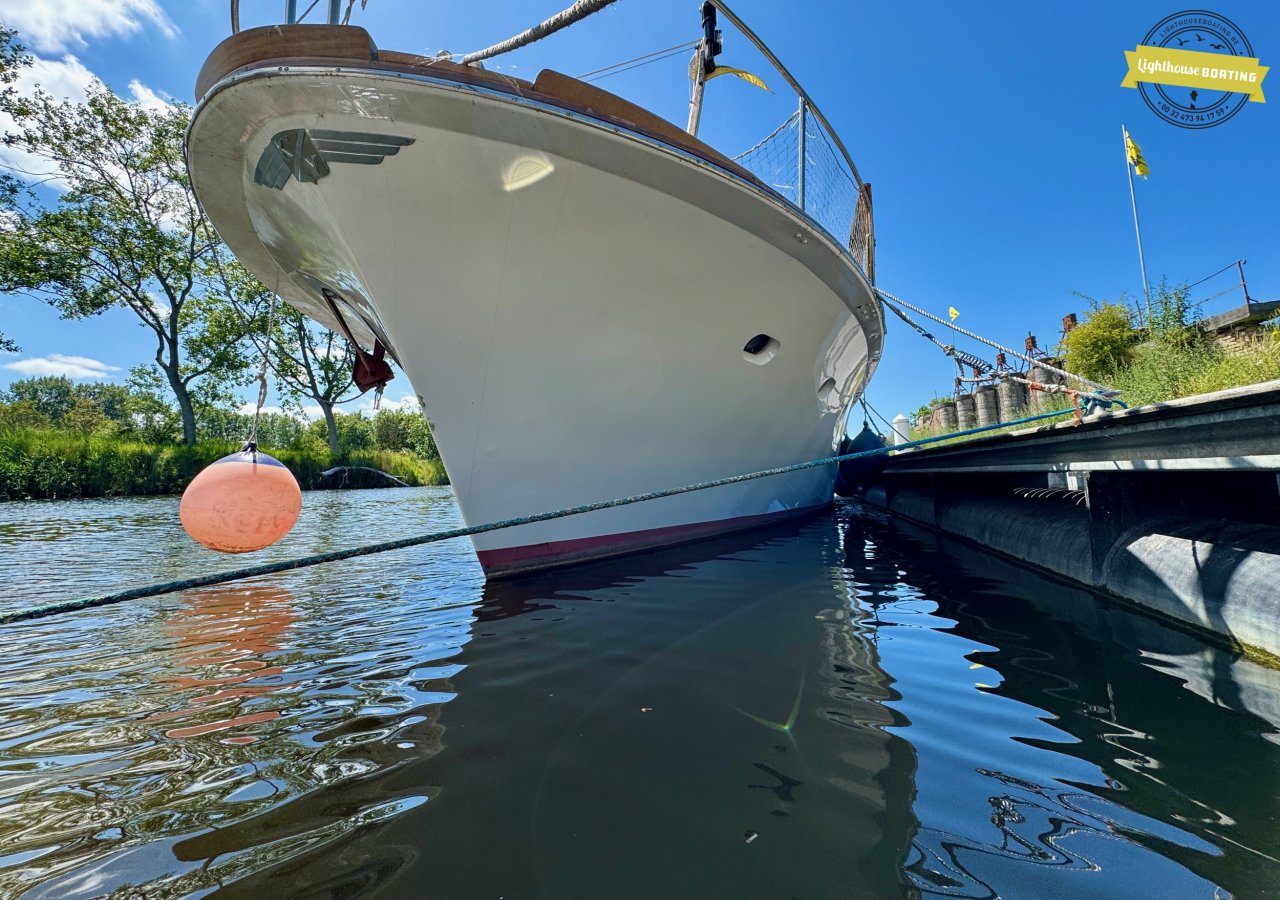

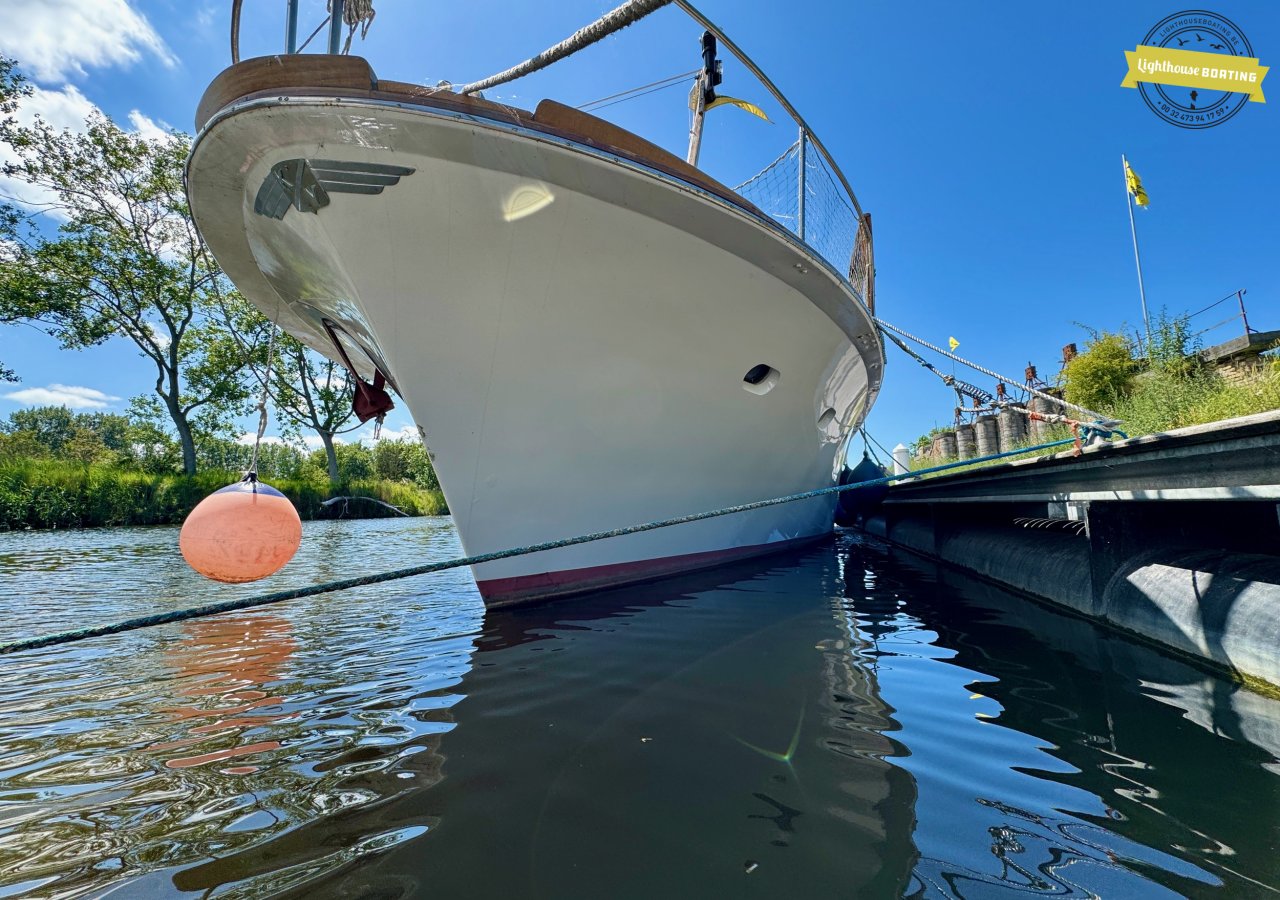

Hull shape:
V-bottom
Hull colour:
White

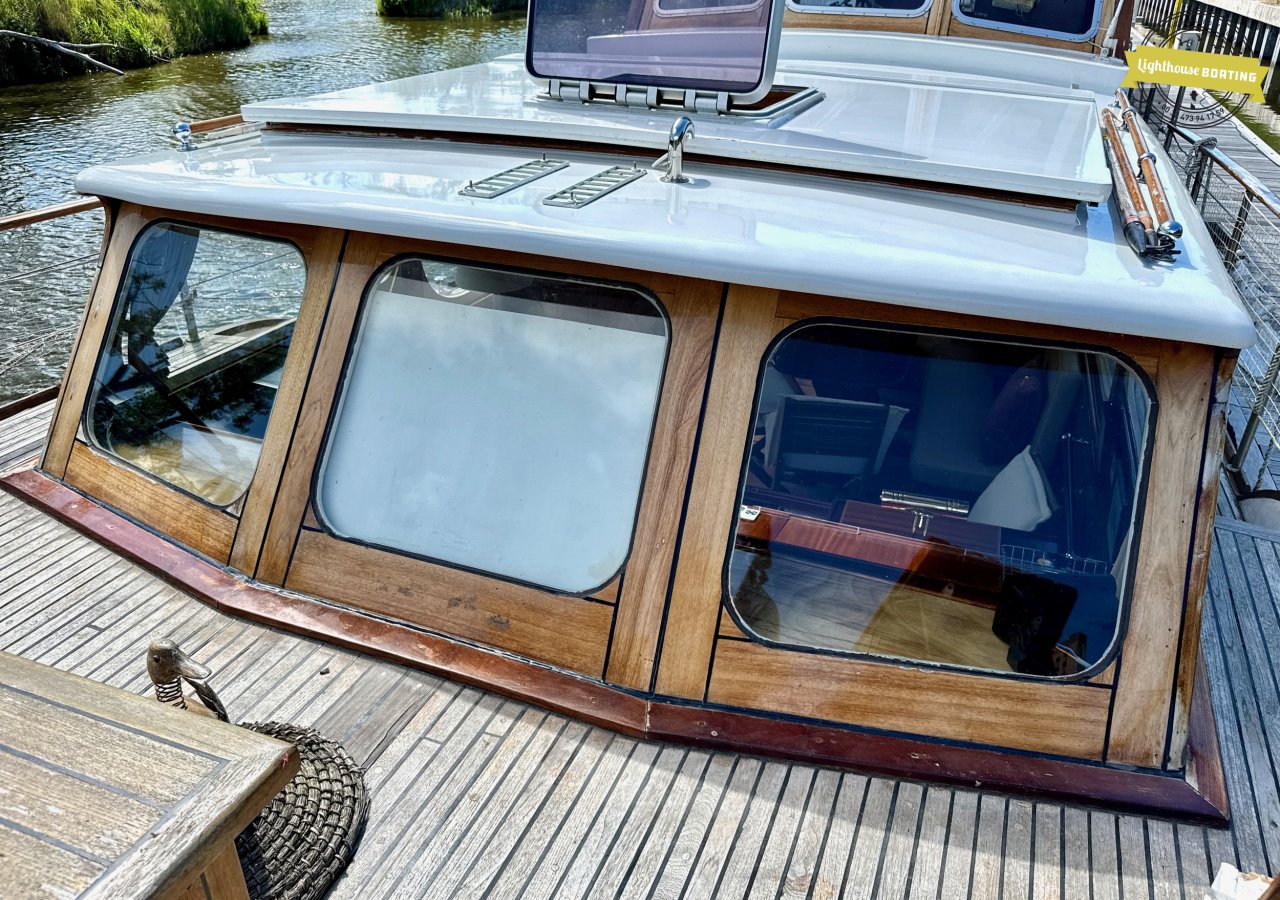

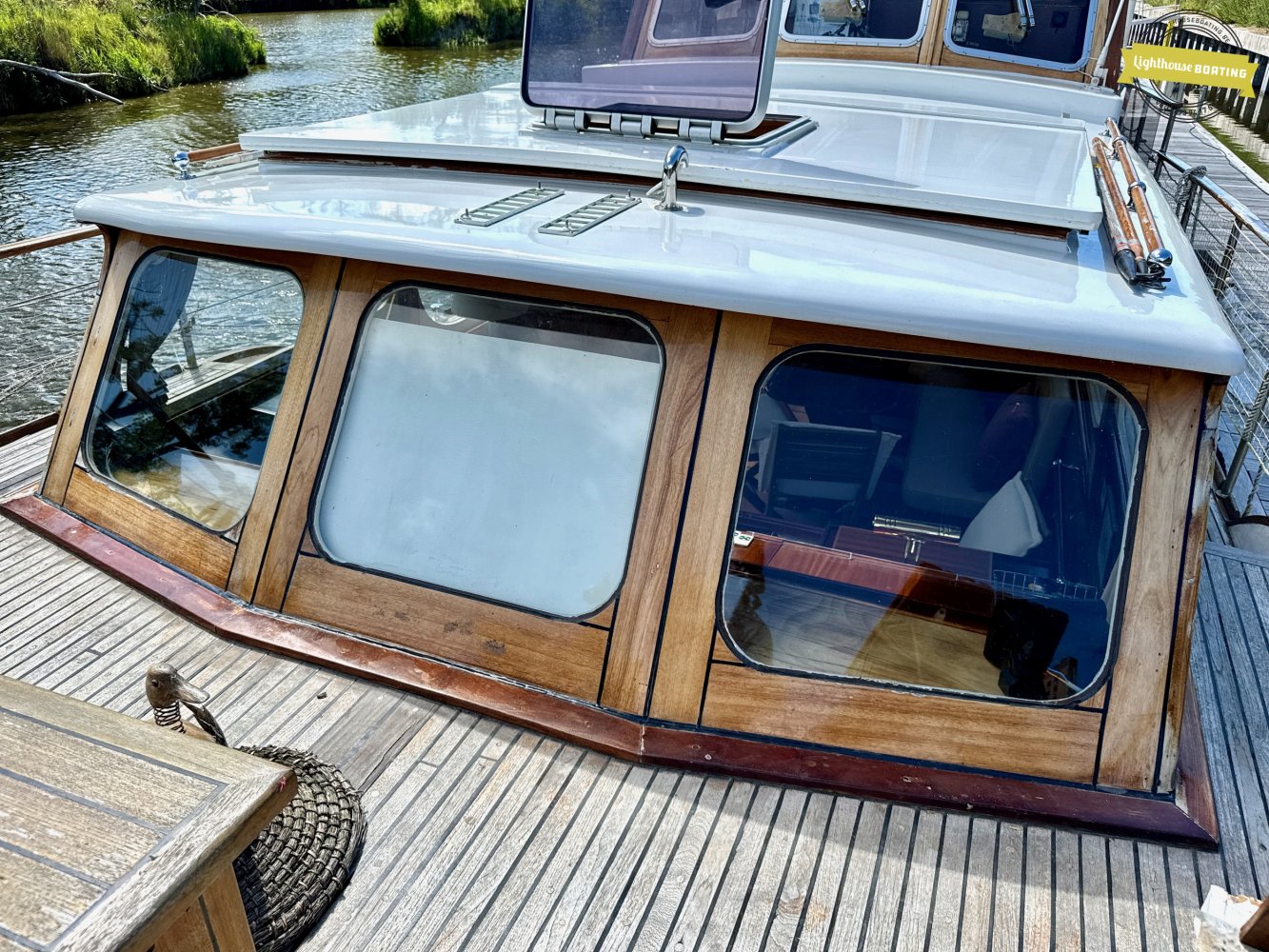

Deck construction:
Steel
Cockpit:
Aft cockpit
Aft cockpit:
Vertical clearance:
3.5 m
Draught:
135 cm
Displacement:
28,000 kg

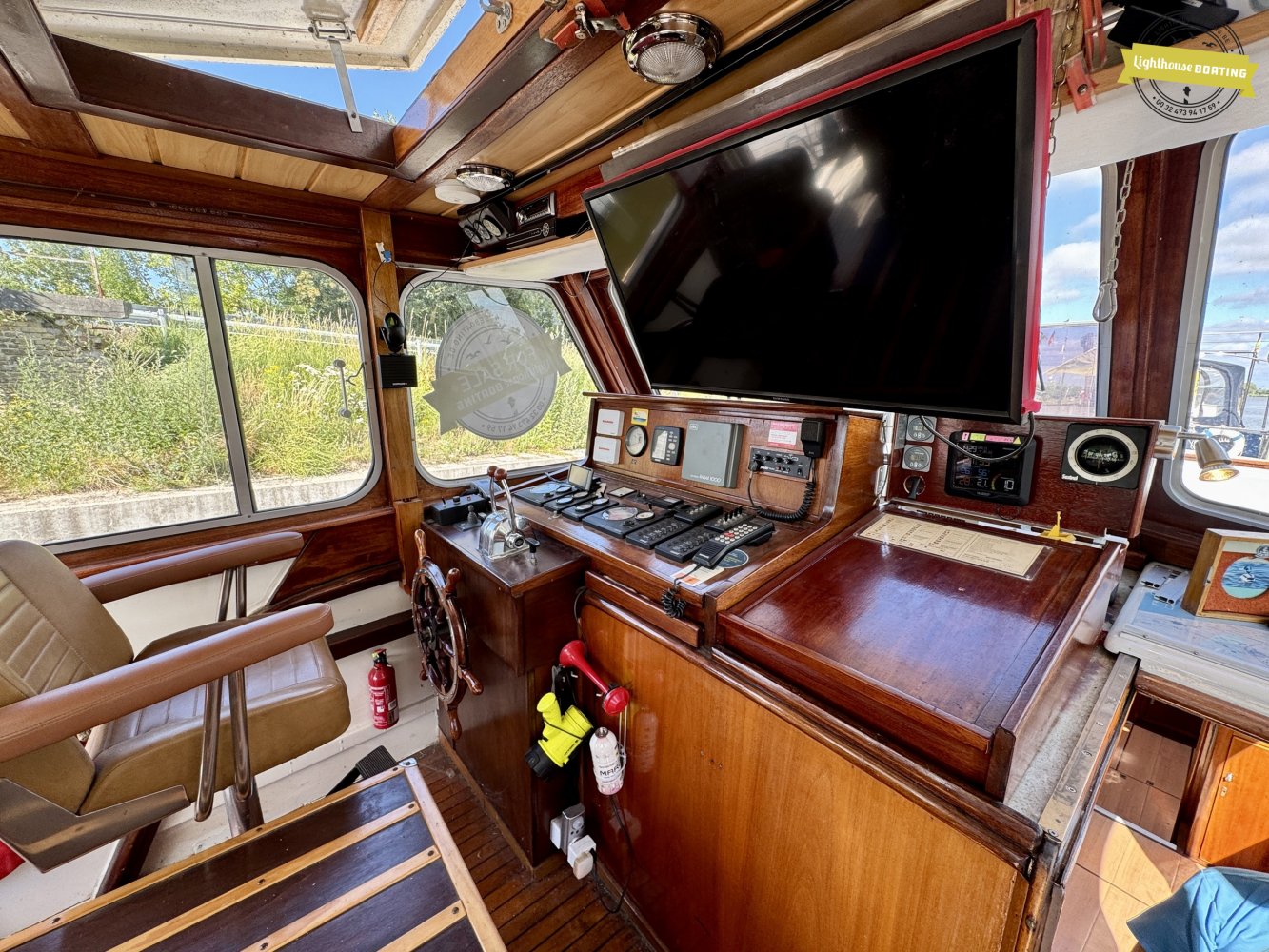

Steering system:
Wheel
Position steering system:
Inside
Rudder:
Double
Keel/Lee board:
Bilge keels
Accommodation:

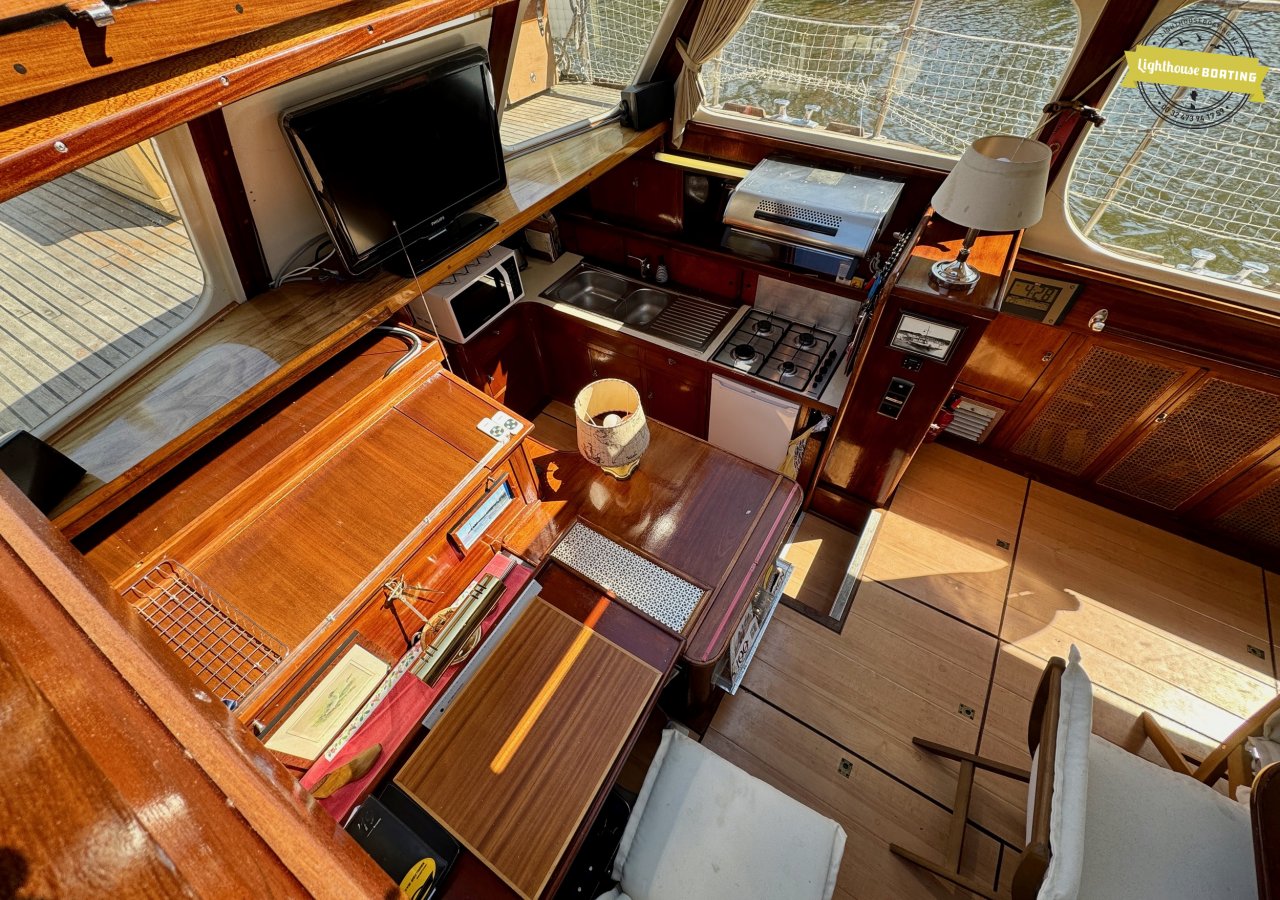

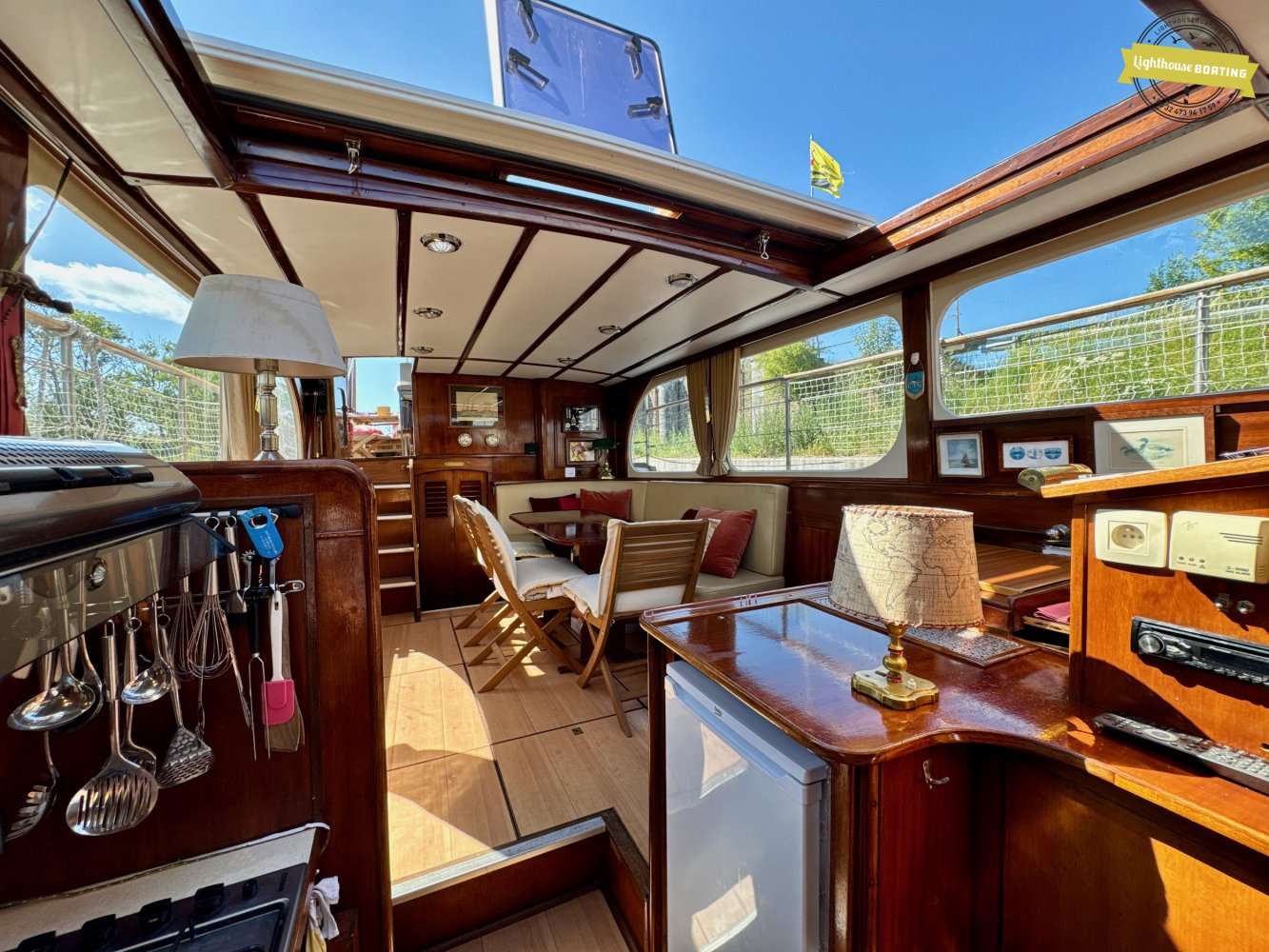

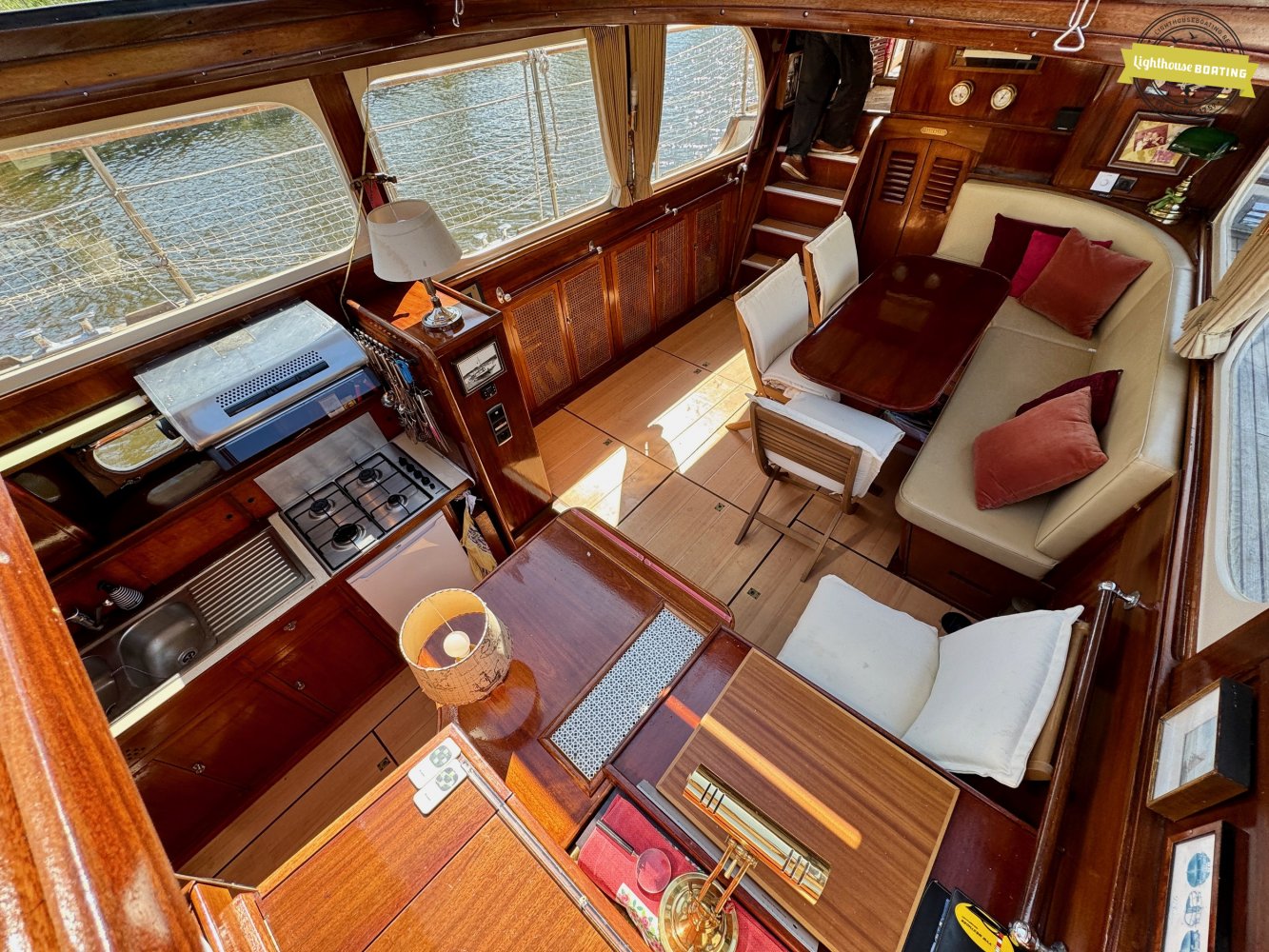

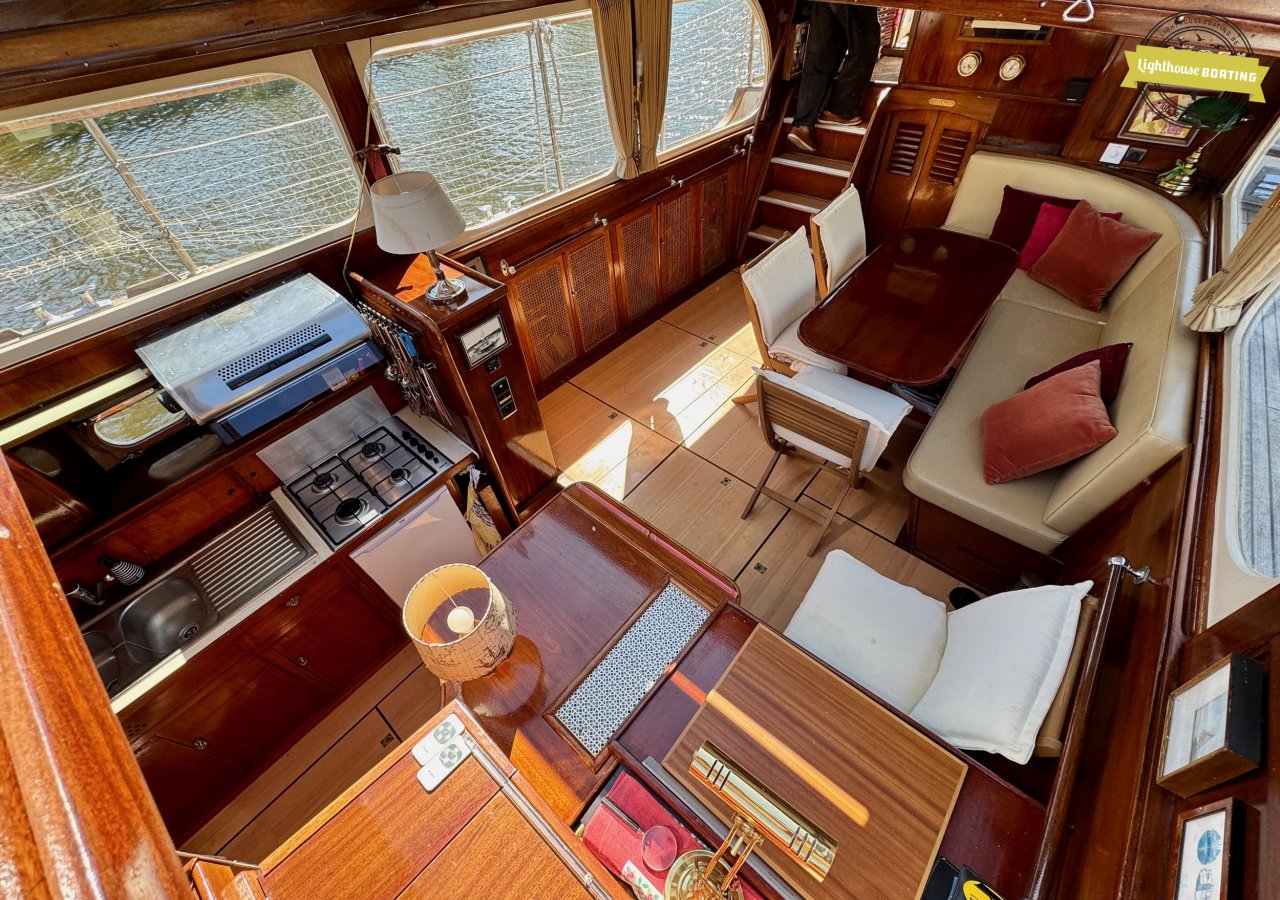

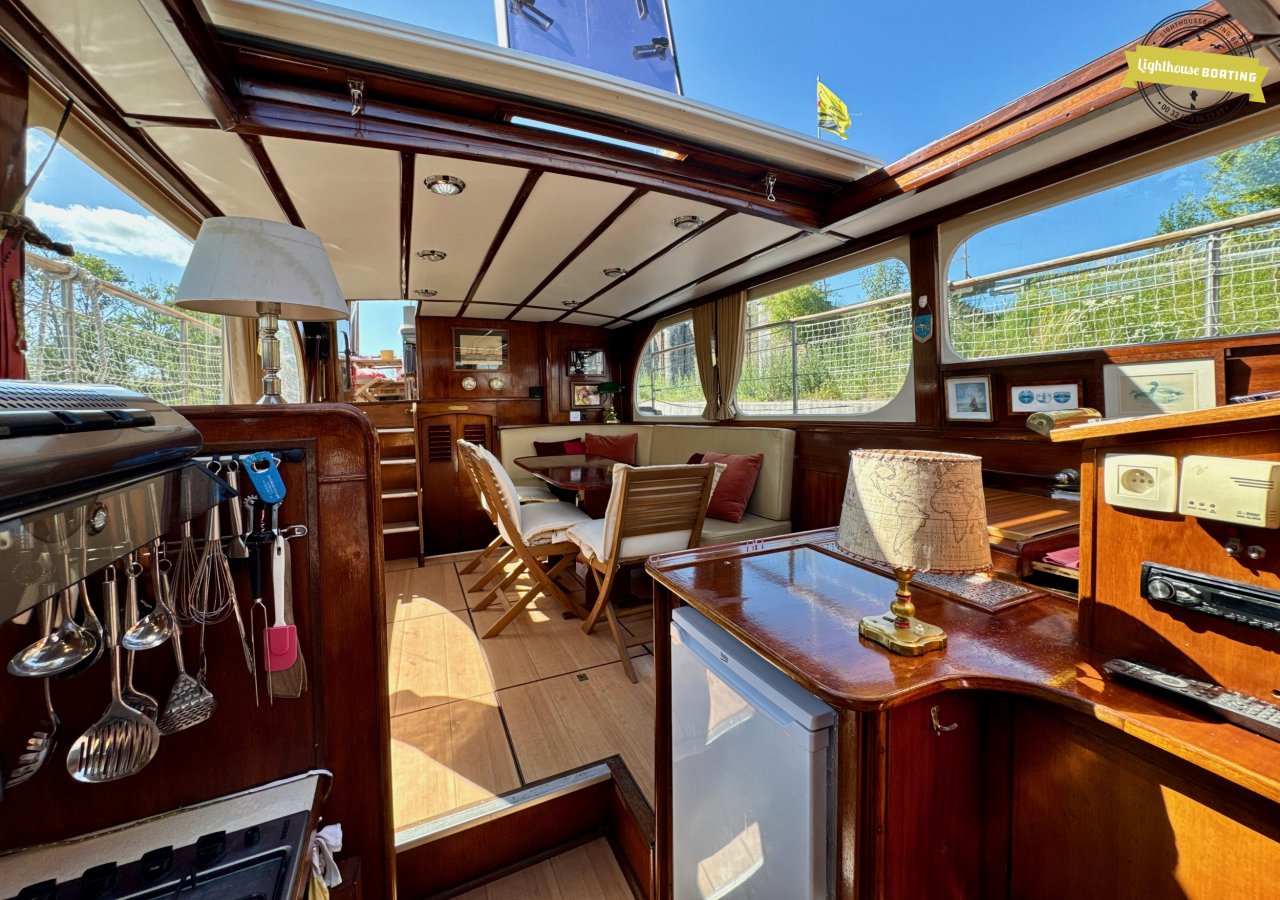

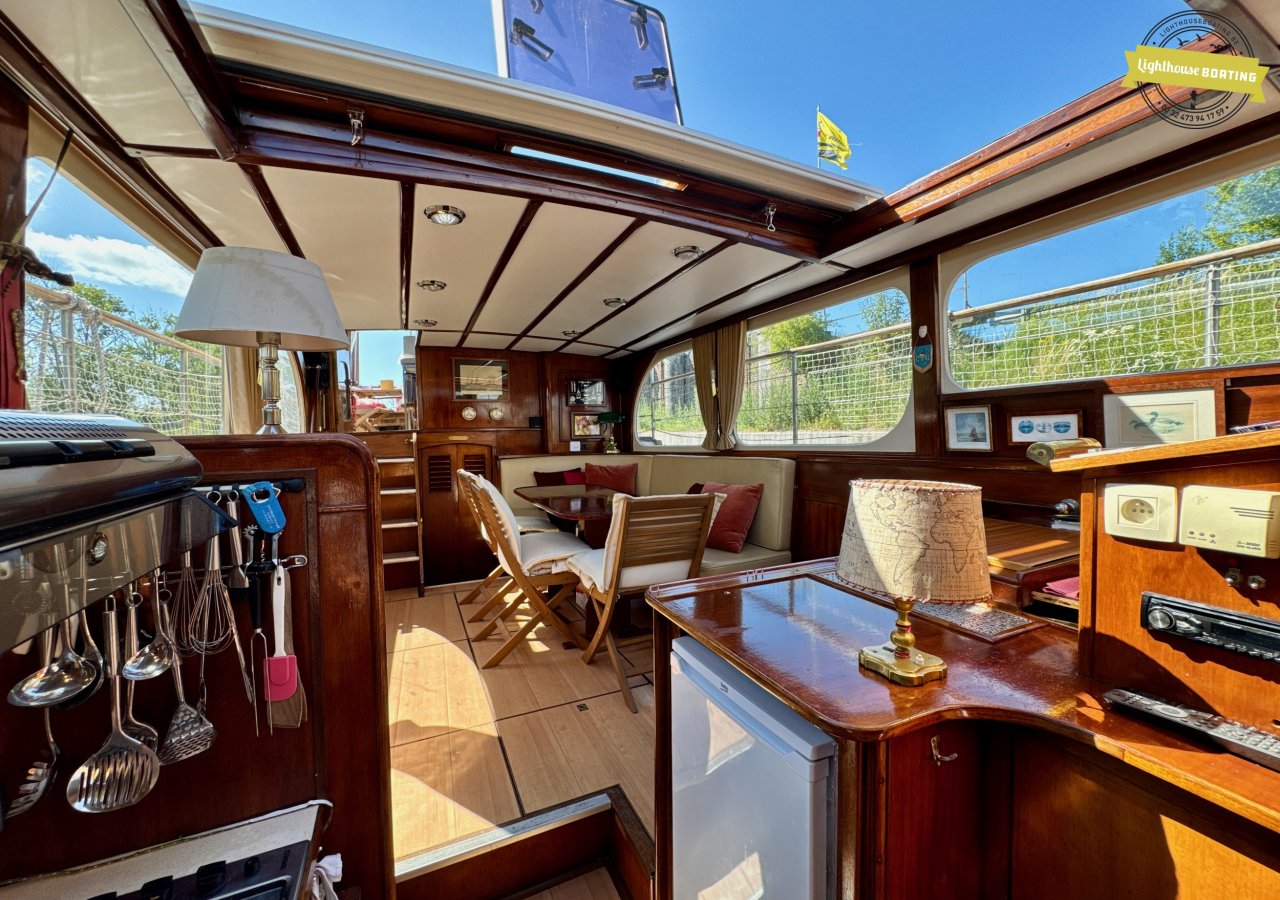

Saloon:
Headroom:
195 cm
Engine room:

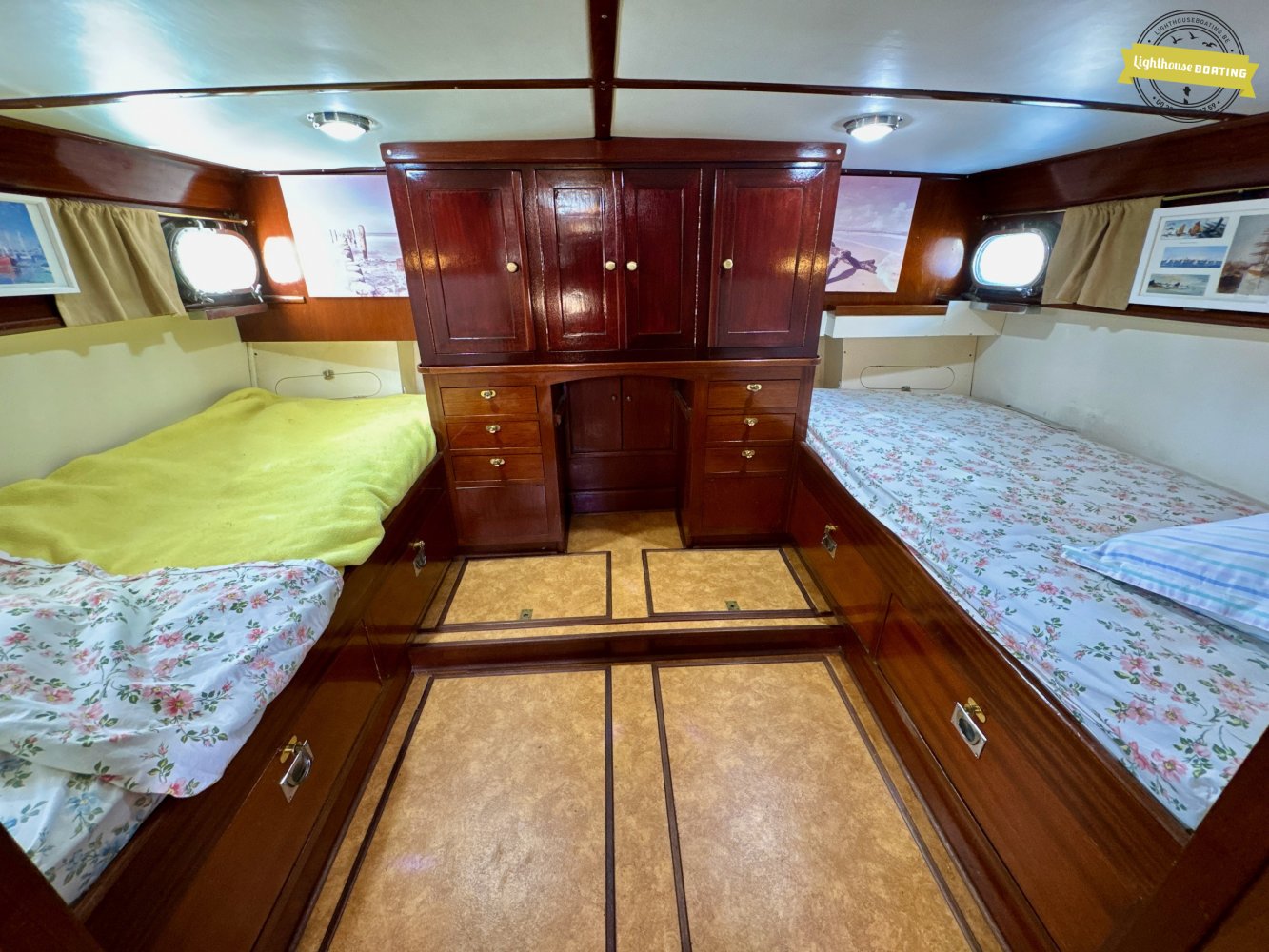

Cabins:
2

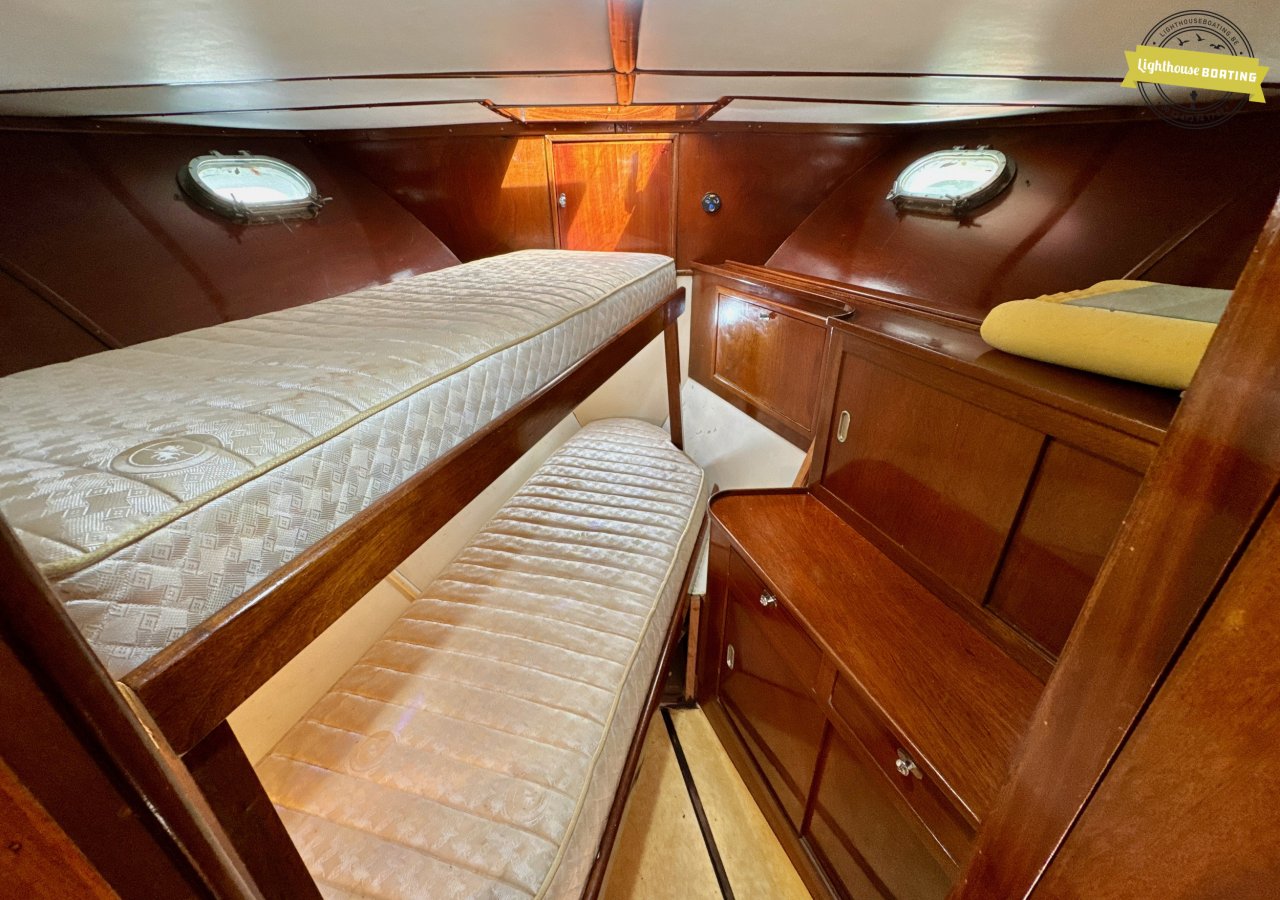

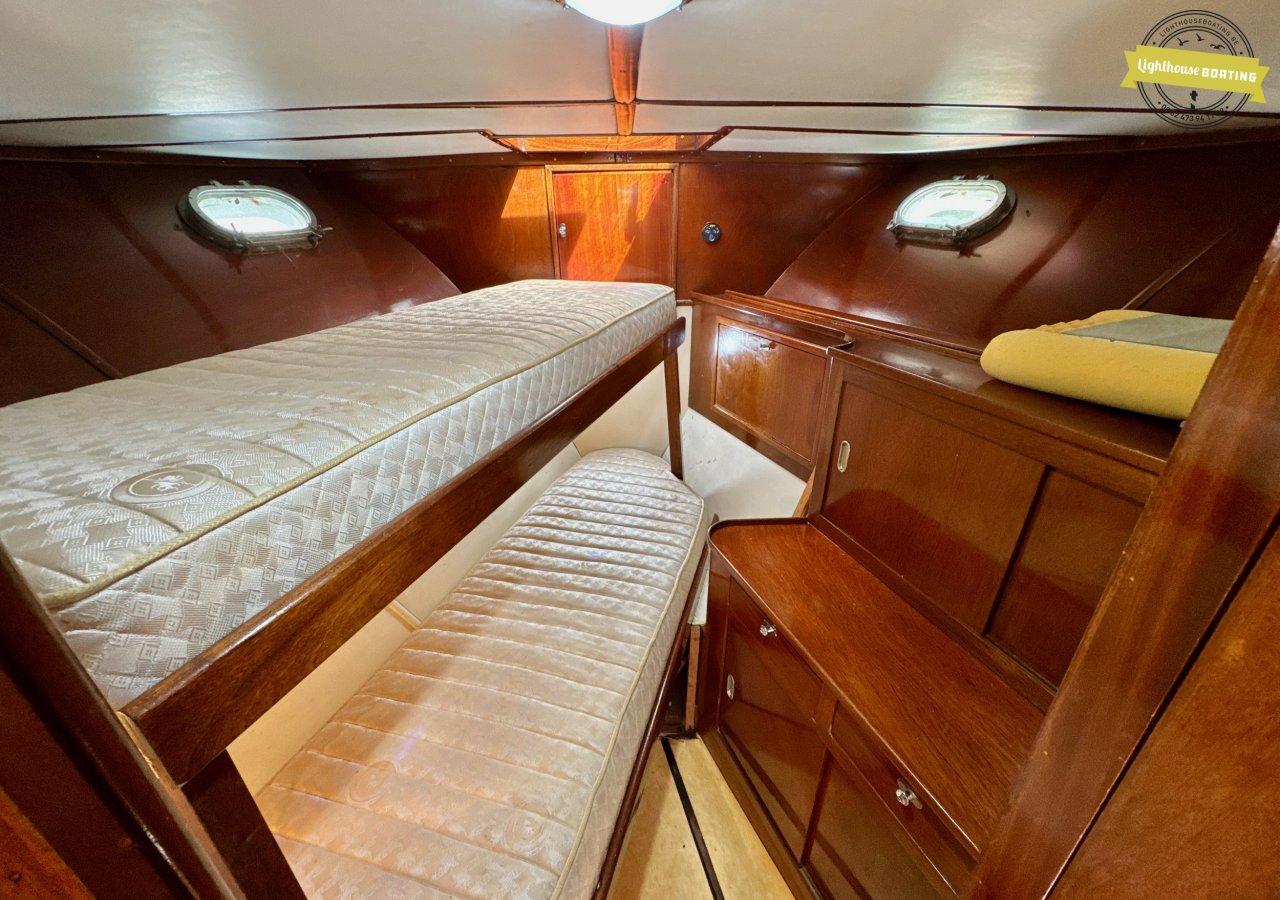

Berths:
fixed: 4 Extra: 2
Type interior:
Classic, warm
Color upholstery:
Beige
Mattresses:
Cushions:
Curtains:
Water tank & material:
1.100 litre Steel
Water system:
Pressure system
Hot water:
30L - 220V + Engine warmth

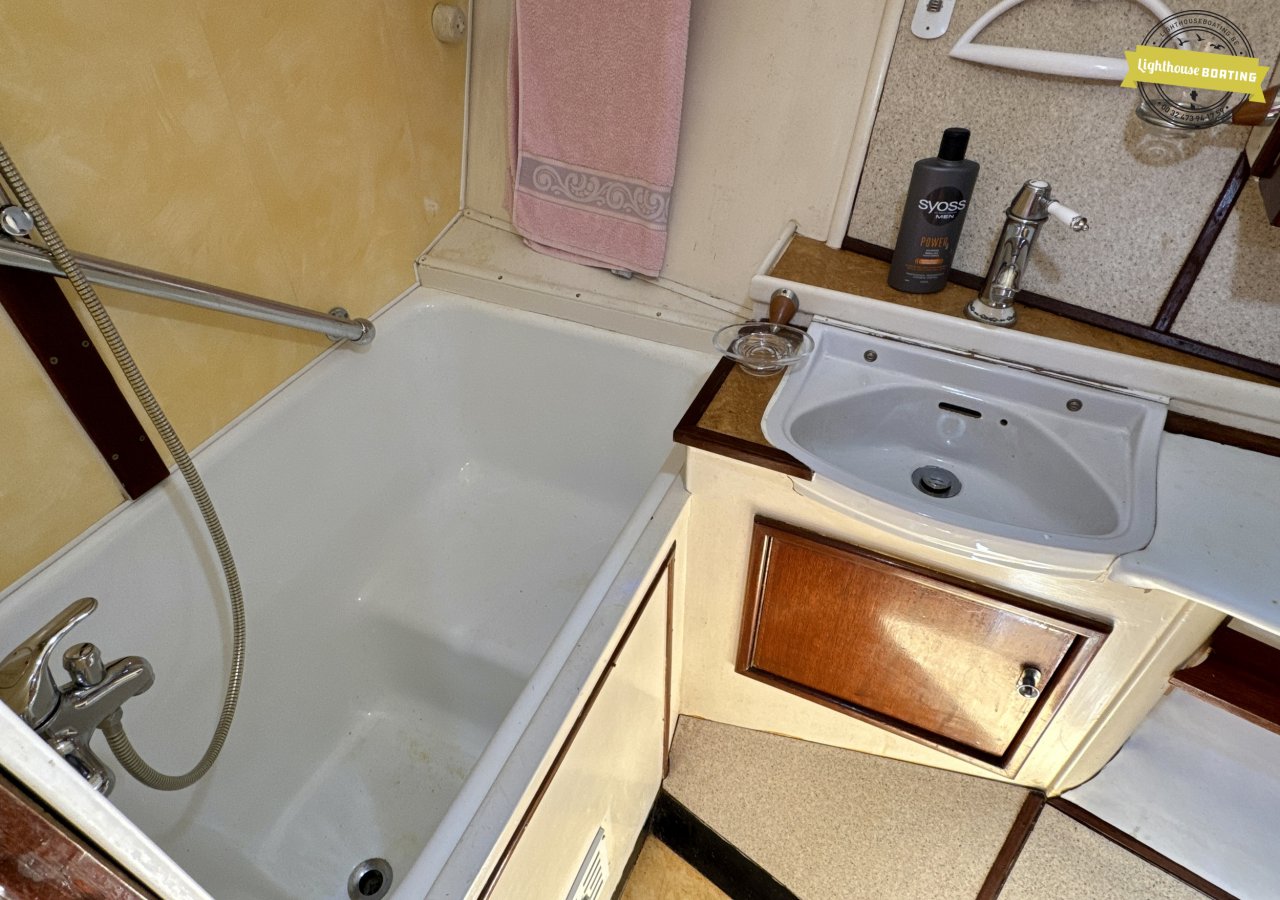

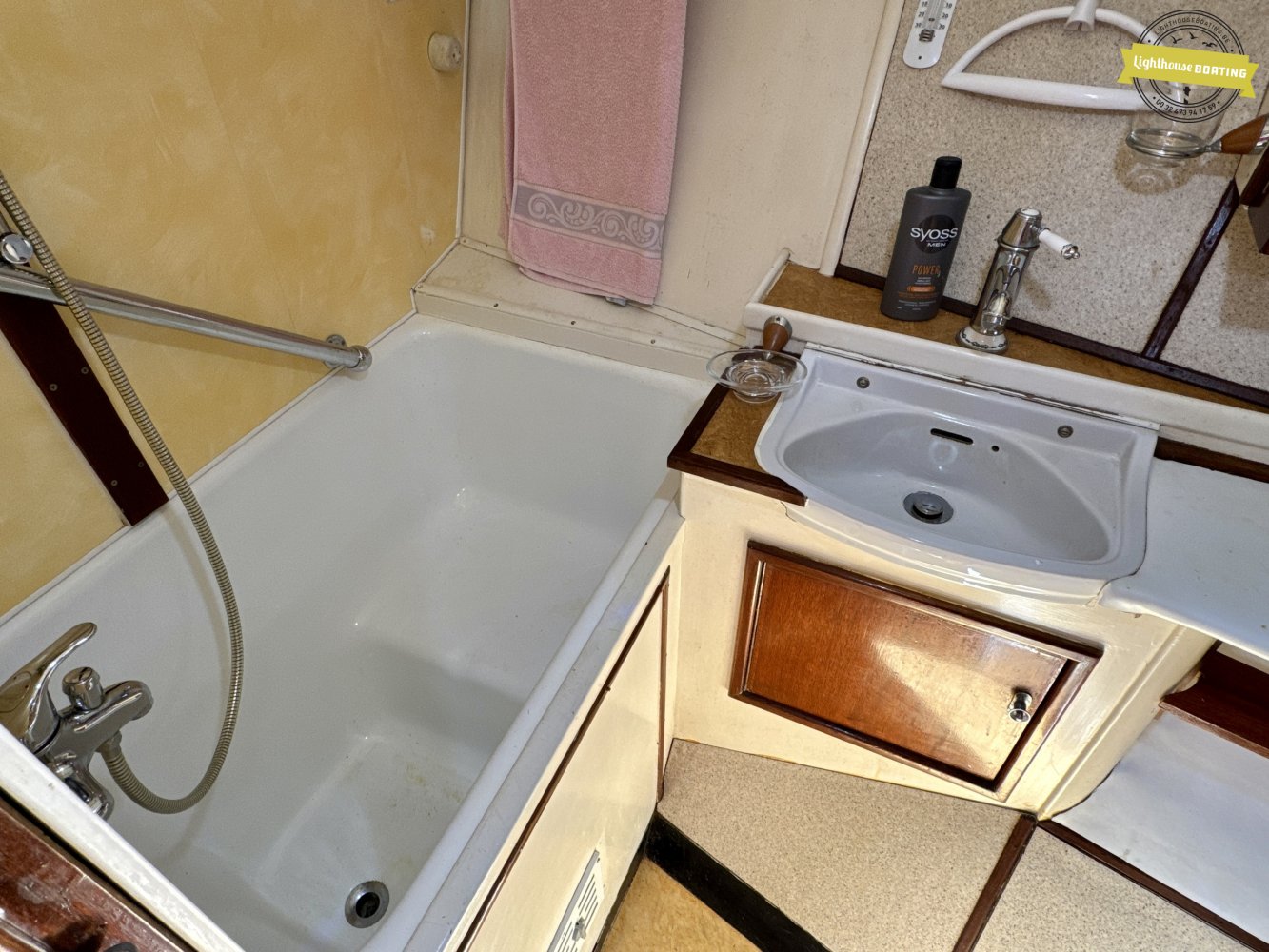

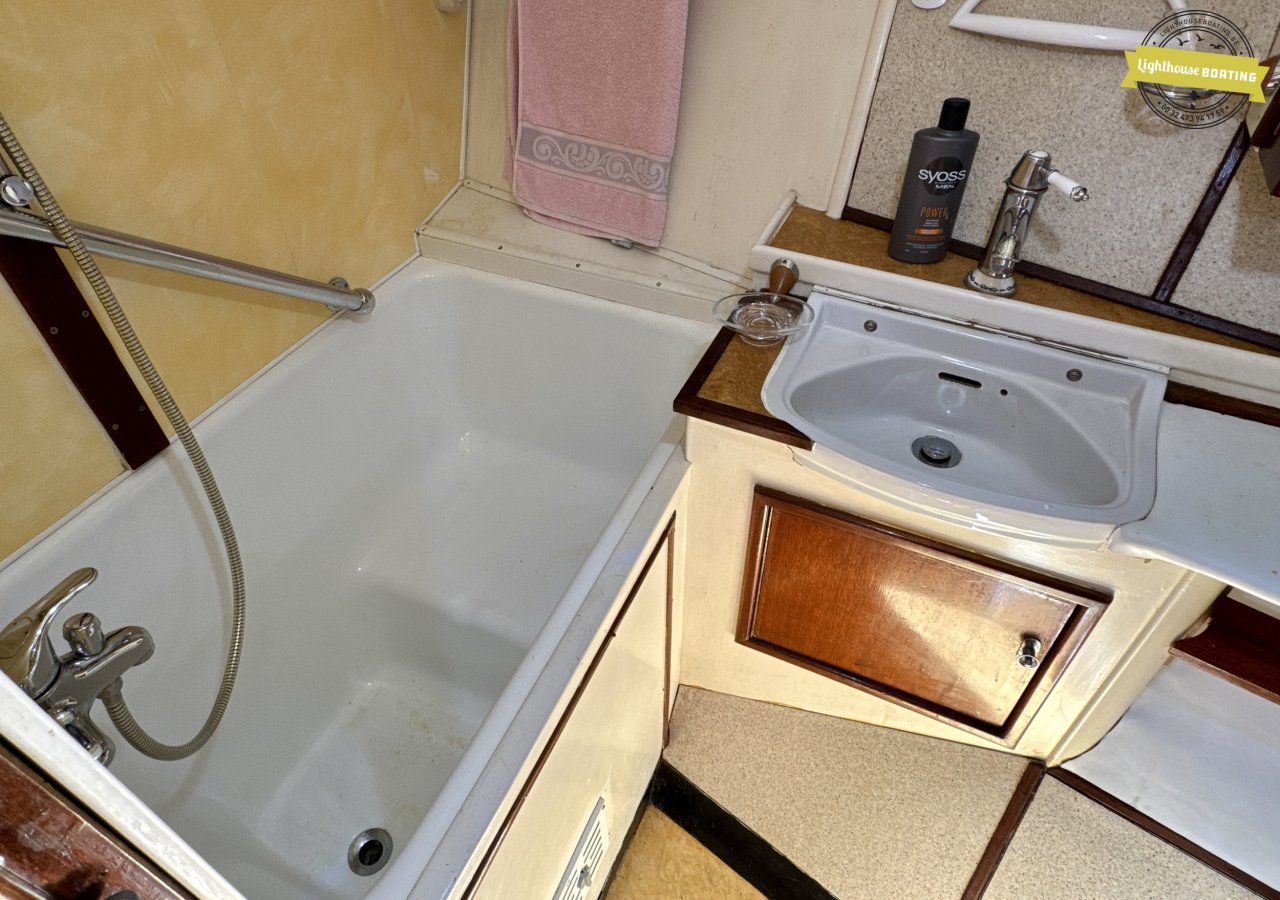

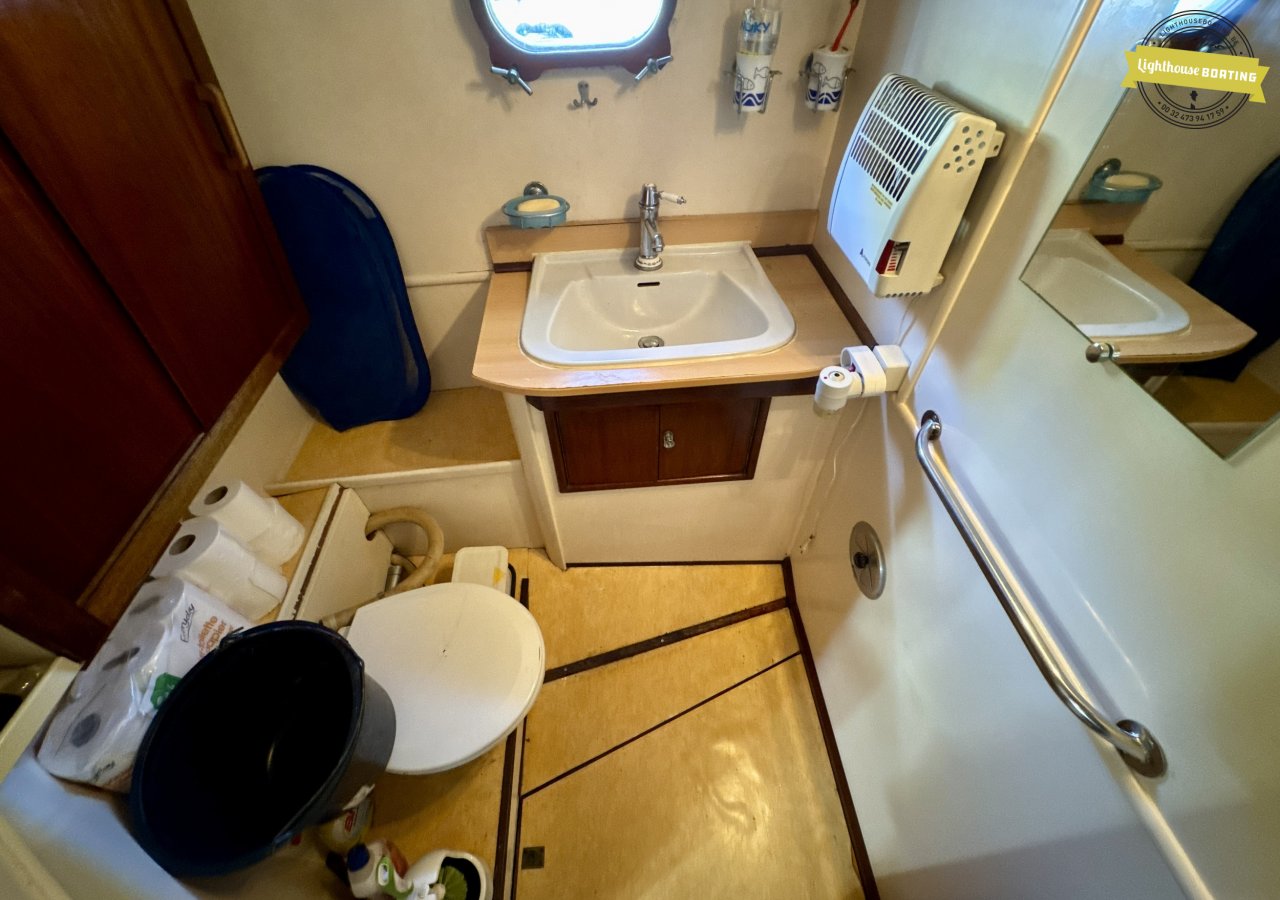

Number of baths:
1

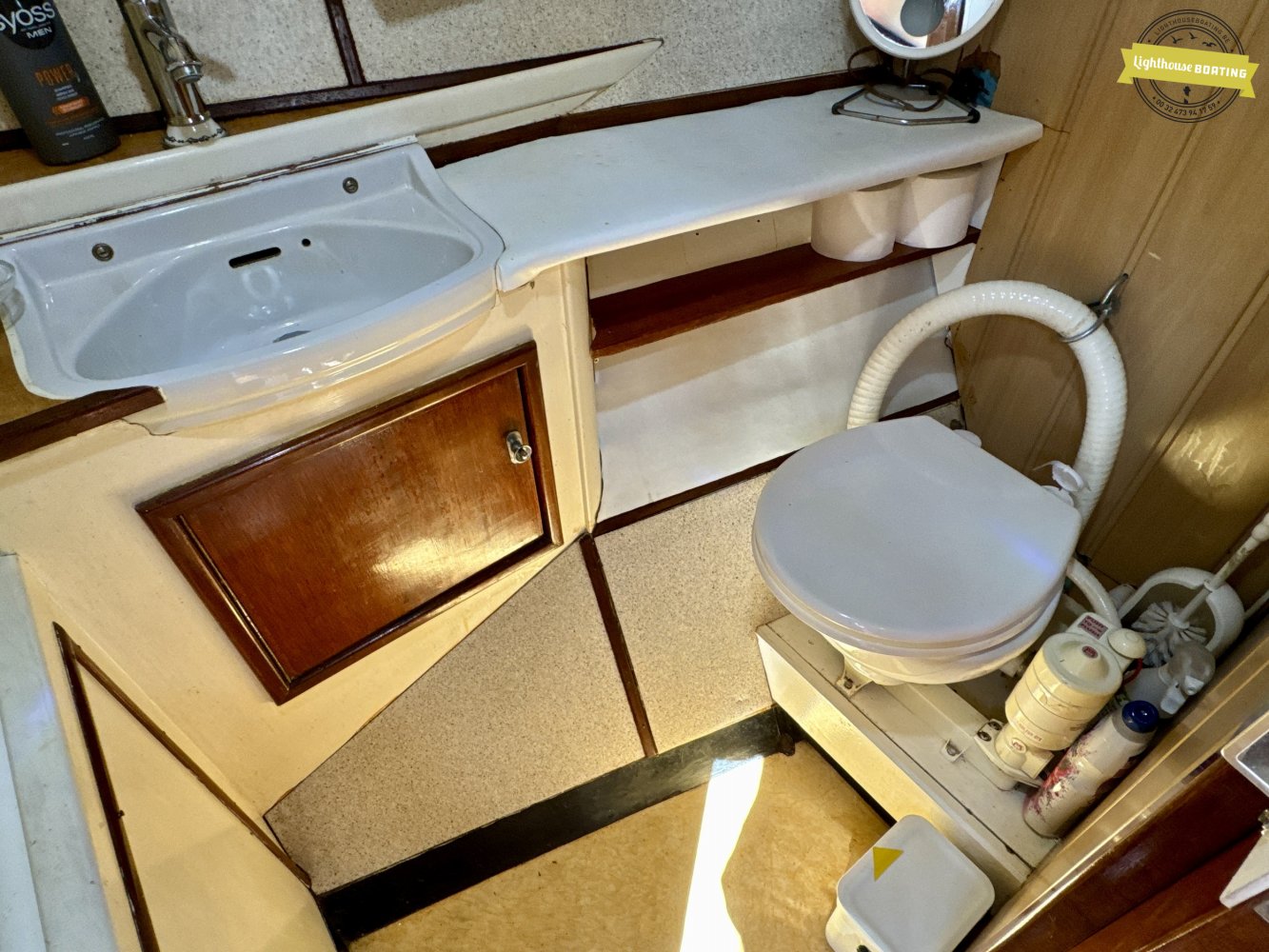

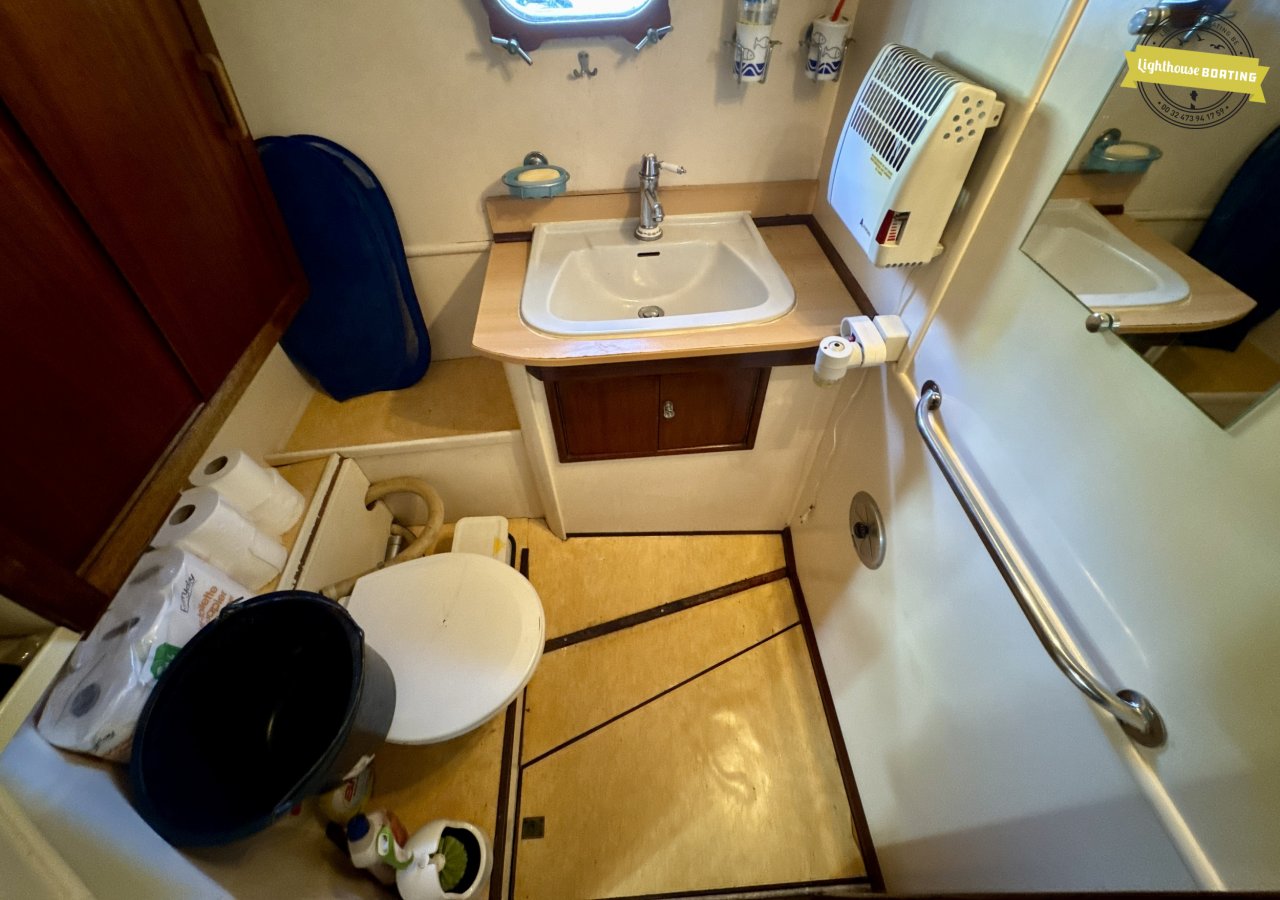

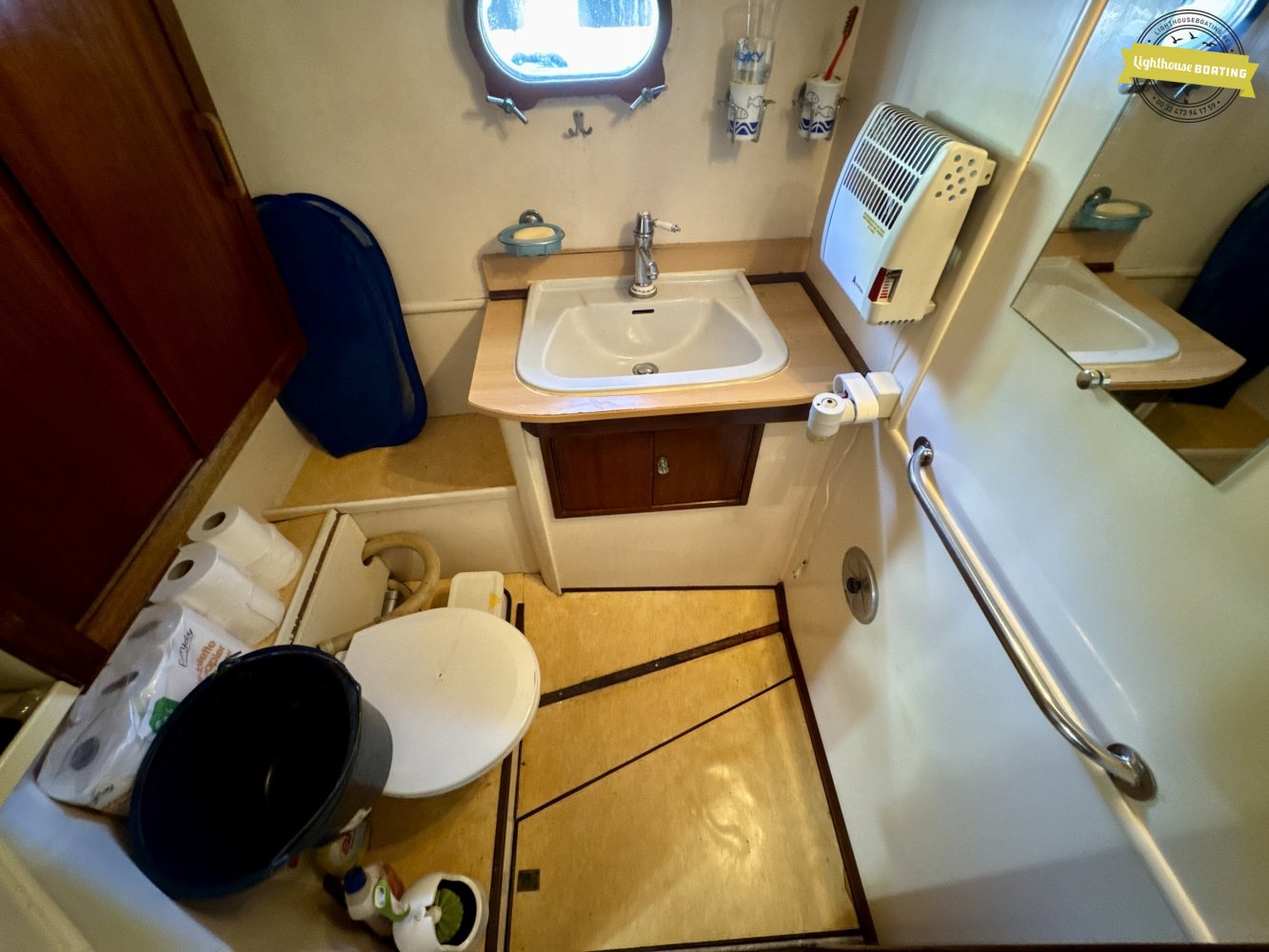

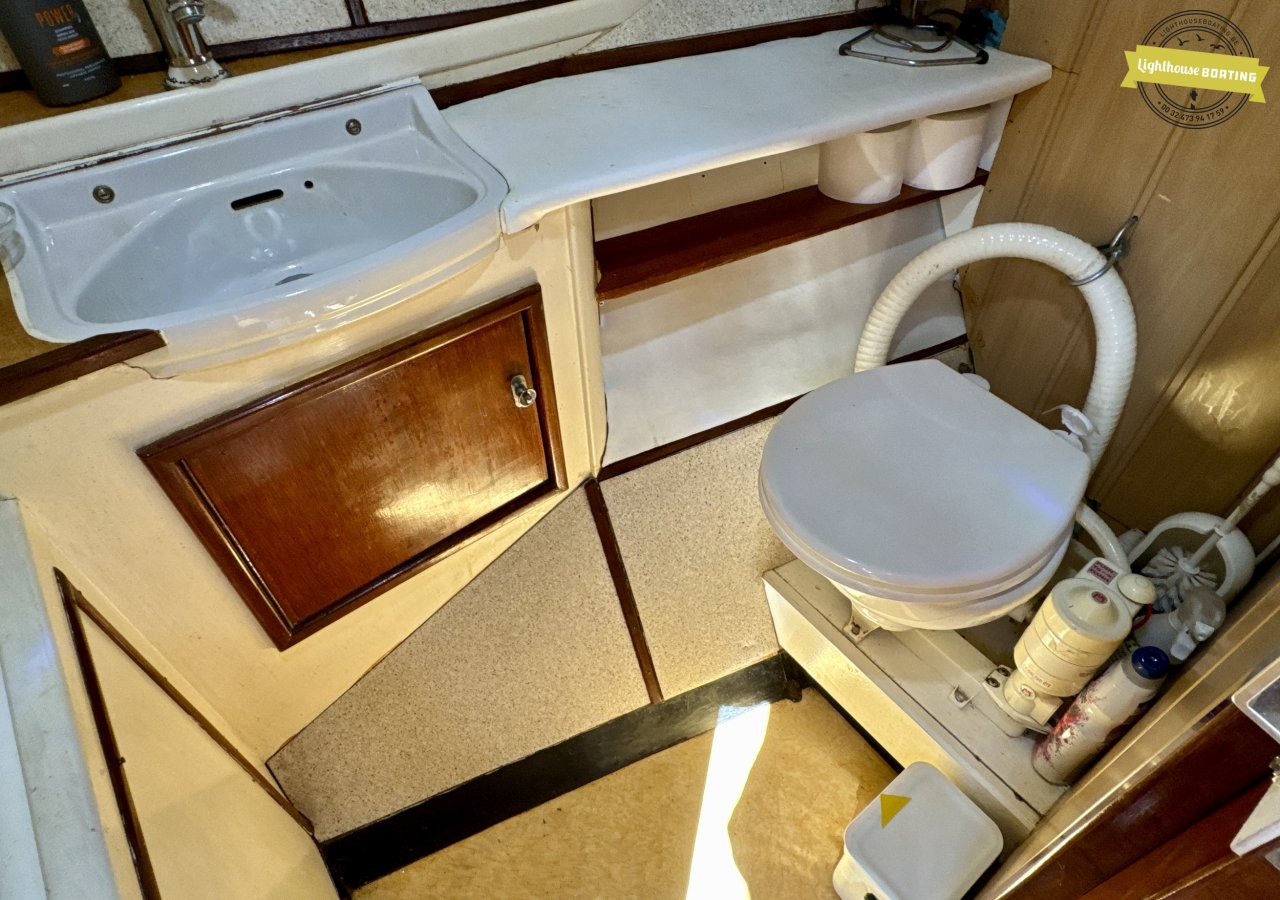

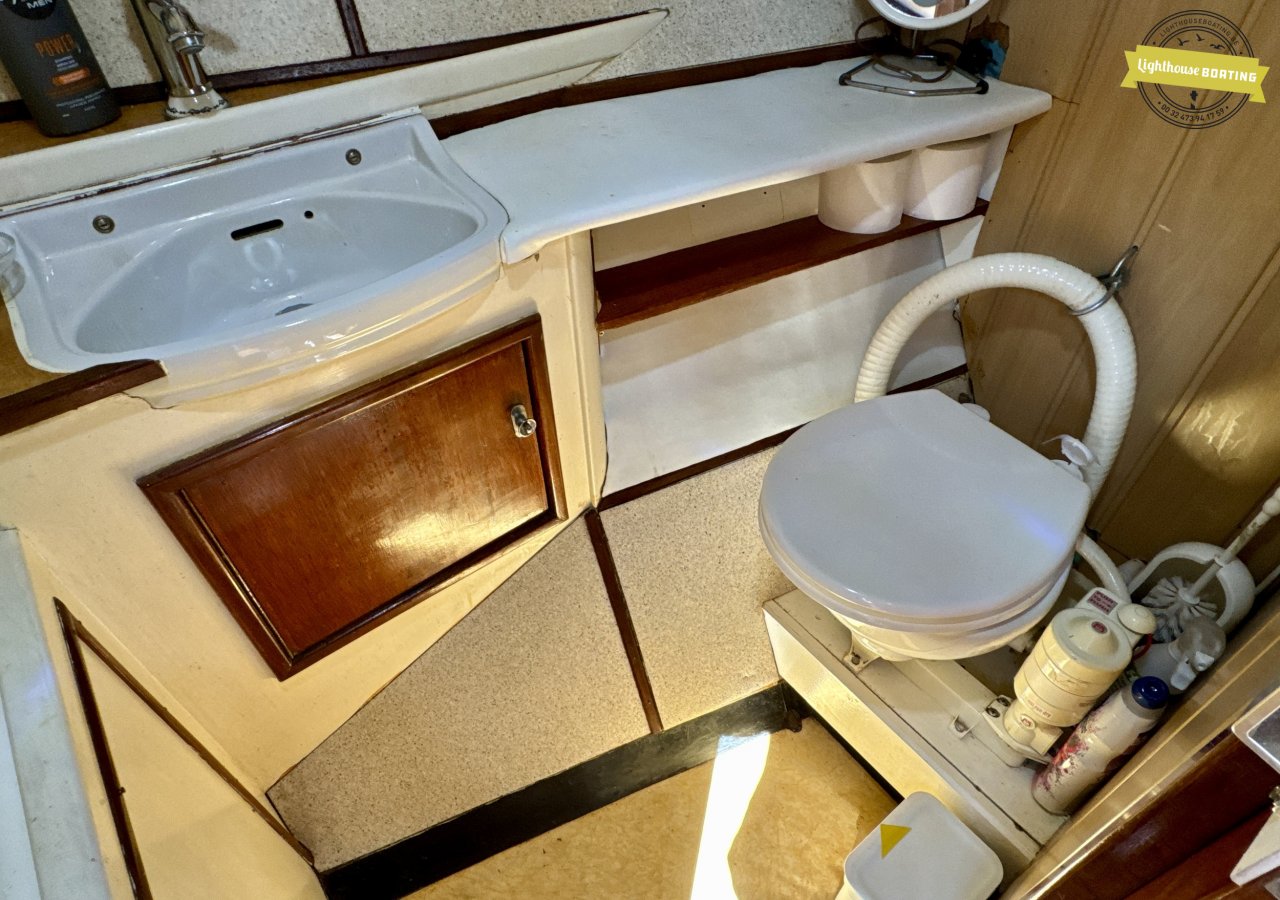

Toilets:
2
Electric
Both with Macerator
Electric
Both with Macerator
Television:
Radio/CD player:

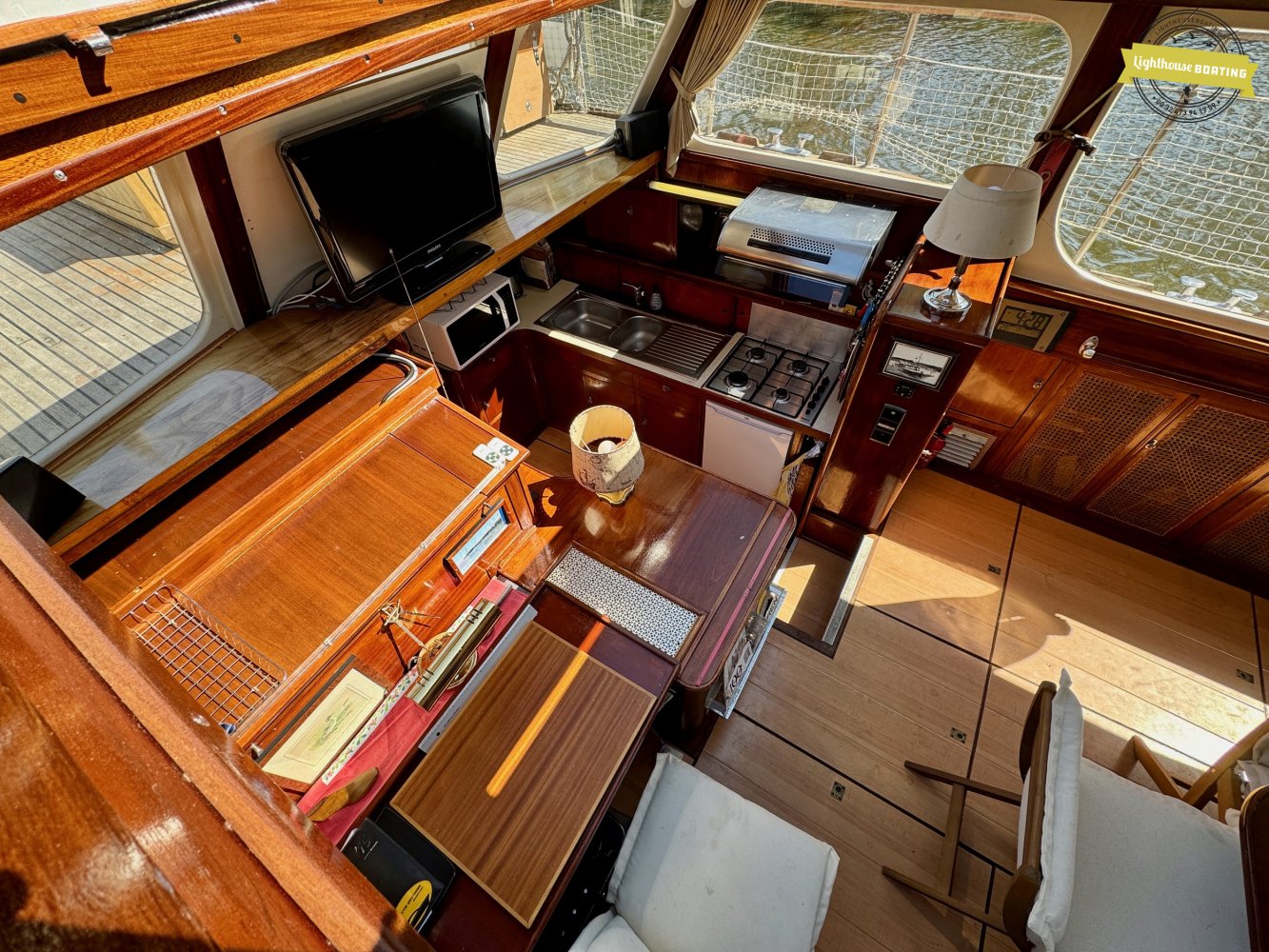

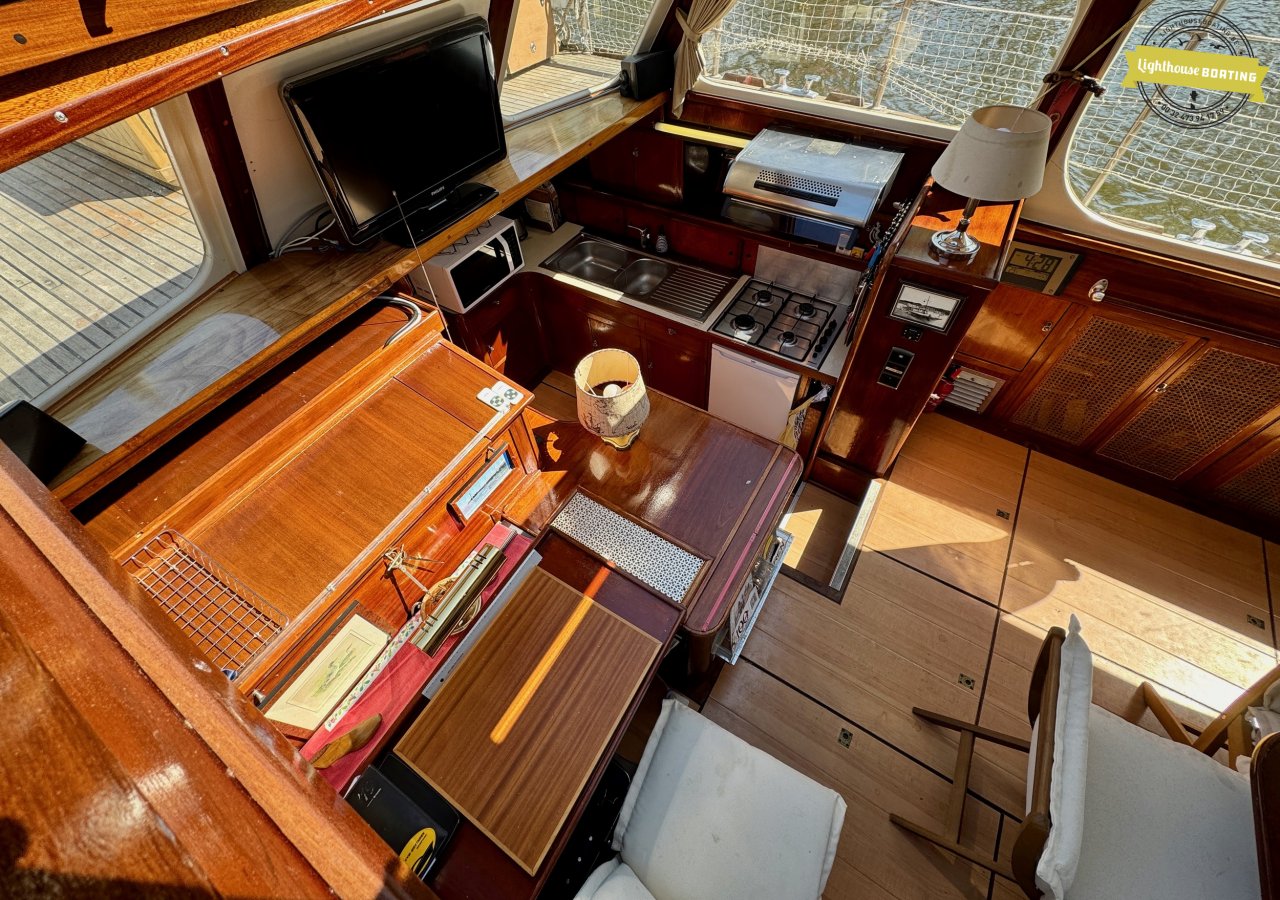

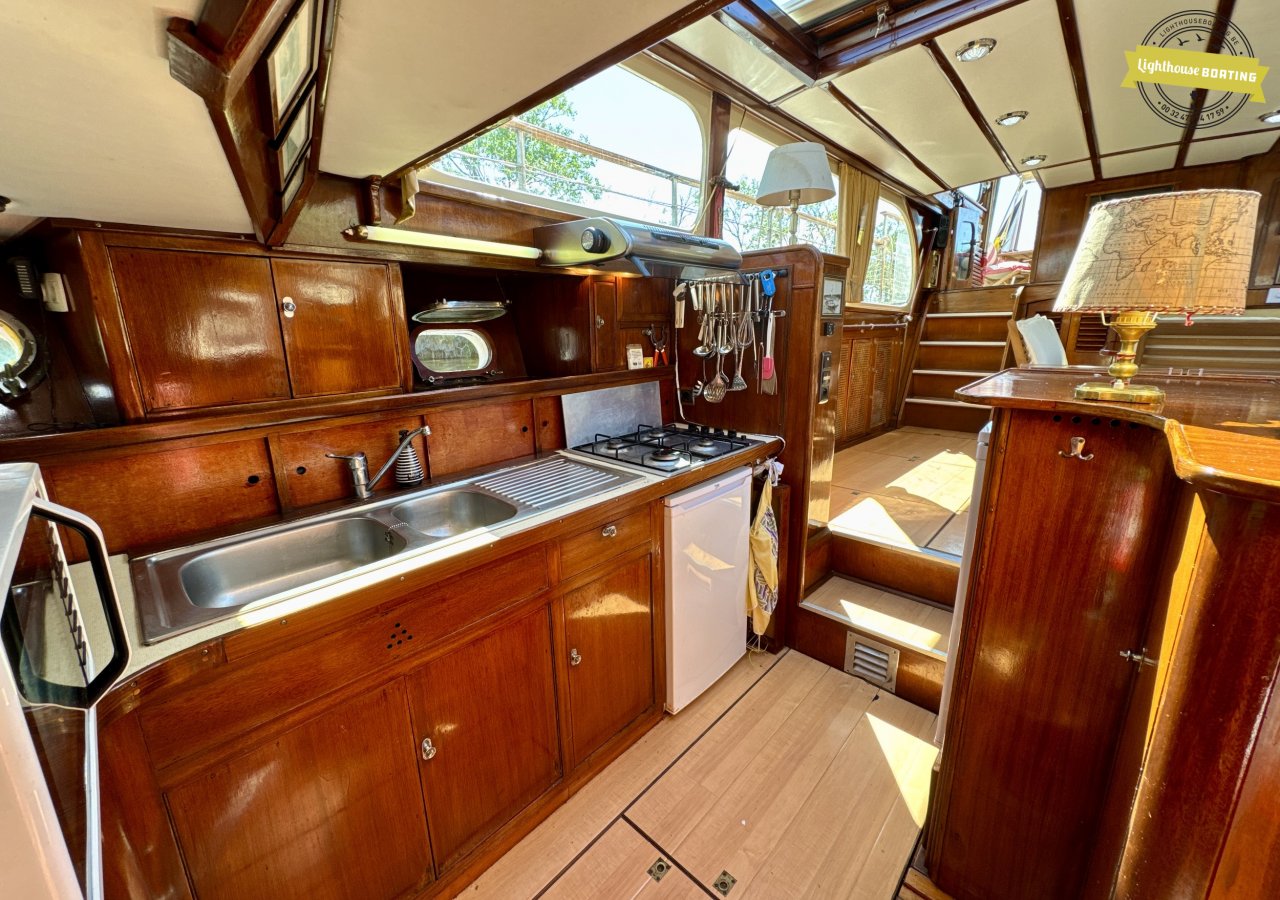

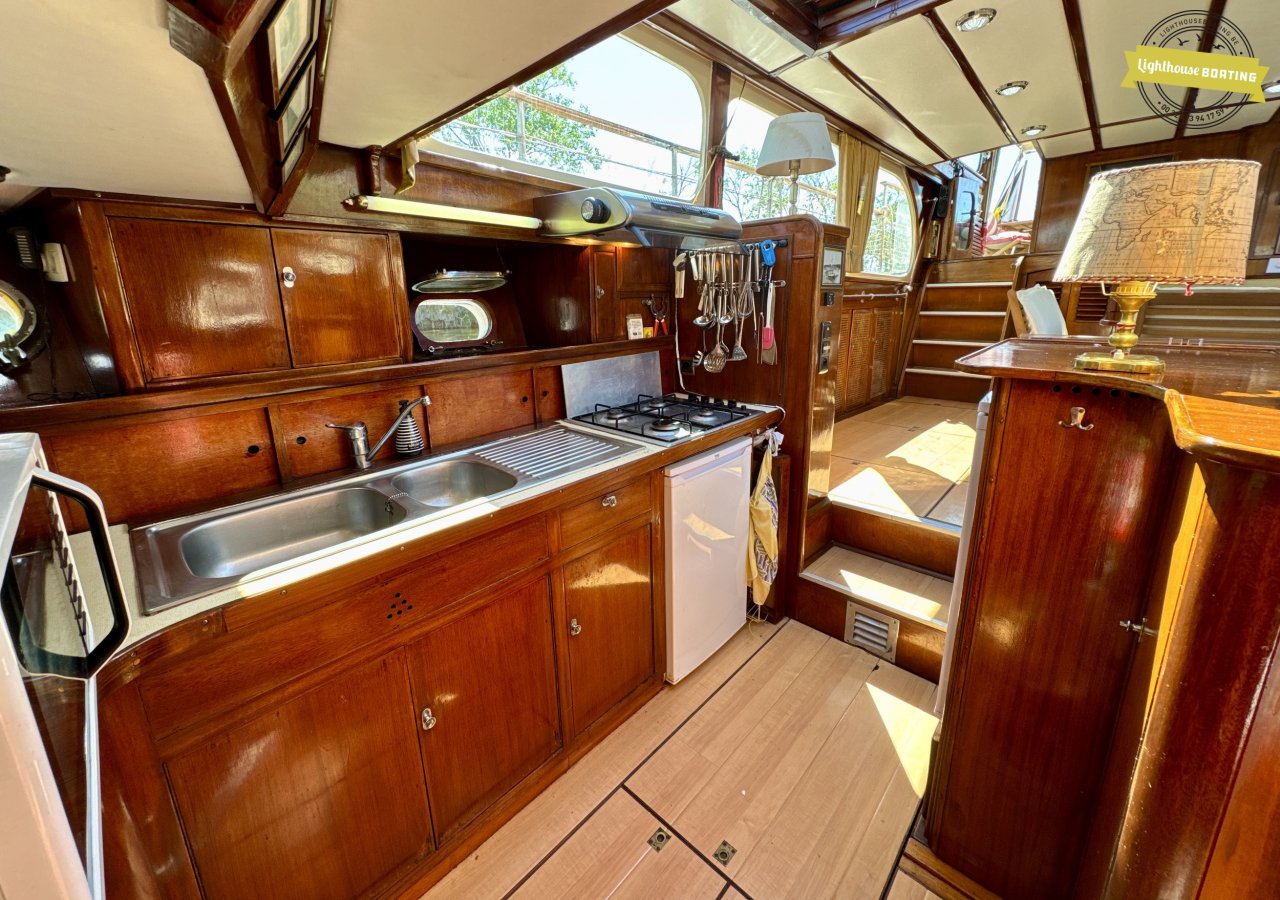

Cooker & fuel:
4 burner(s) Gas
Oven:
Combi oven
Microwave:
+ Grill
Fridge & power source:
88 Litre Electric
Freezer:
65 Litre
Heating:
hot air
Eberspächer D5 Airtronic (2023)

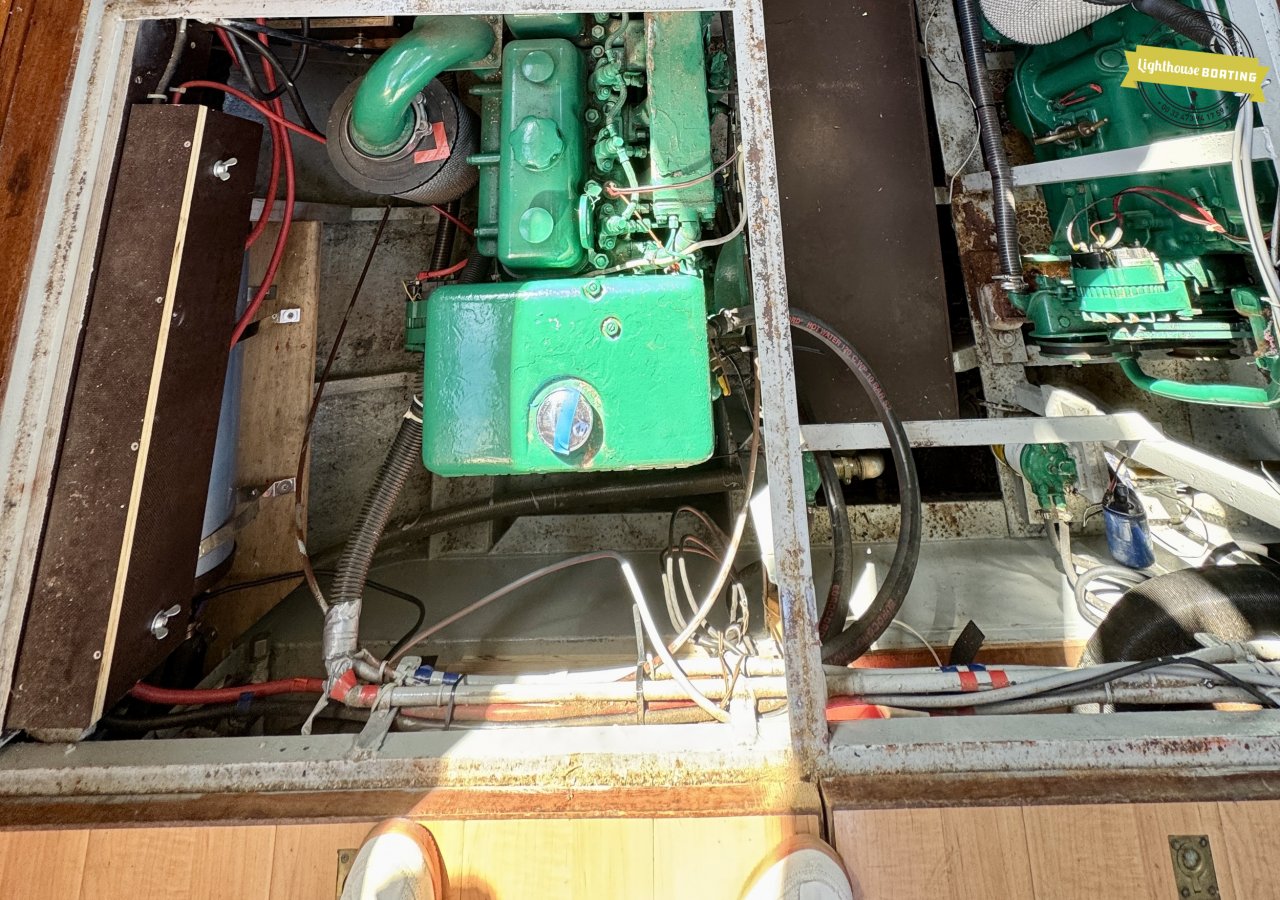

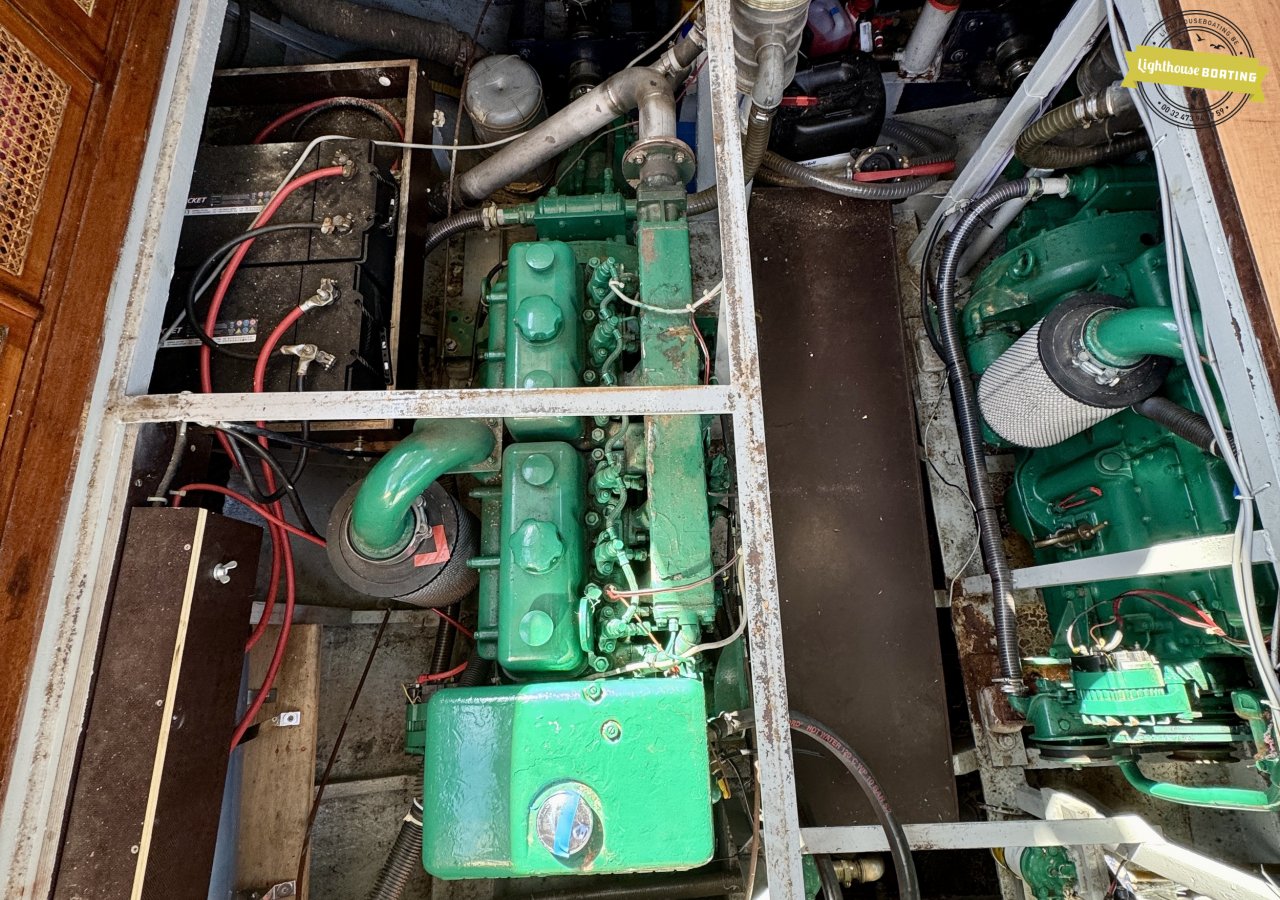

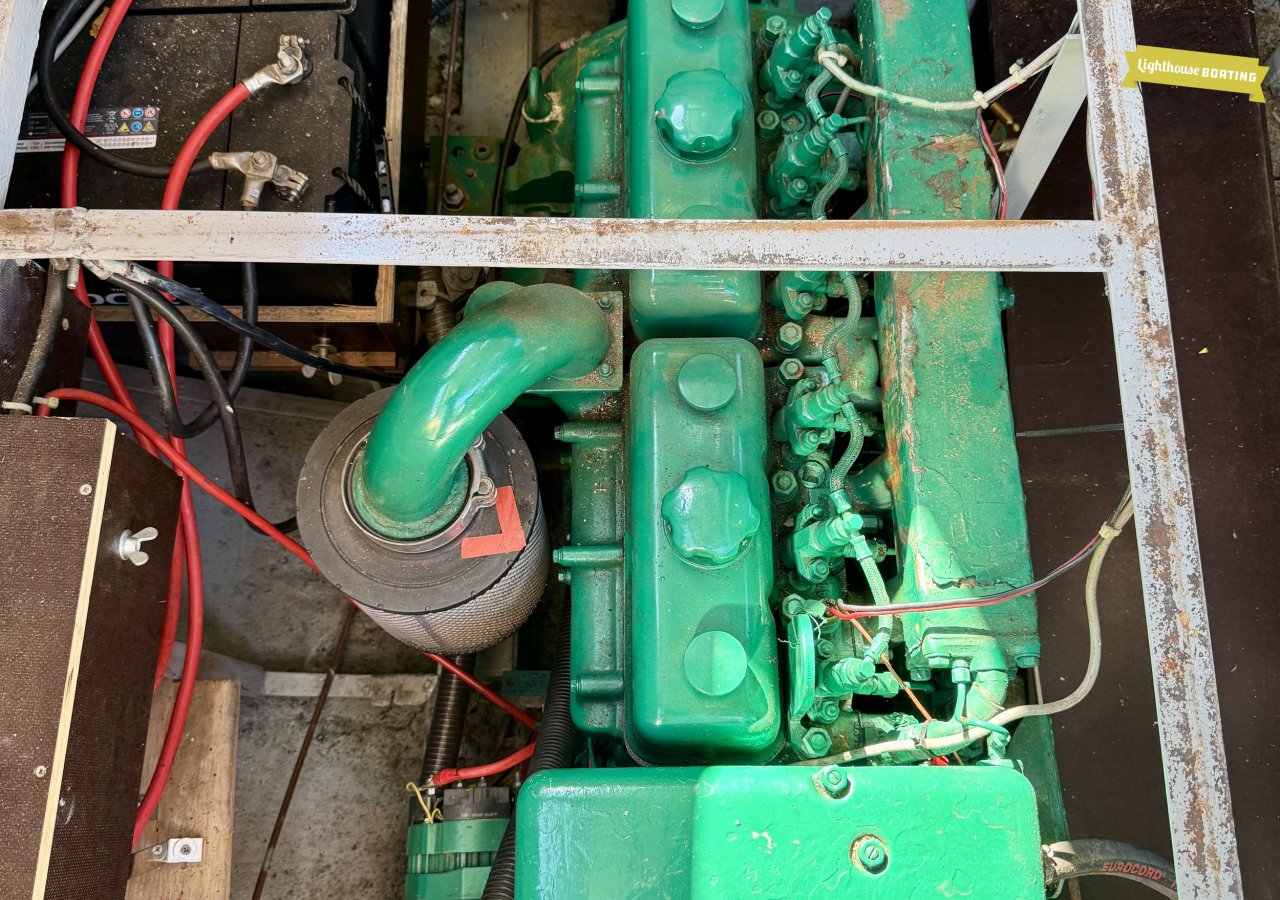

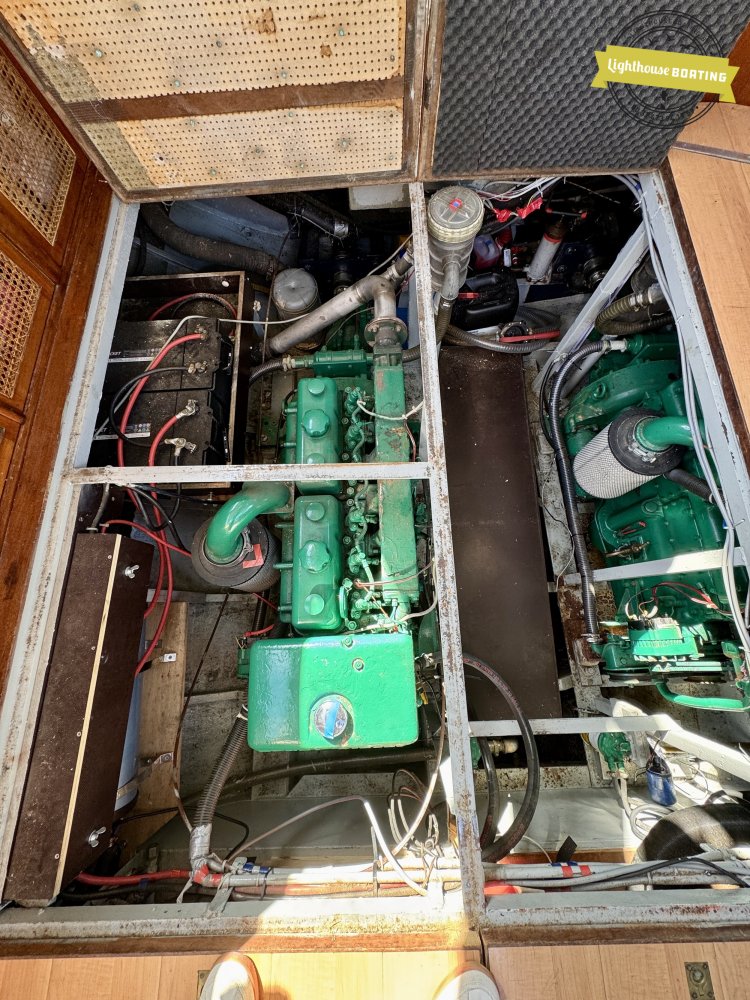

Engine, electrics:
Number of identical engines:
2
Starting type:
Electric

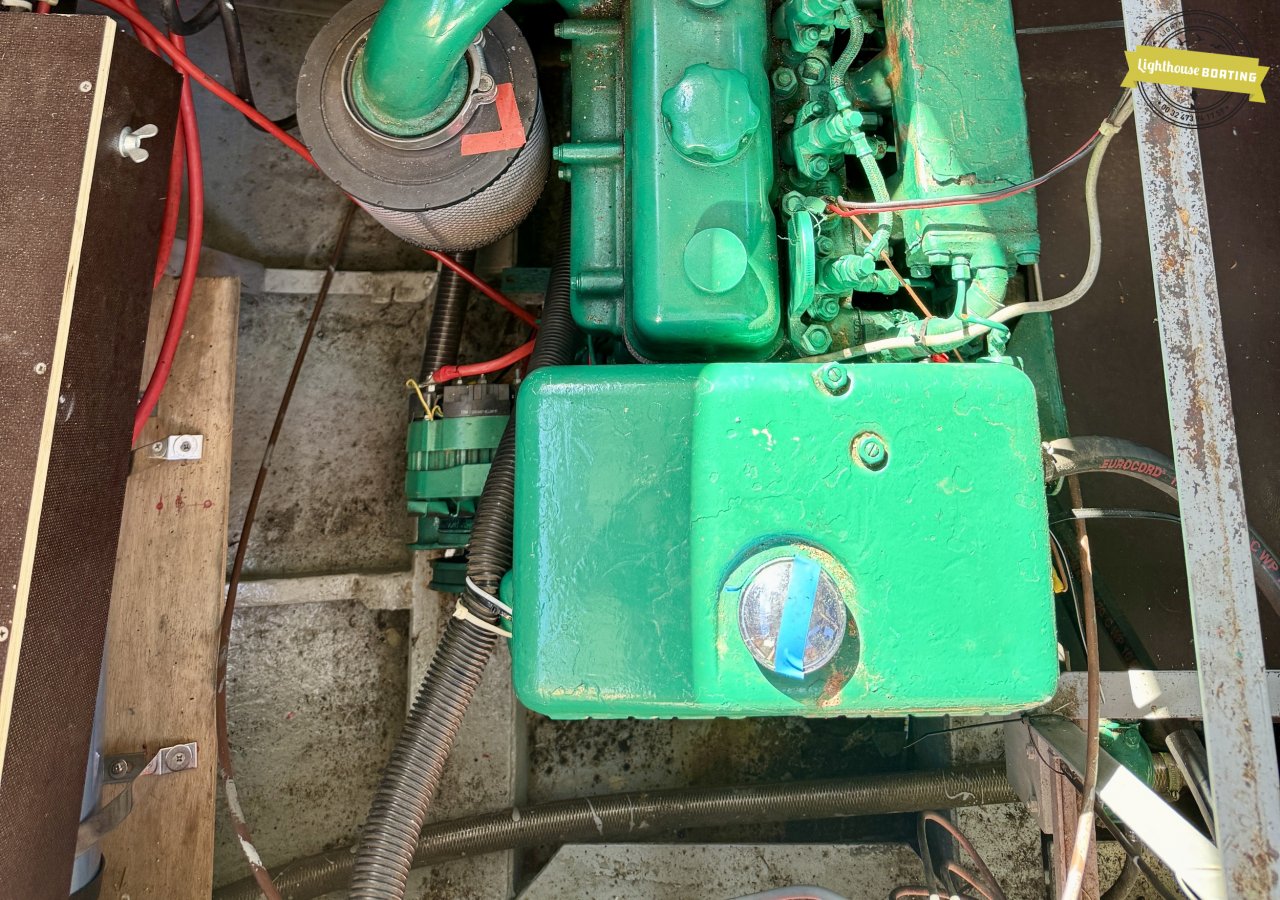

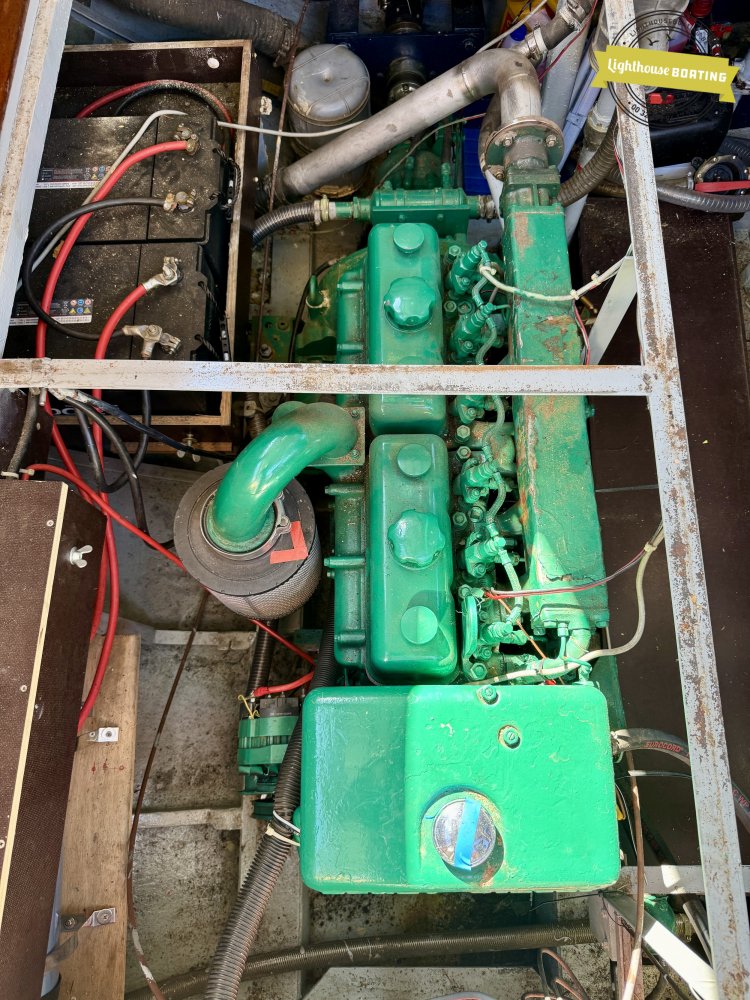

Type:
Inboard
Brand:
Volvo Penta
Model:
MD47
Serial number:
783
Year:
1962
Number of cylinders:
6
Power:
2x 85 hp
Hours counter:
Engine hours:
400
Fuel:
Diesel
Fuel consumption:
5 litre/hour
Gearbox:
Type 2nd engine:
Inboard
Brand of the 2nd engine:
Volvo Penta
Model of the 2nd engine:
MD47
Serial number of the 2nd engine:
784
Year of the 2nd engine:
1962
Number of cylinders in the 2nd engine:
6
Power of the 2nd engine:
85 hp
Hours counter on the 2nd engine:
Engine hours of the 2nd engine:
400
Fuel for the 2nd engine:
Diesel
Fuel consumption of the 2nd engine:
5 litre/hour
Starting type 2nd engine:
Electric
Transmission:
Shaft
Propulsion:
Propellor
Cooling system:
Indirect
Fuel tanks:
1
Total fuel tank(s) capacity:
1,100 Litre
Fuel tank material:
Steel
Max speed:
20 km/h
Cruising speed:
10 km/h
Fuel tank gauge:
Tachometer:
Oil pressure gauge:
Temperature gauge:
Bow thruster:
Electric
12V Vetus
12V Vetus
Battery:
4 x 220 Ah
Battery charger:
60 A
Victron Centaur 12v/60A
Victron Centaur 12v/60A
Alternator:
60 A
x2
x2
Battery monitor:
Inverter:
850 Watt
Victron inverter 850W/1600VA
Victron inverter 850W/1600VA
Voltmeter:
Shore power:
Shore power cable:
Voltage:
12V 220V
Comments:
2 additional 75L tanks, plastic, with red diesel for heating

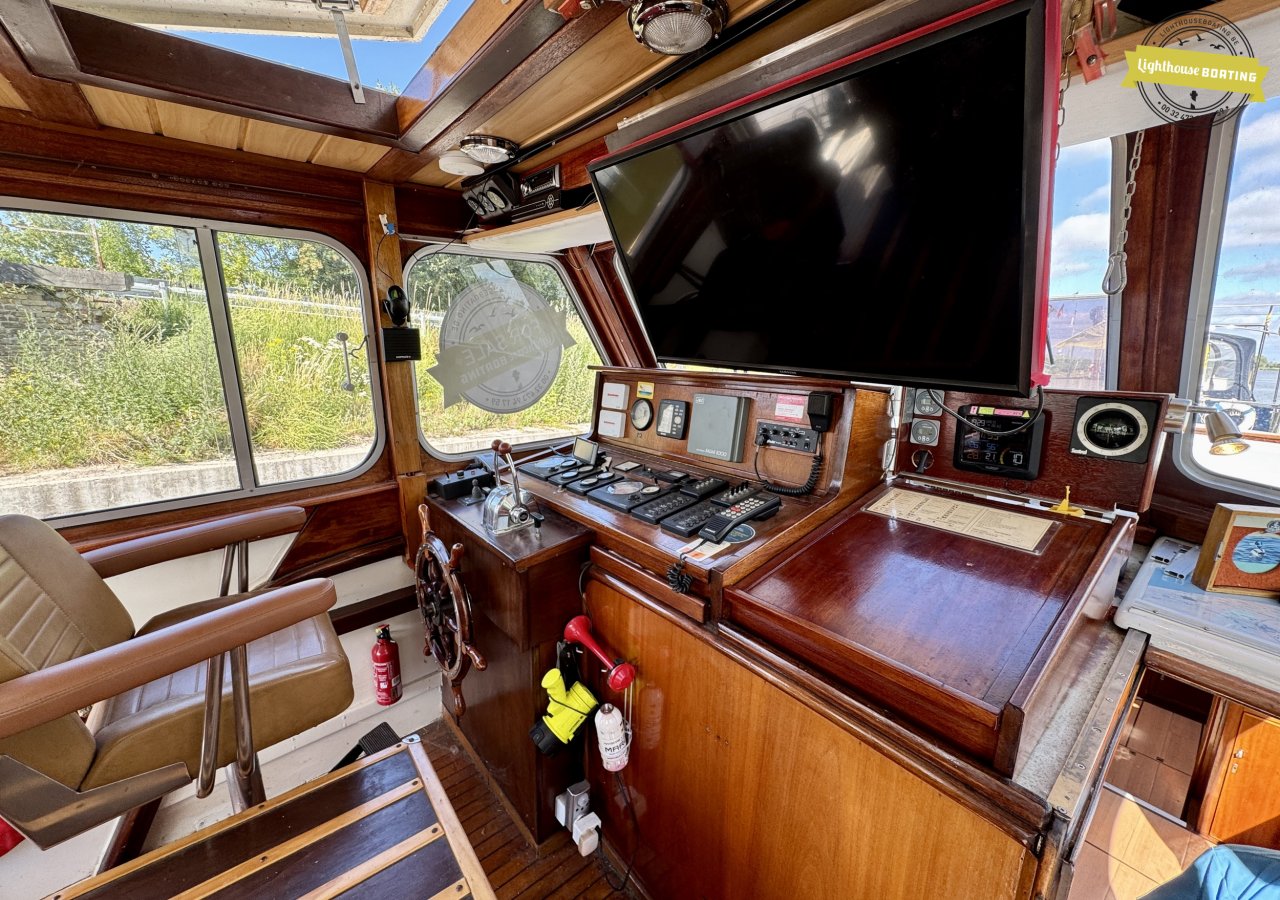

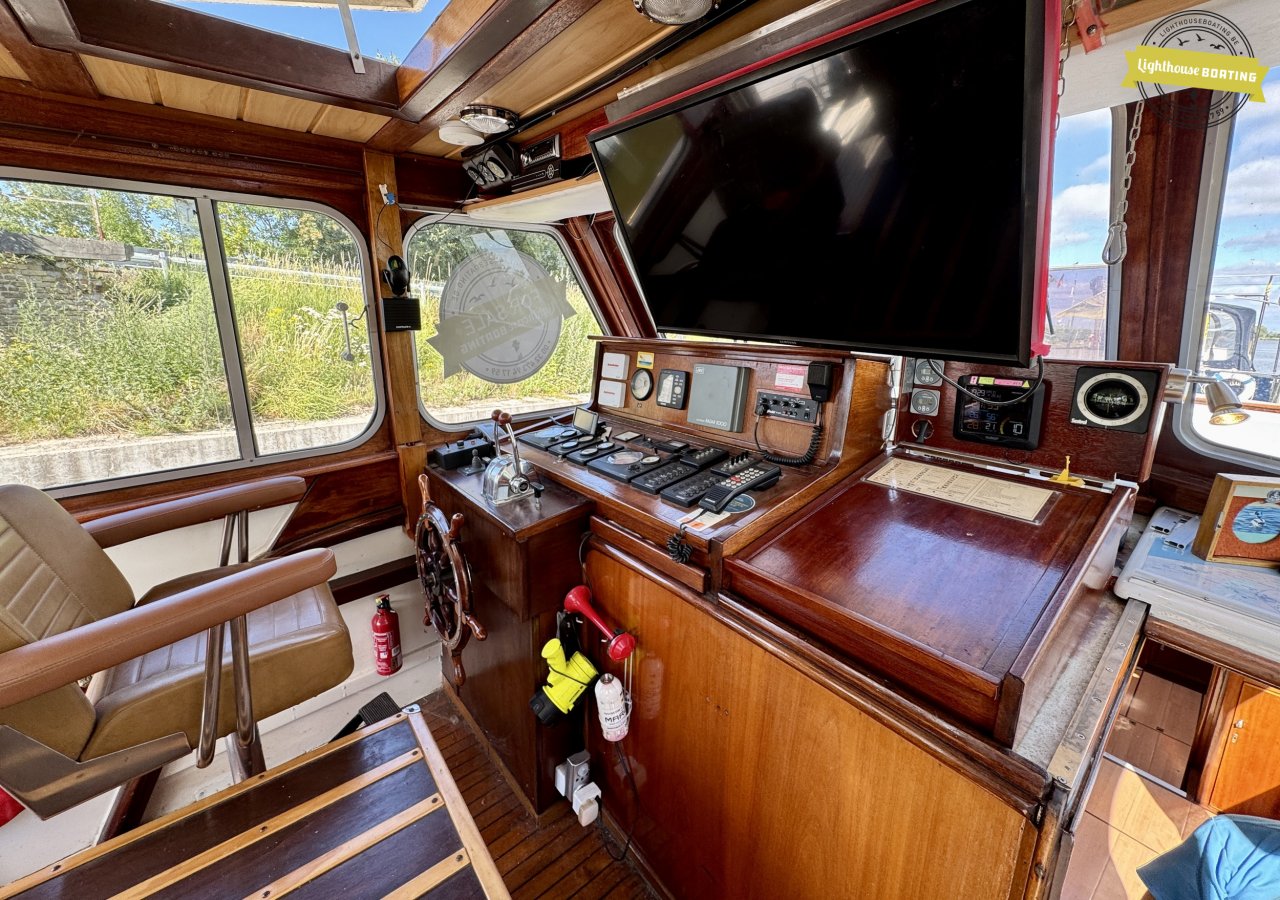

Navigation and electronics:
Compass:
Sestrel + Digital compass Authelm ST30
Depth gauge:
Authelm ST30
Navigation lights:
Charts, guides:
Rudder position indicator:
GPS:
Garmin 126/128
Radar:
Furuno 1000 JRC
VHF:
Shipmate RS8100
Deck Equipment:
Anchors & material:
3 x Galvanized
Anchor connection:
Chain
Anchor windlass:
Electric
Bimini:
Selfmade Bimini
Outdoor cushions:
Sea rails:
Swimming platform:
Swimming ladder:

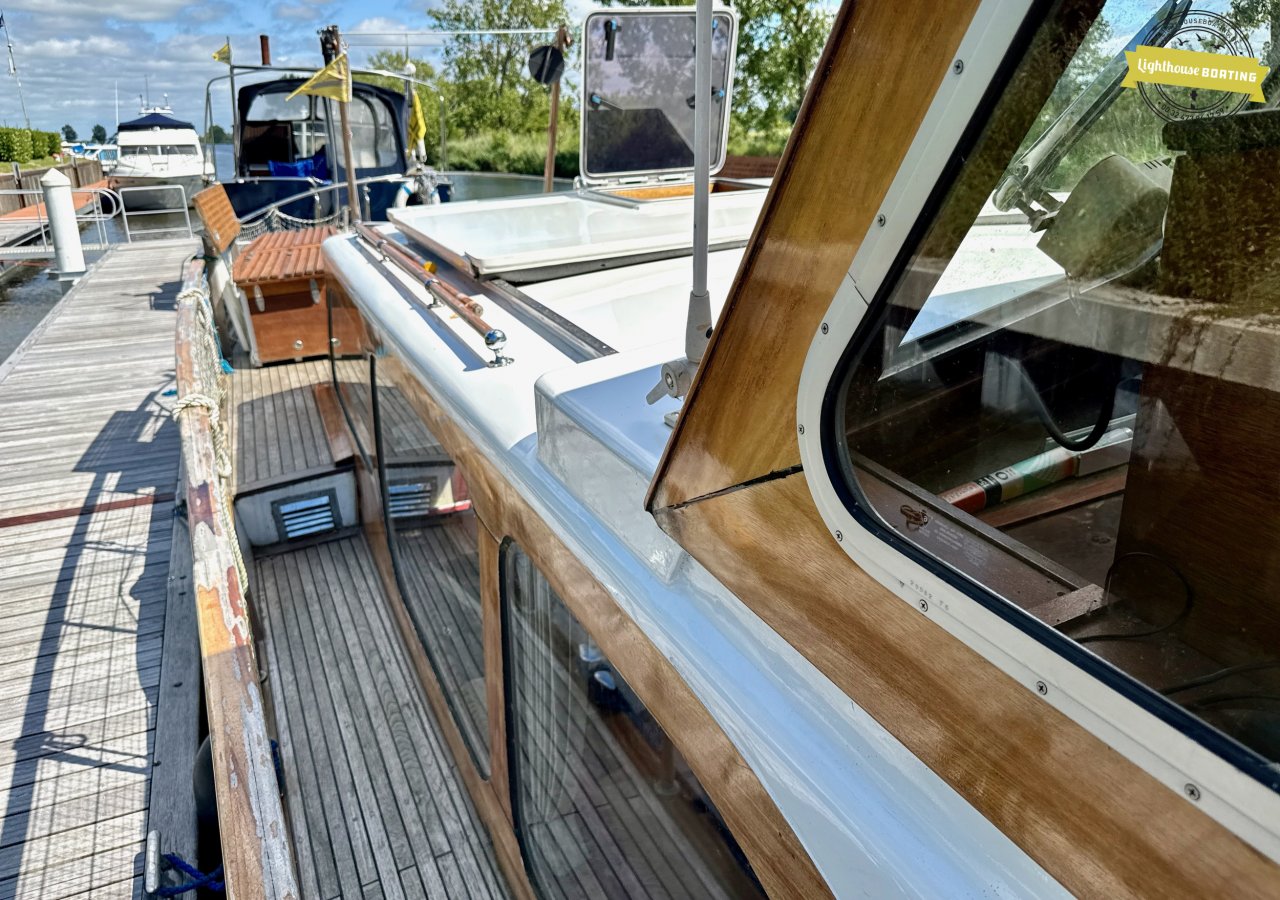

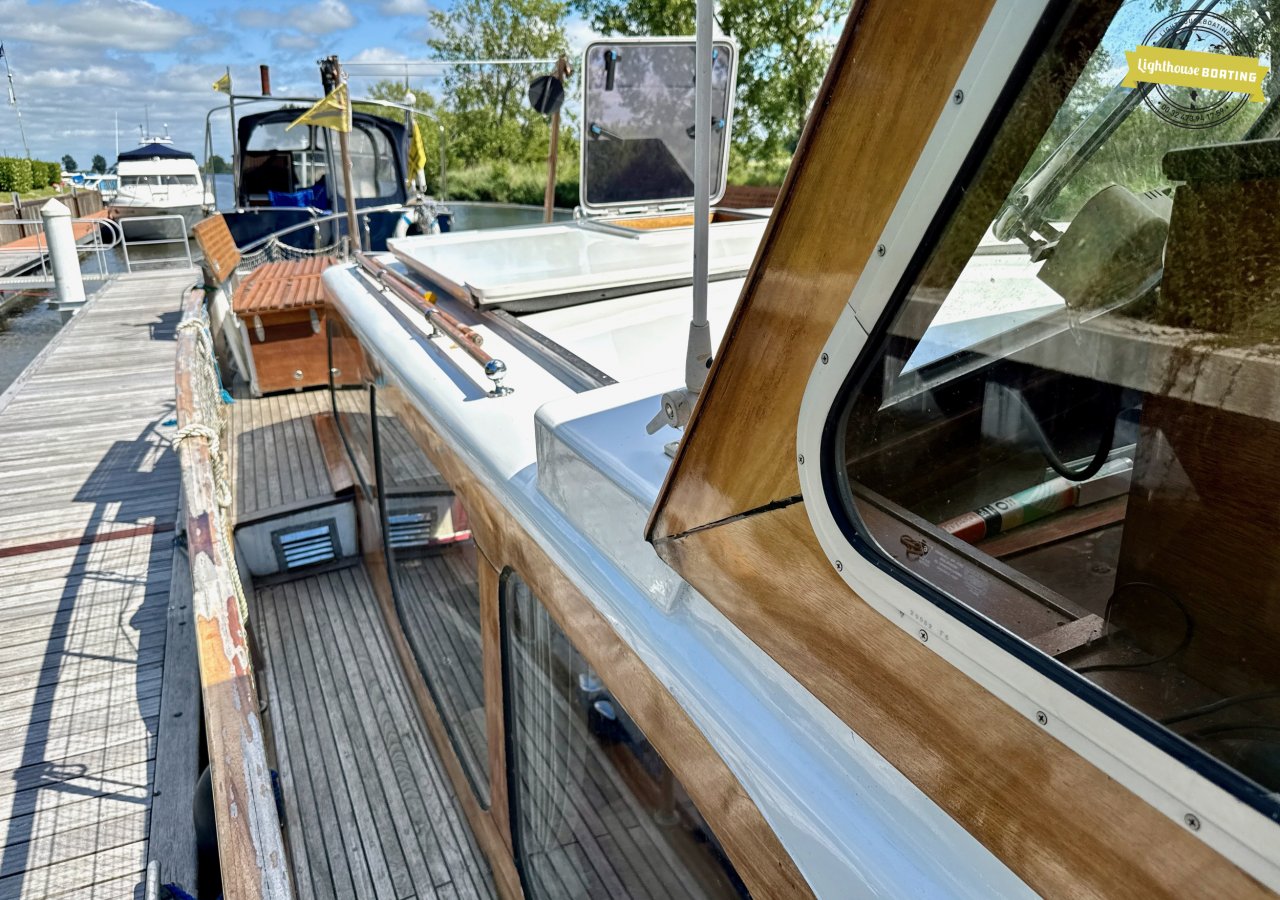

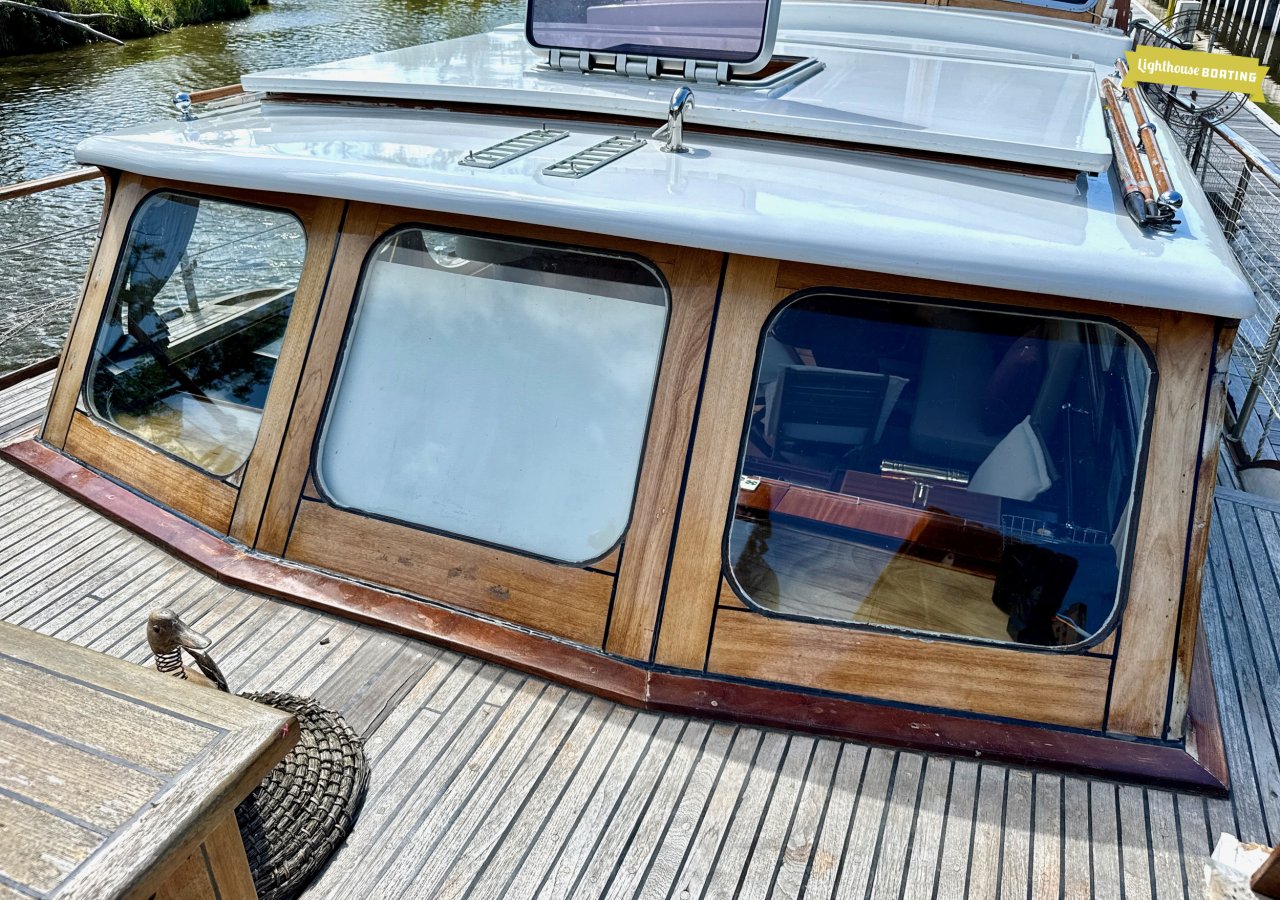

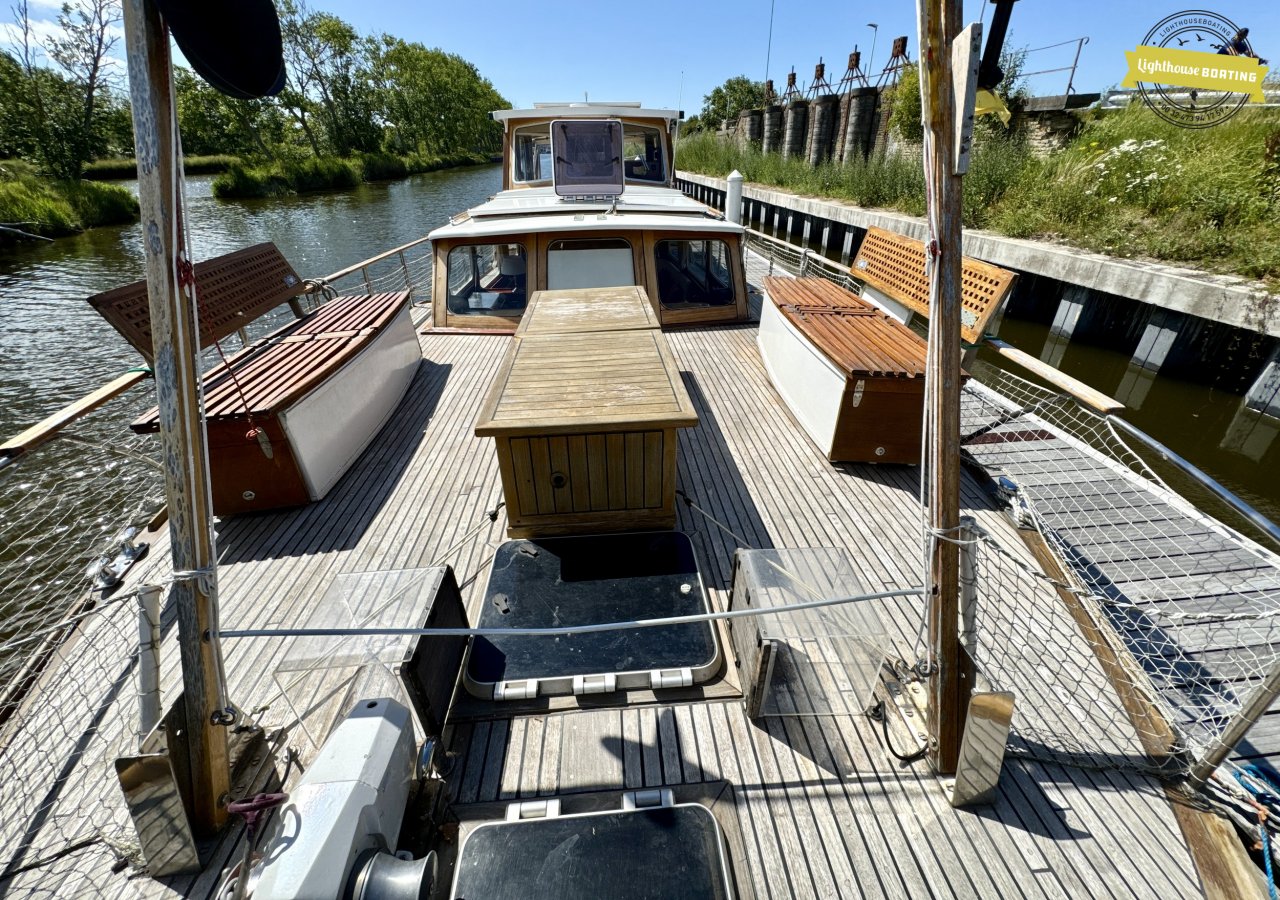

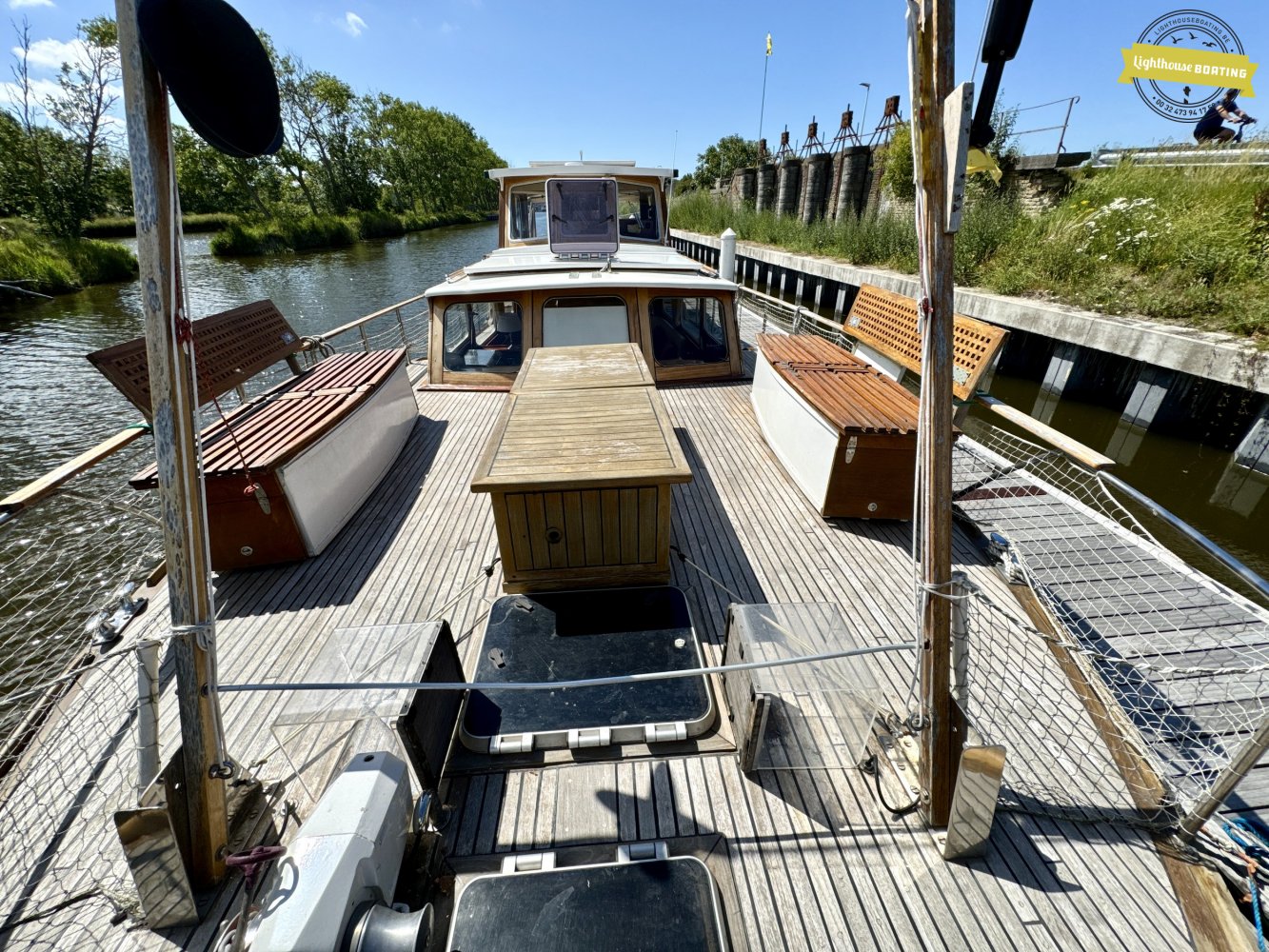

Teak deck:
Fenders, lines:
Cockpit table:
Comments:

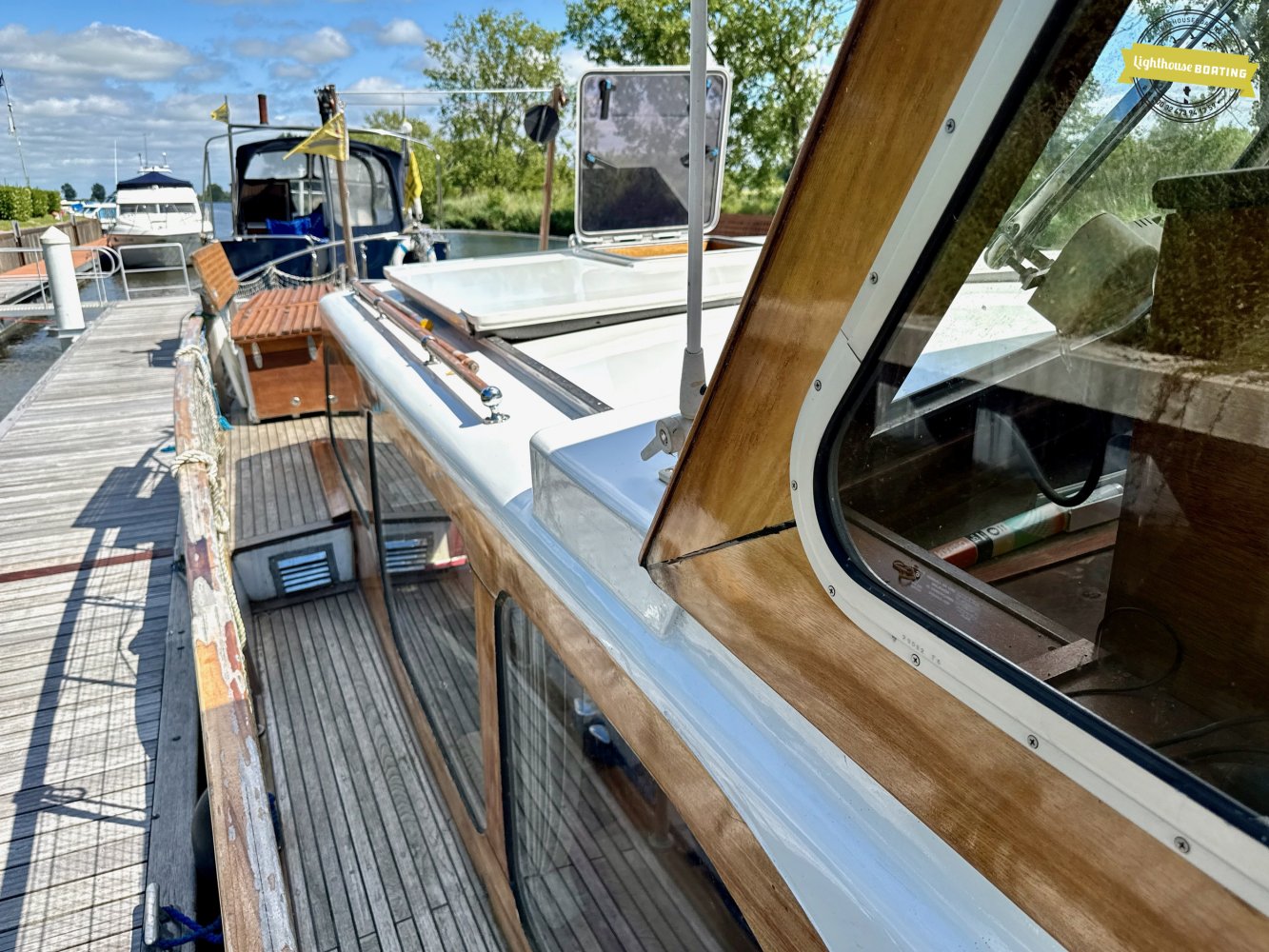

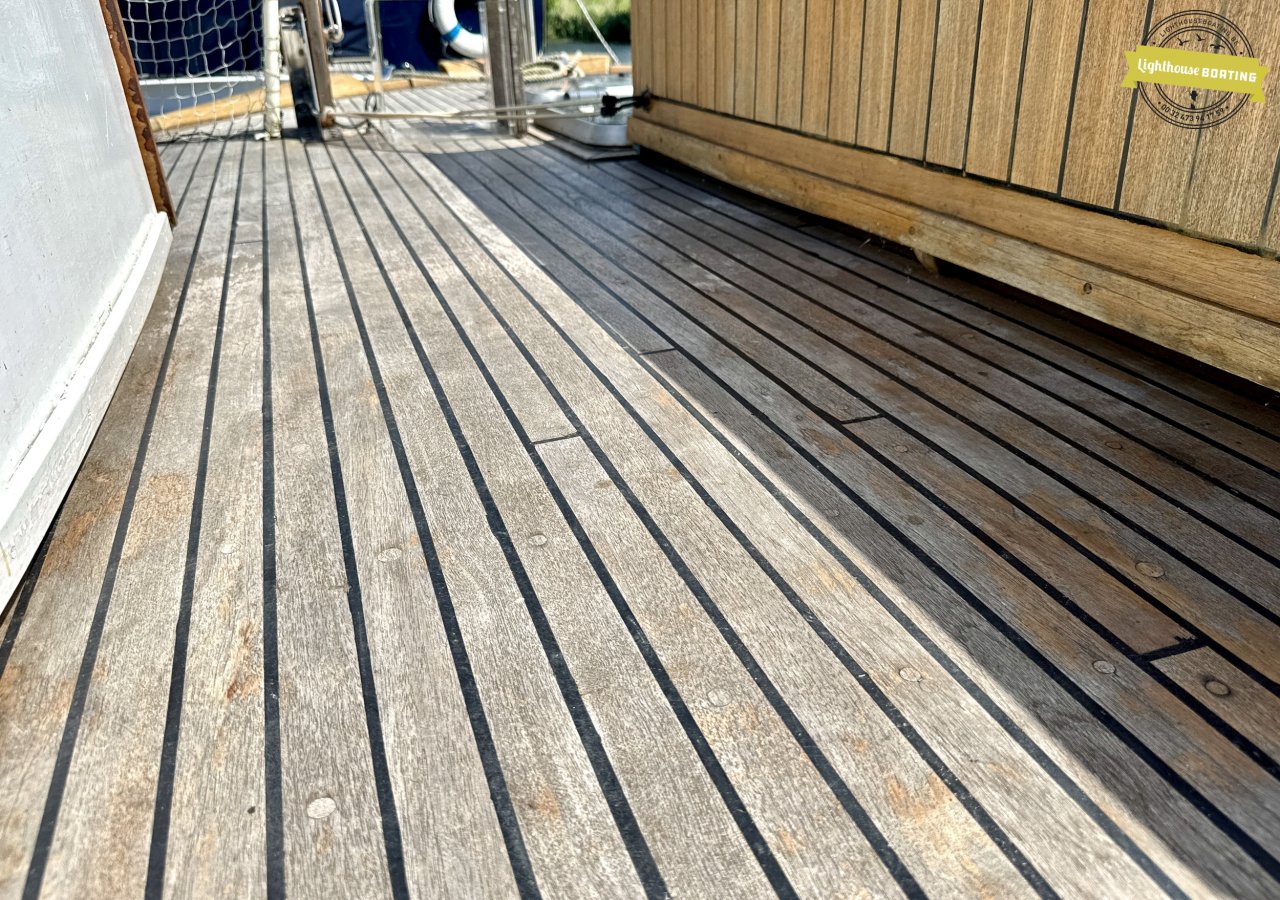

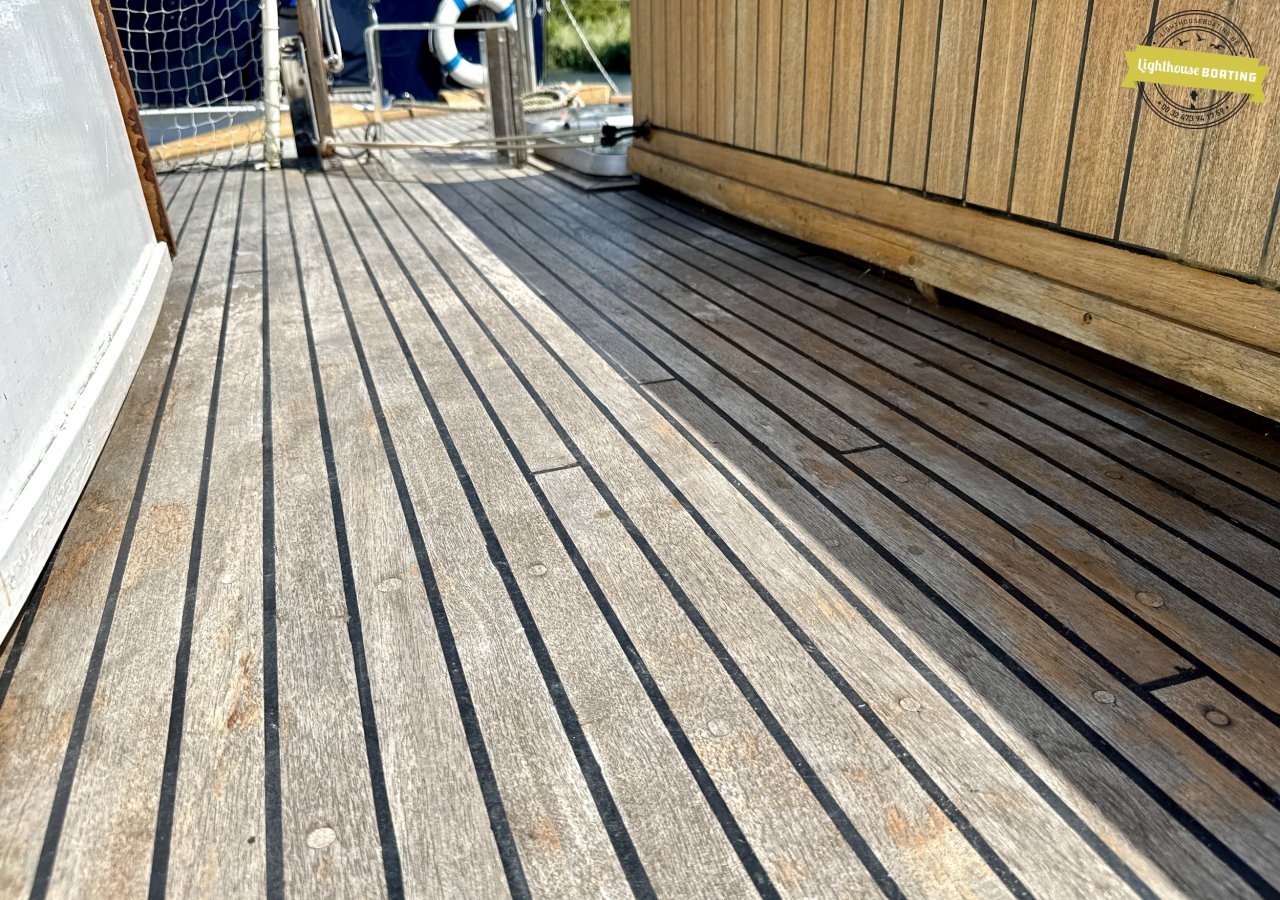

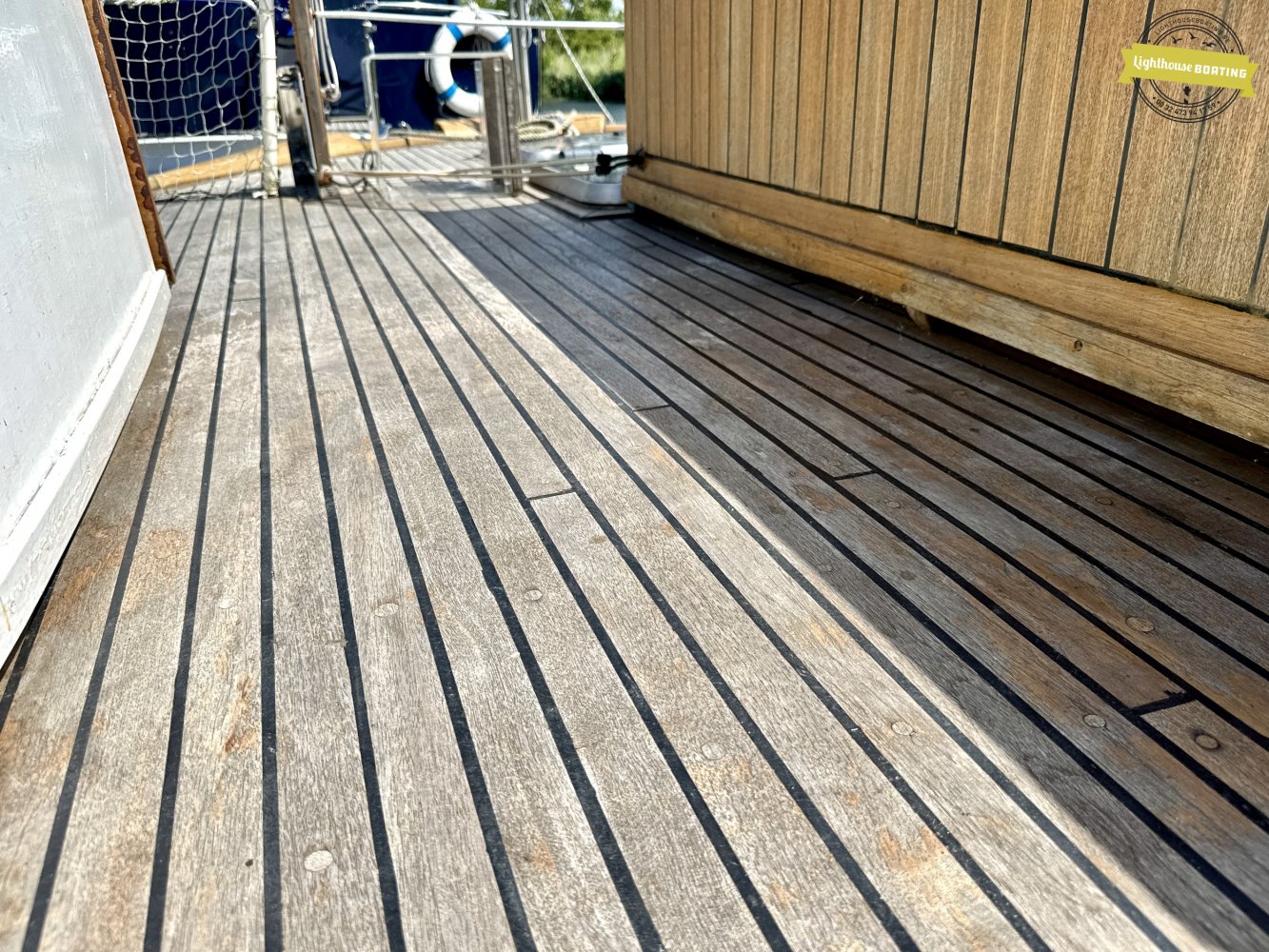

Teak Deck: completely renewed in 2017 - 2018. Old deck was removed - new steel plate of 5mm was welded underneath (treated with 3 layers of epoxy paint) - new Marine quality plywood fitted on top - New teak was fitted
Safety:
Life buoy:
Bilge pump:
Electric
Fire extinguisher:
Radar reflector:
Life jackets:
5
Gas bottle locker with drain:
